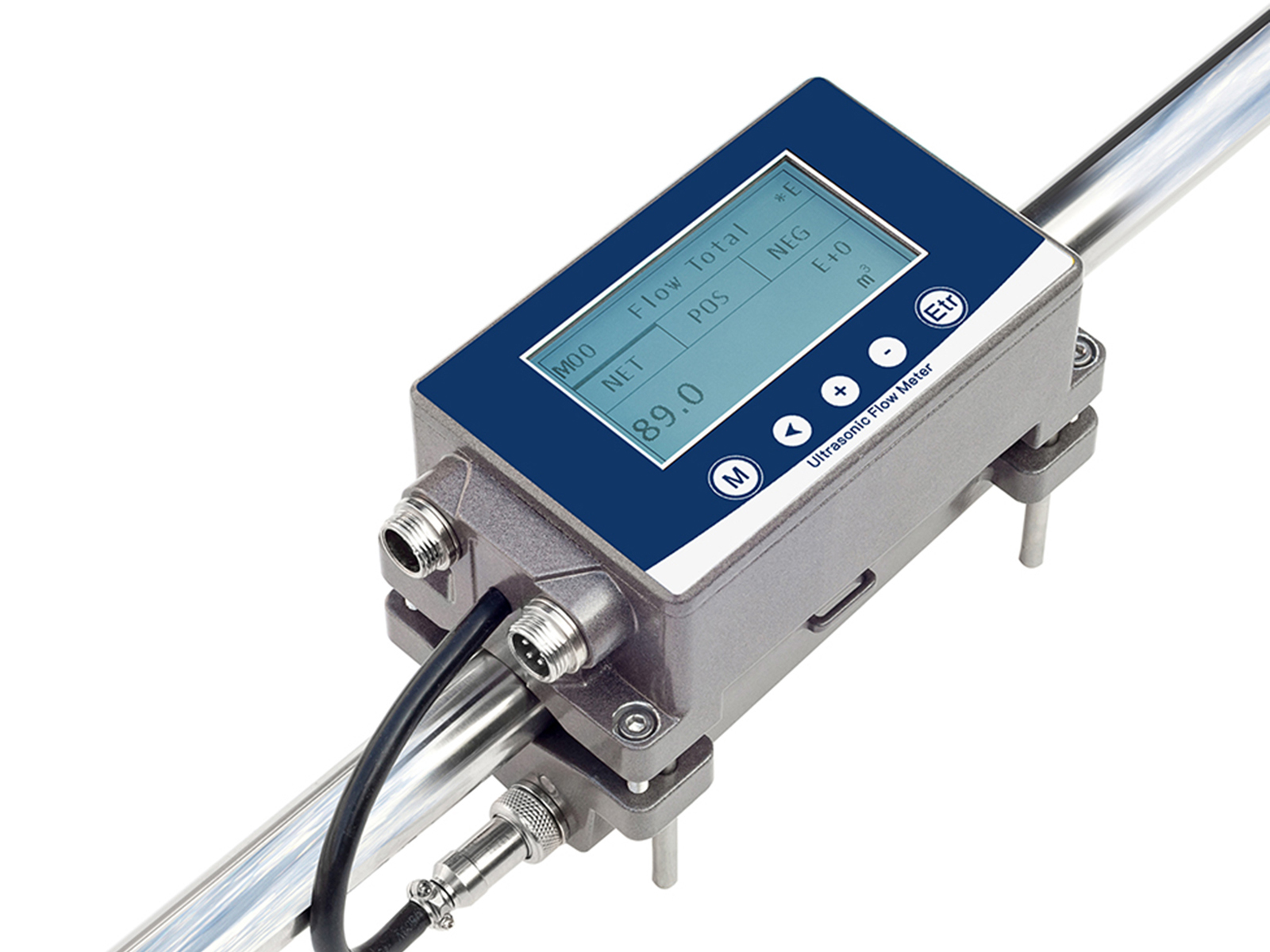

clamp type flow meter

clamp type flow meter

Email: sales01@cxflowmeter.com

whatsapp:008618049841995

Clamp flow meter is a common flow measurement instrument. Its working principle is based on the principle of differential pressure

measurement and has a variety of characteristics and application scenarios. The following is a detailed introduction to clamp flow meters:

working principle

Clamp flow meters calculate flow by measuring the change in pressure caused by fluid passing through a pipe. Two interconnected but

relatively independent pressure sensors are installed in the pipeline. The pressure difference between the two sensors is proportional to

the square of the velocity of the fluid passing through the pipeline. The specific working principle can be simplified to the following steps:

As fluid passes through a clamp-on flowmeter, the velocity of the fluid increases, causing the static pressure in the pipe to decrease.

The pressure sensor of the clamp flow meter can measure the pressure difference on both sides of the pipe.

Based on the relationship between fluid velocity and pressure difference, the flow rate of the fluid can be calculated.

Features

Non-contact measurement: The clamp flowmeter can measure without contacting the fluid in the pipeline and will not interfere with the

fluid.

High accuracy: Using ultrasonic technology, it can accurately measure the flow of fluid in the pipeline.

Fast response speed: It has a fast response speed and can quickly and accurately measure the volume changes of the fluid in the pipeline.

Easy to install: It can be installed on the pipeline. It is simple to install and easy to operate. There is no need to disconnect the pipeline and

it can be installed quickly.

Wide range of applications: It can be used to measure the flow of various media such as liquids, gases and steam, and has a wide range of

applications.

Application scenarios

Clamp flow meters are widely used in fluid measurement in various industries, including but not limited to:

Petrochemical industry: used for flow measurement and control in the transportation and production of petroleum, chemical products and

other fluids.

Electric power industry: used to measure cooling water flow and generator outlet water flow in hydropower stations, thermal power plants,

nuclear power plants and other places.

Pharmaceutical industry: used for flow measurement in the production process of pharmaceutical raw materials and intermediates to ensure

the precision and accuracy of the manufacturing process.

Food industry: used for metering and conveying liquids or powders, such as flow measurement in milk production processes.

Precautions

When selecting and using a clamp flowmeter, you need to pay attention to the following points:

Select the appropriate clamp flowmeter model according to the measuring medium and measuring range.

Make sure the installation position is correct and avoid installing it in pipeline bends, branches or valves to avoid affecting the measurement

accuracy.

Regularly maintain and calibrate the clamp flowmeter to ensure its measurement accuracy and stability.

In short, the clamp flow meter is a powerful and widely used flow measurement instrument that can meet various fluid measurement needs.

If you want to know more about the selection and quotation of clamp type flow meter, please feel free to consult CIXIFM winny:
