Circular/Spur Gear Flow Meter

首页 > Product > Circular/Spur Gear Flow Meter > M0.2SS-HT Fiber optic gear type flow meter
  • M0.2SS-HT Fiber optic gear type flow meter
  • M0.2SS-HT Fiber optic gear type flow meter
  • M0.2SS-HT Fiber optic gear type flow meter
  • M0.2SS-HT Fiber optic gear type flow meter
  • M0.2SS-HT Fiber optic gear type flow meter
  • M0.2SS-HT Fiber optic gear type flow meter

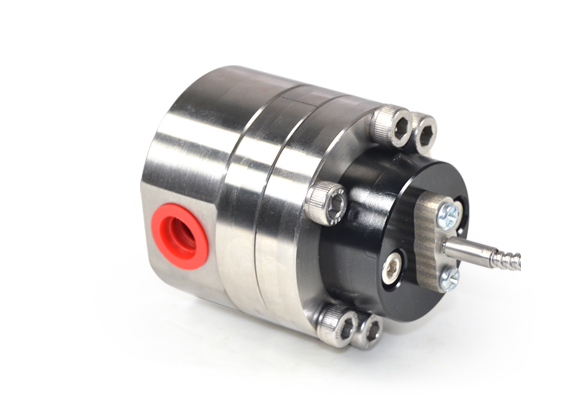

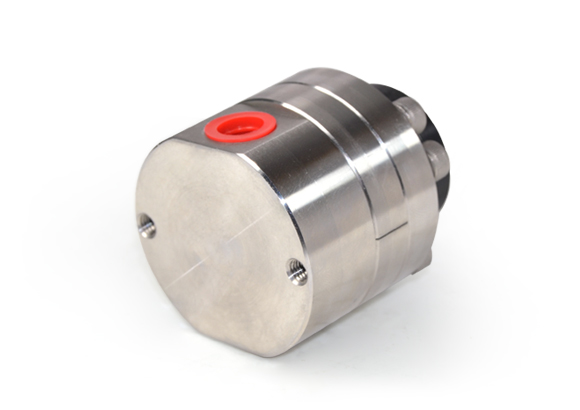

M0.2SS-HT Fiber optic gear type flow meter

Fiber optic gear type flow meter

Function introduction Function introduction

Fiber optic gear type flow meter

Fiber optic volumetric flowmeter, used for strong static  electricity and explosion-proof places,high temperature  testing, etc.,Customizable:  high temperature, high frequency, two-way measurement.

Optical fiber pulse output With CV8Sremote digital display.4-20mA analog output,Modbus RTU 485  communication, cumulative alarm, instantaneous alarm, etc.

1. Stainless steel series Except for the Hersman connector, the housing material  is stainless steel, gears SS316,the bearing (stainless steel, ceramic); 2. Aluminum alloy series Except for the Hersman connector, the housing material is  aluminum, gears SS316,the bearing is stainless steel;

Fiber optlic volumetric flawmeter, used for strong static electricity and  explosian-proof places,high temperature testing, etc.suitable for water- based spraying, coal mmining and other industries.Customizablle: high  temperature,high frequency, two-way measurement.Power supply: DC24v (amplifier) Measuring range: 1:40 Accuracy: 1~0.5 level Temperature: -40~250° CPressure resistance: 32barSignal: Optical fiber pulse output

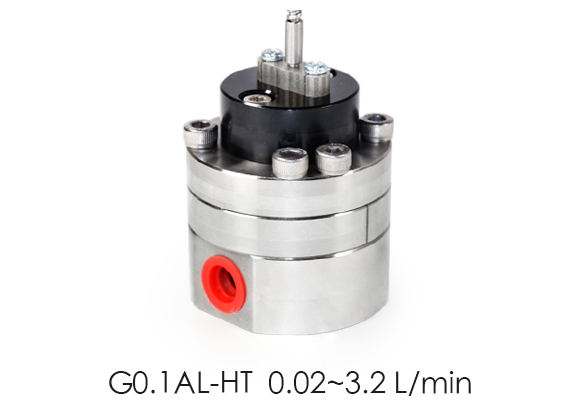

G0.015/G0.025/G0.04/G0.1/ G0.2/ G0.4 /G1.0 /G2.0
