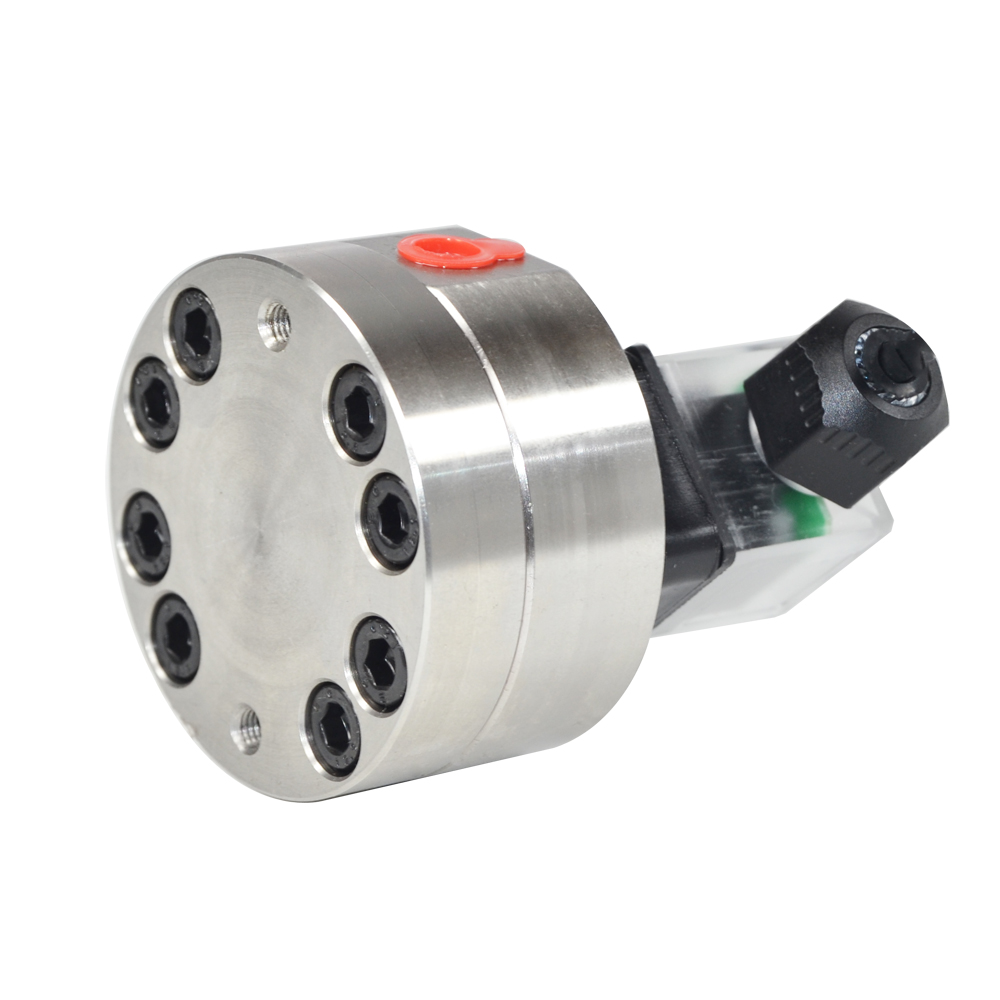

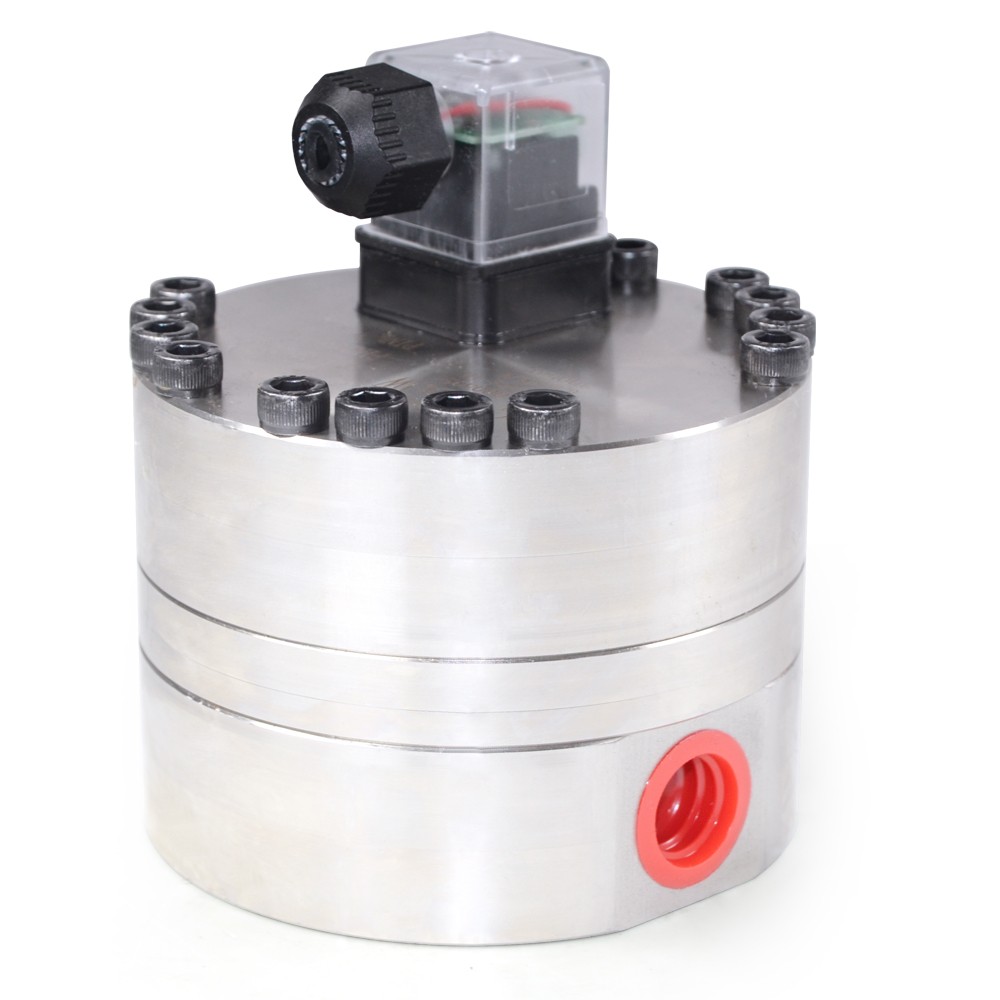

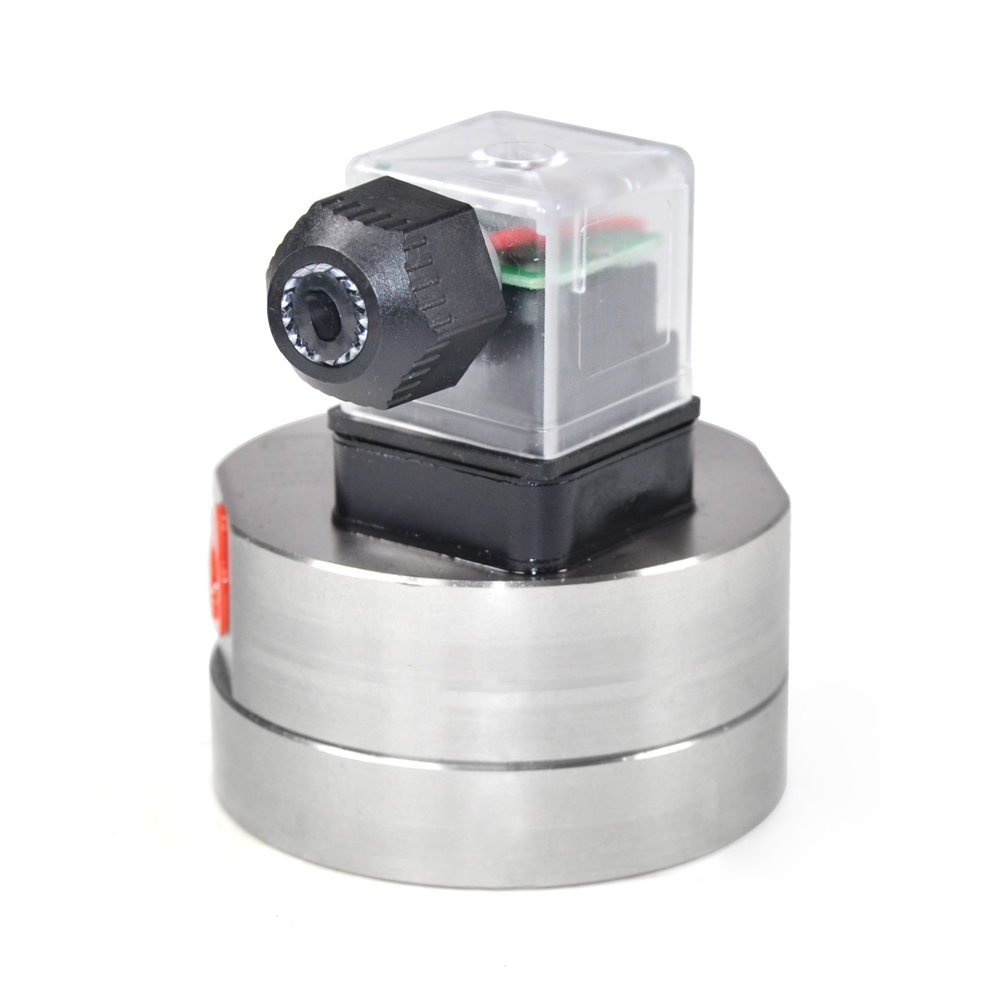

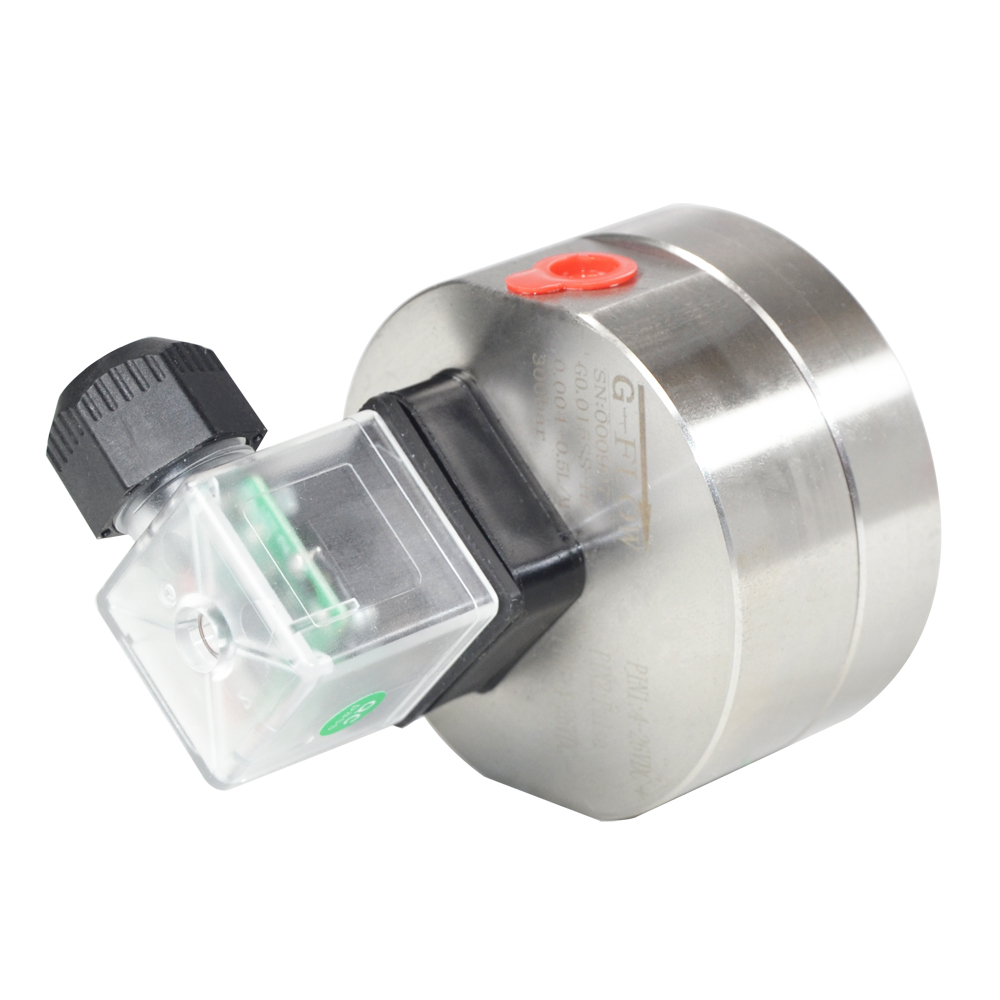

Stainless Steel Circular Gear Flow Meter

Stainless Steel Circular Gear Flow Meter

Function introduction Function introduction

Function of Circular Gear Flow Meter

1.The measuring gears are driven by the liquid flow on the principle of a gear motor.

2.The gears run without contact in the measuring chamber. The bearing elements are low-friction ball wlain bearings.

3.The movement of the gears is sampled without contact by means of two sensors

located in the cover. Between sensor compartment and rneasuring chamber is located a pressure-resistant, non-magnetic separator plate.

4.When the measuring mechanism rotates by one tooth pitch, the sensor emits a signal which corresponds to the geometrical tooth volume Vzg

5. The signal is converted into a square-wave signal by the preamplifier.

6.The two-channel sampling permits better resolution as well as recognition of the flow direction


Product Characteristics of of Circular Gear Flow Meter

1)Optimized for individual applications because the series have been rendered media-specific by means of di ffering clearances, bearing variants and materials.

2)Wide measuring ranges with sizes graduated to meet specific requirements.

3)Measurement independent of viscosity within the specified ranges.

4)Low pressure drop

5)High-response measurement

6)High working pressure

7)Low noise emission

8)High-precision measurement with outstanding reproducibility

9)Temperature-independent output signals over a wide temperature range

10)High degree of accuracy, even with low flow rates at the bottom end of the measuring range

11)High working reliability of the electronics

12)Easy to use terminal of the preamplifier

13)Working indication of the electronic

14)Sensor system and preamplifier in EMC-compatible design

15)Explosion-proof version available for all volume counters



Application of Circular Gear Flow Meter

Using condition

gear lubrication,fuel consumption monitor, robot glue dispenser, electrostatic coating equipment, hydraulic leak,diesel injection test bench, Unmanned Aerial Vehicle, two-component system, hydraulic pump tester, polyurethane foaming machine,chip cutting equipment, water treatment, twin-screw extruder, freon Measurement, hot melt dispensing, Gasoline Measurement, Odorant injection, Automotive Engineering and Design, Urethane Flow control etc.

Medium:

Grease, fuel, oil, gasoline, polyurethane,alcohol,water, glue, electrolyte,brake fluid, skydrol,gear oil,offset ink,wax,paint,polyol, isocyanate, adhesives, resin, silicon, clear lacquer, cavity waxes,solvent


PEEK bush special for corrosive condition.

Model

K   factor

Flow   range

Connection

Accuracy

Gear

Housing

CX-G0.025-P-SS

0.025ml/p

0.008~1   L/min

G1/8

0.5%

SS316L

SS316L

CX-G0.04-P-SS

0.04ml/p

0.02~2L/min

G1/4

0.5%

SS316L

SS316L

CX-G0.1-P-SS

0.1ml/p

0.04~4L/min

G3/8

0.5%

SS316L

SS316L

CX-G0.2-P-SS

0.245ml/p

0.16~8L/min

G3/8

0.5%

SS316L

SS316L

CX-G0.4-P-SS

0.4ml/p

0.2~20L/min

G1/2

0.5%

SS316L

SS316L

CX-G1-P-SS

1ml/p

0.4~40L/min

G1/2

0.5%

SS316L

SS316L

CX-G2-P-SS

2ml/p

1~60L/min

G3/4

0.5%

SS316L

SS316L

Ball bearing special for high speed, wide range condition and universal installation

Model

K   factor

Flow   range

Connection

Accuracy

Gear

Housing

CX-G0.025-B-SS

0.025ml/p

0.004~2L/min

G1/8

0.5%

SS316L

SS316L

CX-G0.04-B-SS

0.04ml/p

0.01~4L/min

G1/4

0.5%

SS316L

SS316L

CX-G0.1-   B -SS

0.1ml/p

0.02~8L/min

G3/8

0.5%

SS316L

SS316L

CX-G0.2-   B -SS

0.245ml/p

0.08~16L/min

G3/8

0.5%

SS316L

SS316L

CX-G0.4-   B -SS

0.4ml/p

0.1~40L/min

G1/2

0.5%

SS316L

SS316L

CX-G1-   B -SS

1ml/p

0.2~80L/min

G1/2

0.5%

SS316L

SS316L

CX-G2-   B -SS

2ml/p

0.5~120L/min

G3/4

0.5%

SS316L

SS316L

Material:Stainless steel SS316L

Power supply: 5-26VDC

Accuracy: 0.5%, 0.2%

Temperature: - 40 - 80 degrees (High Temperature Customization, pls Consult Engineer)

Pressure: 32BAR (High Voltage Customization, pls Consult Engineer)

Signal: square wave pulse, split display and output: current, RS485, RS232 Mudbus


Pls note: Customized for High temperature,high pressure, high frequency,bi-direction and special material for  Circular Gear Flow Meter.

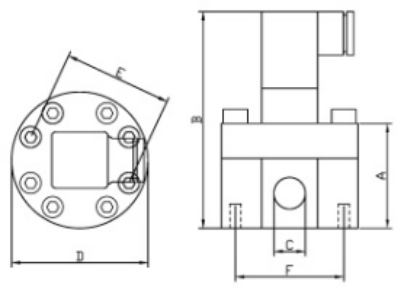

Dimension figure (MM)

G series stainless steel (G-SS)




A = body thickness

B = Total height of shape

C = inlet and outlet

D = outer diameter

E = assembly screw + thread hole center distance

F = mounting screw + thread hole center distance



Item

G0.015

G0.025

G0.04

G0.1

G0.2

G0.4

G1.0

G2.0

A

34

34

44

36

56

66

57

75

B

69

69

82

71

91

101

92

110

C

G1/8

G1/8

G1/8

G1/4

G3/8

G1/2

G1/2

G3/4

D

64

64

63

79

79

79

99

99

E

M6*49

M6*49

M6*49

M6*69

M6*69

M6*69

M6*90

M6*90

F

M5*49

M5*49

M5*49

M6*69

M6*69

M6*69

M6*90

M6*90
