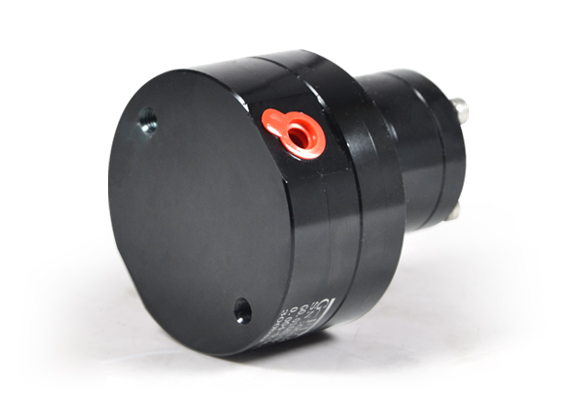

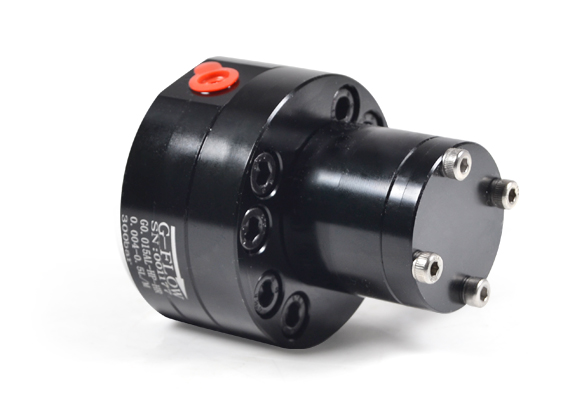

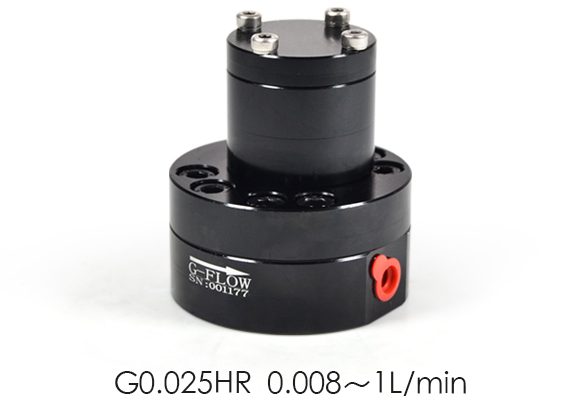

G0.025HR high resolution gear fiow meter

high resolution gear fiow meter

Function introduction Function introduction

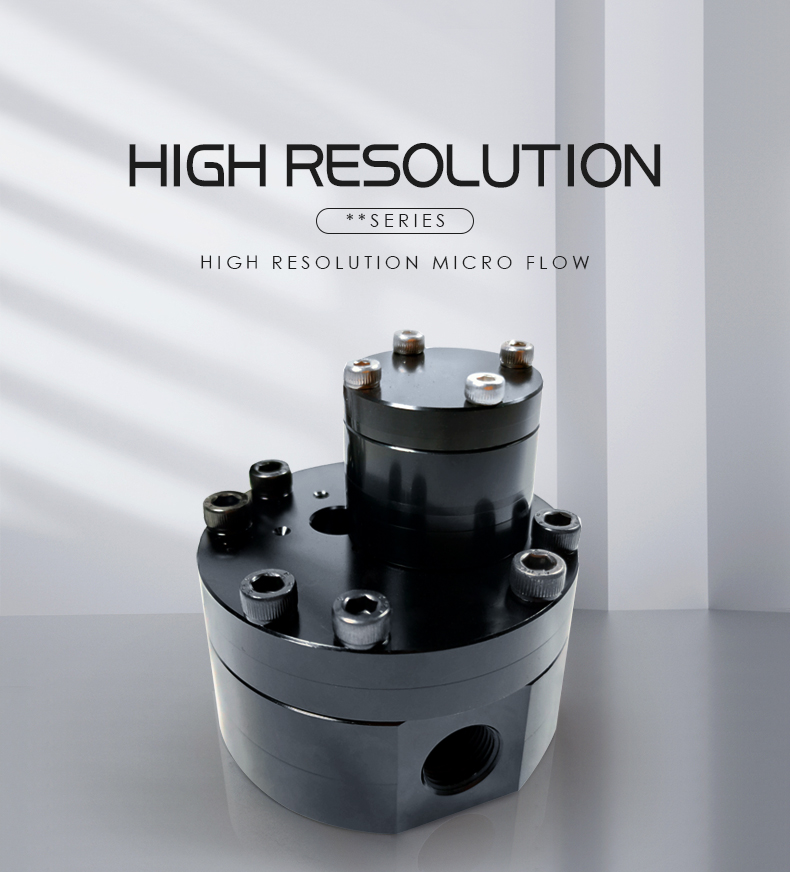

High resolution micro flow

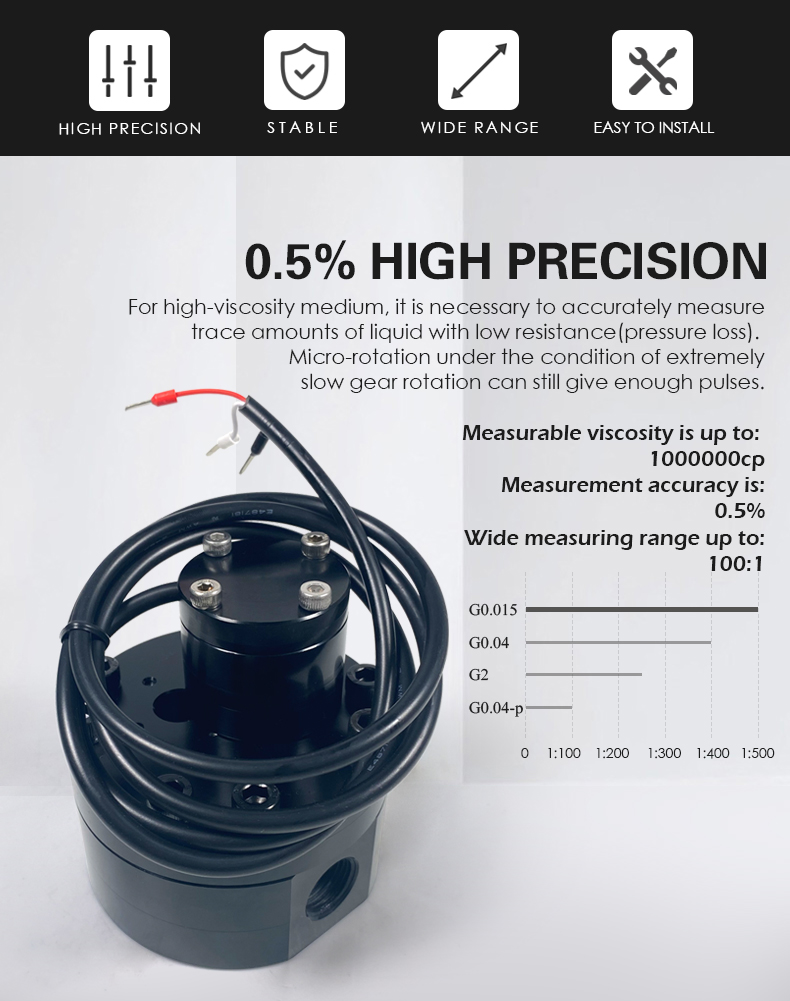

For high-viscosity medium, it is necessary to accurately measure trace amounts of liquid with low resistance(pressure loss).  Micro-rotation under the condition of extremely slow gear rotation can still give enough pulses.Measurable viscosity is up to:  1000000cp Measurement accuracy is: 0.5% Wide measuring range up to: 100:1

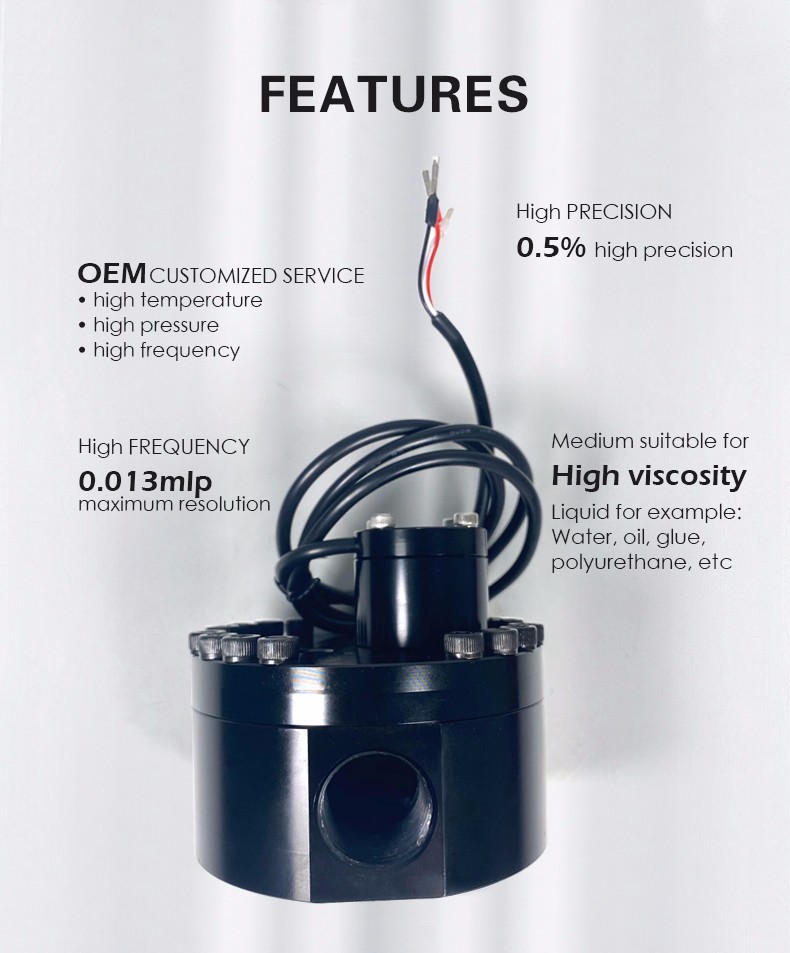

              CUSTOMIZED SERVICE • high temperature • high pressure • high frequency.High FREQUENCY 0.013mlp maximum resolution.Liquid for example: Water, oil, glue,  polyurethane, etc

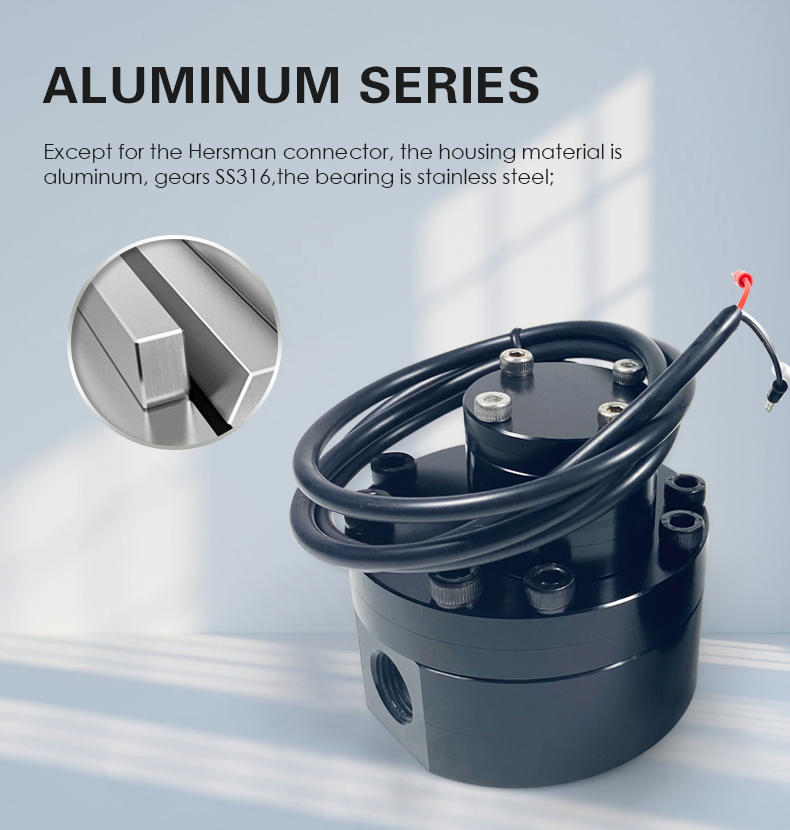

Except for the Hersman connector, the housing material is  aluminum, gears SS316,the bearing is stainless steel;

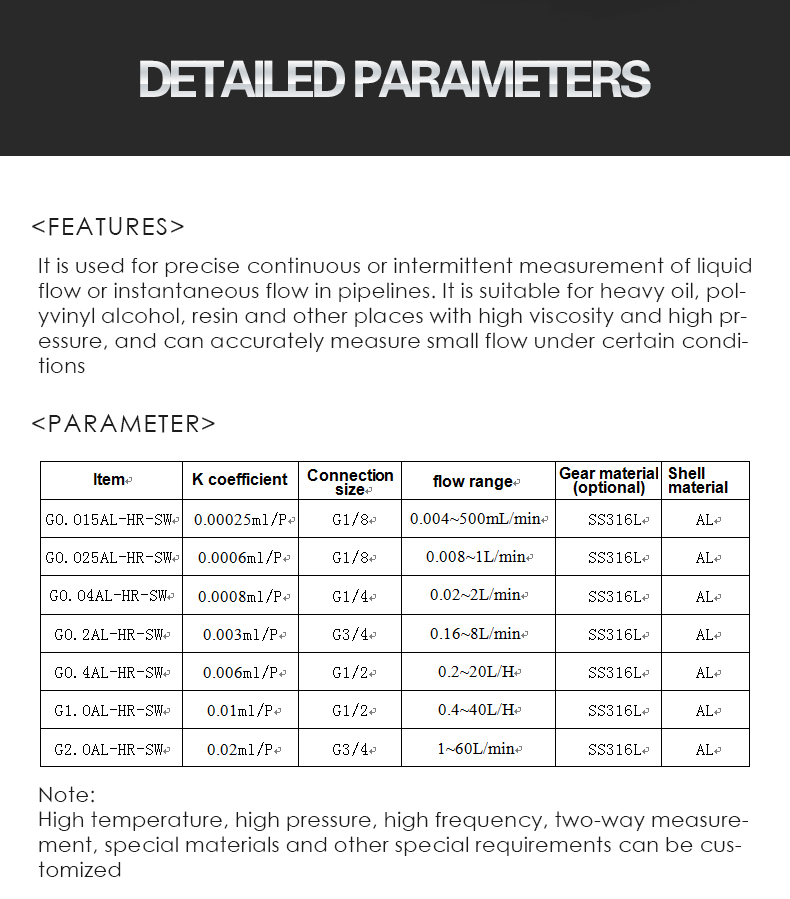

It is used for precise continuous or intermittent measurement of liquid flow or instantaneous flow in pipelines. It is suitable for heavy oil, pol- yvinyl alcohol, resin and other places with high viscosity and high pr- essure, and can accurately measure small flow under certain condi- tions./G0.015AL /G0.025AL G0.04AI/ G0.2AL/G0.4AL/G1.OAL/G2.OAL






Won lSO,CE, high-tech enterprise certification
