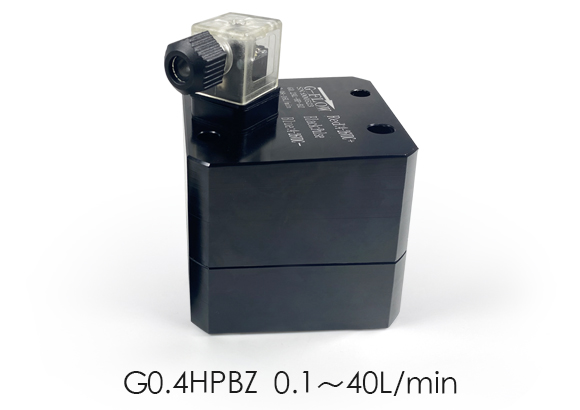

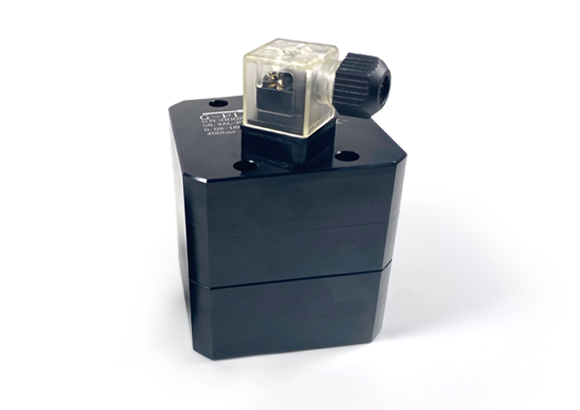

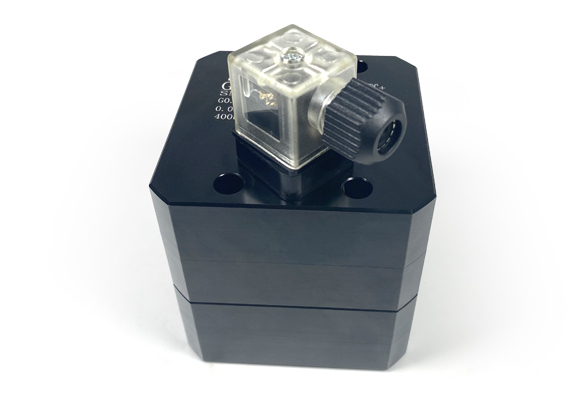

G0.4HPBZ Plate-mounted high pressure flow sensor circular gear flow meter

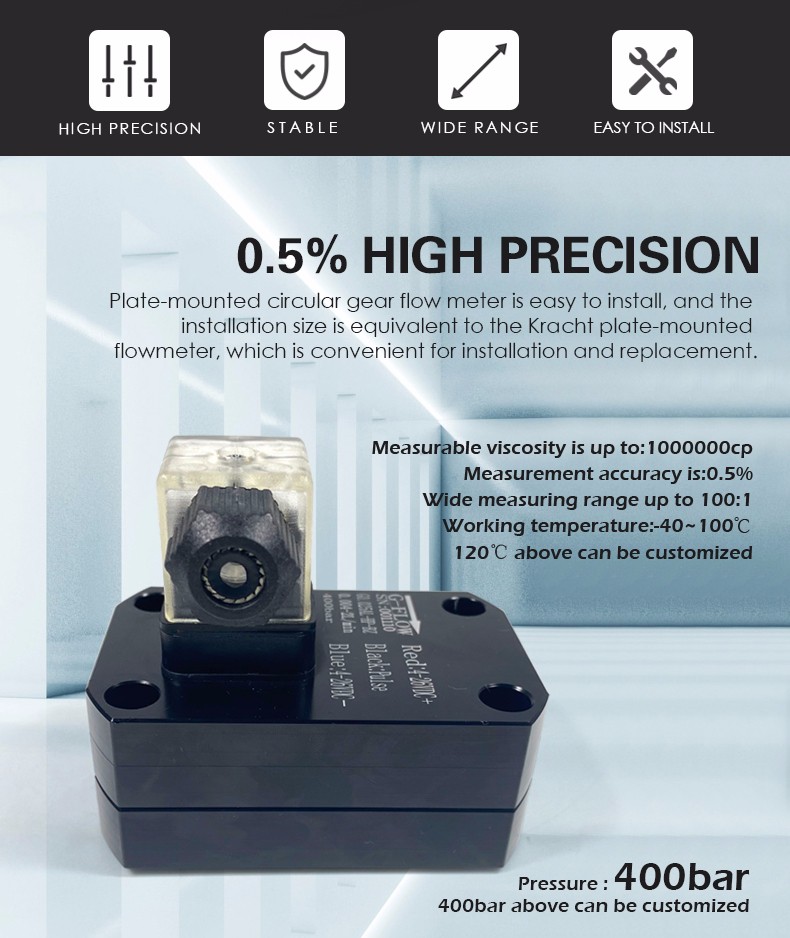

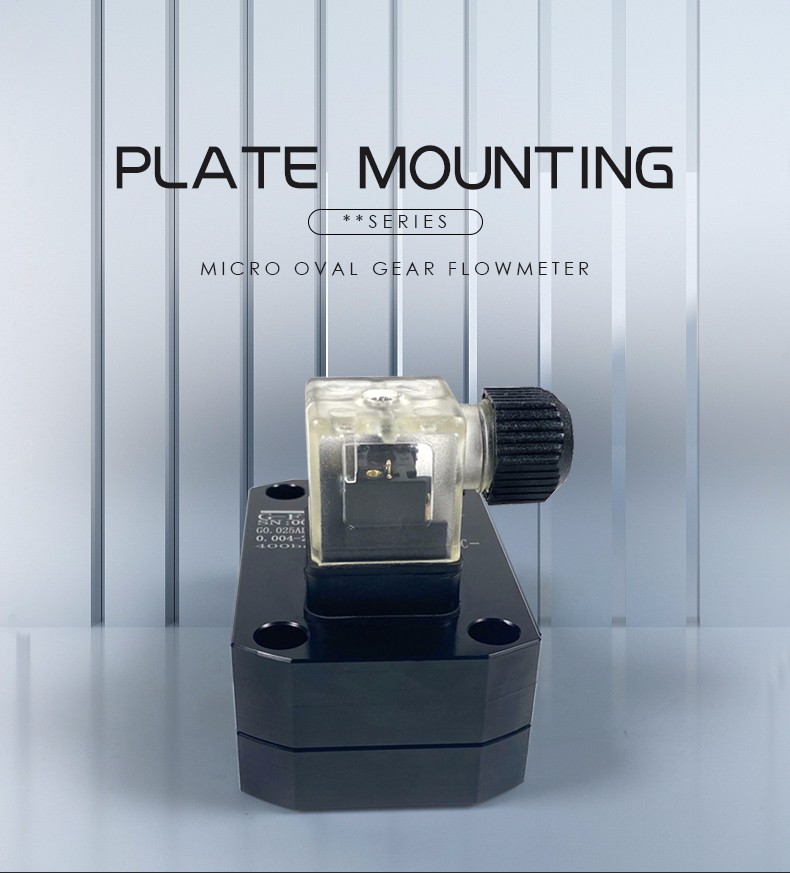

Plate-mounted circular gear flow meter

Function introduction Function introduction

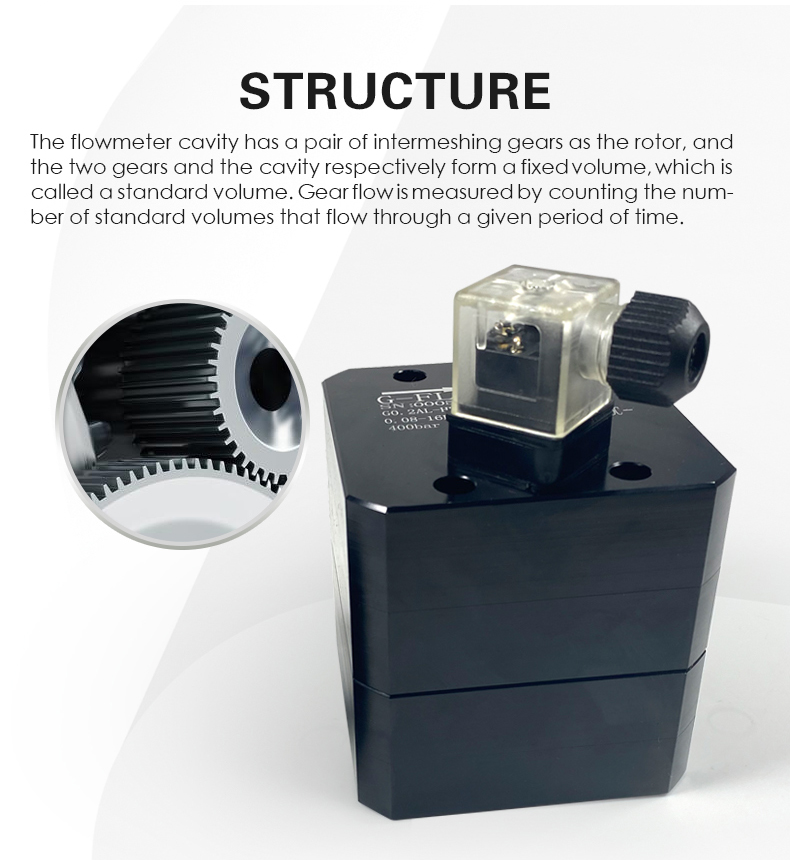

The flowmeter cavity has a pair of intermeshing gears as the rotor, and the two gears and the cavity respectively form a fixed volume, which is called a standard volume. Gear flow is measured by counting the number of standard volumes that flow through a given period of time.

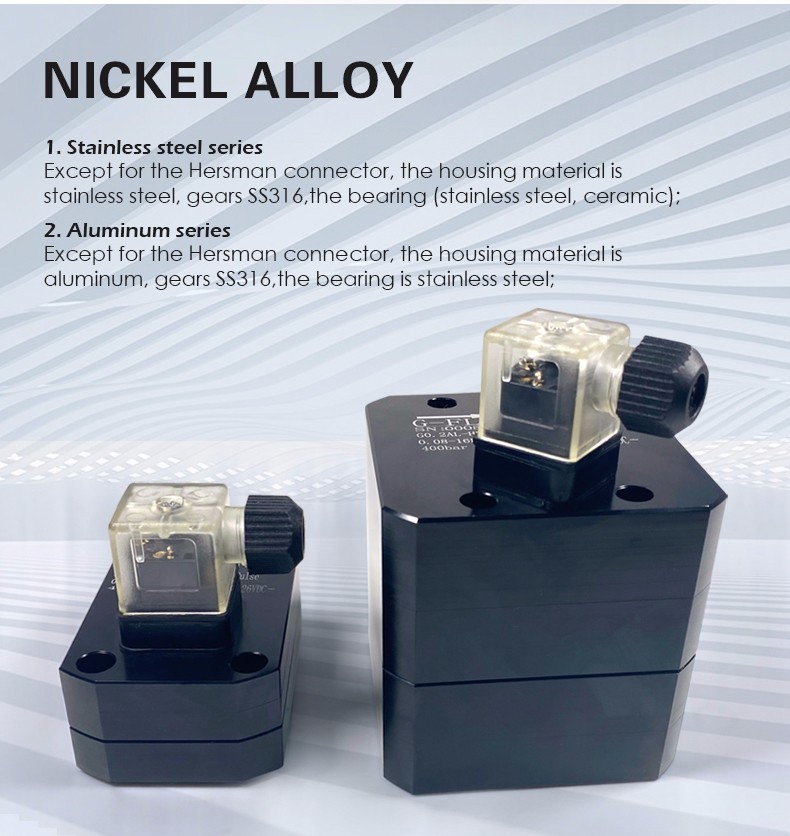

1. Stainless steel series Except for the Hersman connector, the housing material is stainless steel, gears SS316,the bearing (stainless steel, ceramic); 2. Aluminum series Except for the Hersman connector, the housing material is aluminum, gears SS316,the bearing is stainless steel;

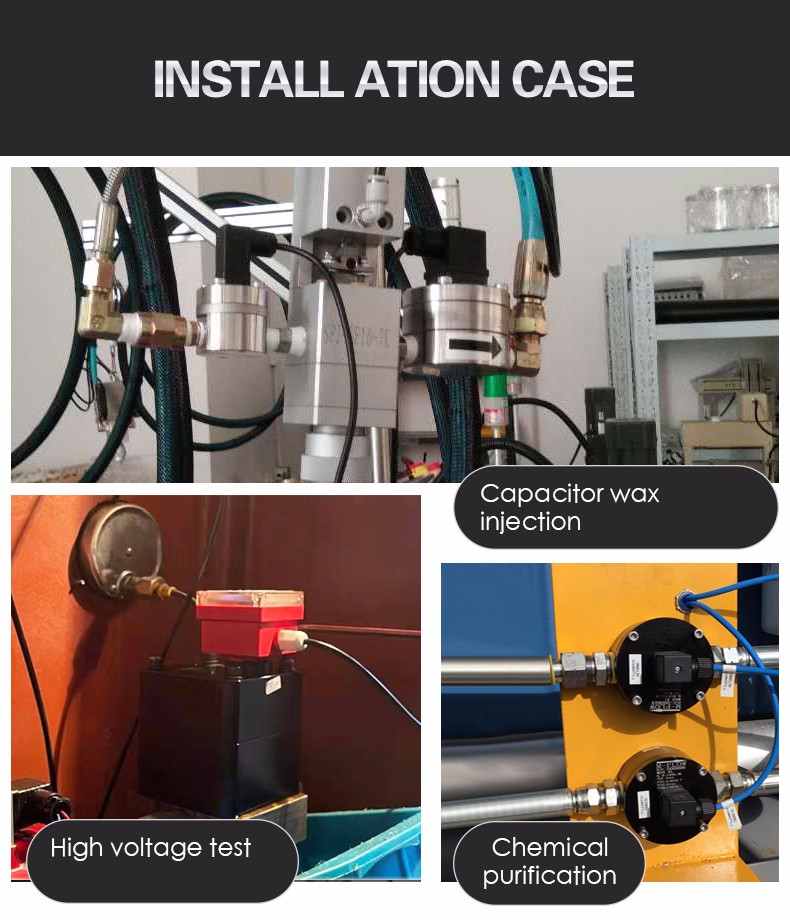

Capacitor wax injection High voltage test Chemical purification

Won lSO,CE, high-tech enterprise certification
