Circular/Spur Gear Flow Meter

首页 > Product > Circular/Spur Gear Flow Meter > G0.1 SSY Integrated display gear flow meter
  • G0.1 SSY Integrated display gear flow meter
  • G0.1 SSY Integrated display gear flow meter
  • G0.1 SSY Integrated display gear flow meter
  • G0.1 SSY Integrated display gear flow meter
  • G0.1 SSY Integrated display gear flow meter
  • G0.1 SSY Integrated display gear flow meter

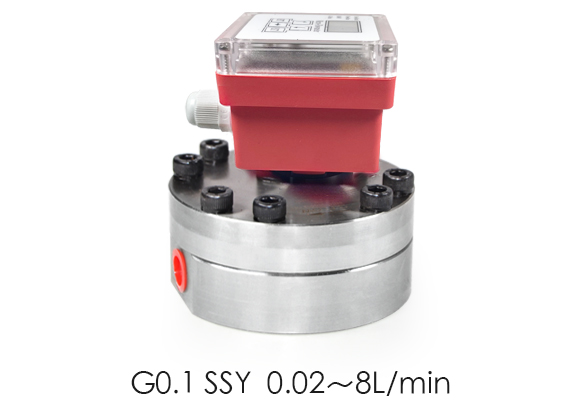

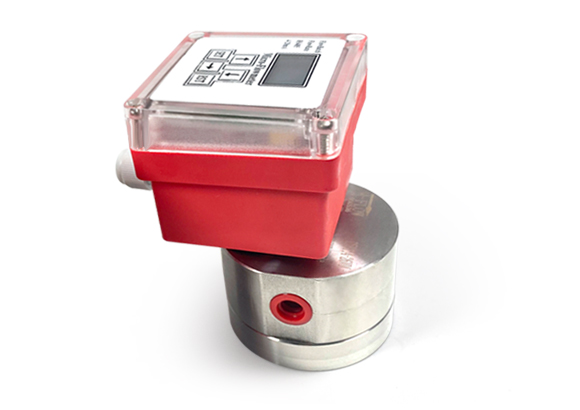

G0.1 SSY Integrated display gear flow meter

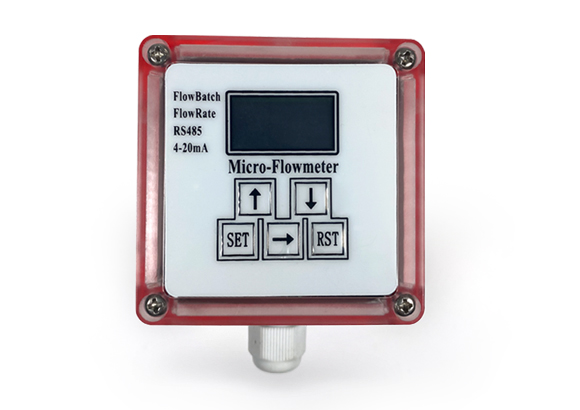

The integrated display can have various outputs: such as 4 -20ma analog output;modbus RTU 485 communication output;

cumulative alarm output;and instantaneous alarm output.


Function introduction Function introduction

Integrated display gear flow meterIntegrated display makes it easy to check the flow on the site.The integrated display can have various outputs: such as 4 -20ma analog output; modbus RTU 485 comm- unication output; cumulative alarm output; and instantaneous alarm output.The internal conductive structure is high quality copper.Stable perform- ance, oxidation resistance, excellent conductivity.Less transmission loss, less resistance, less heating and safer conduction

1. Stainless steel series Except for the Hersman connector, the housing material is stainless steel, gears SS316,the bearing (stainless steel, ceramic);2. Aluminum series Except for the Hersman connector, the housing material is aluminum, gears SS316,the bearing is stainless steel;

CX-G0.015 0.015ml/P G1/8 0.004~0.5L/min SS316L SS/AL CX-G0.025 0.025ml/P G1 /8 0.004~2L/min SS316L sS/AL CX-G0.04 0.04ml/P G1/4 0.01~4L/min SS316L sS/AL CX-G0.1 0.1ml/P G1/4 0.02~8L/min SS316L sS/AL G3 /8 Cx-G0.2 0.245ml/P 0.08~16L/min sS316L SS/AL c1/2 G1/2 CX-G0.4 0.4ml /P 0.1~40L/min SS316L ss/AL G3 /4 G1/2 CX-G1.0 1ml /P 0.2～8OL/min SS316L SS/AL G3/4 G1 CX-G2.0 2ml/P 0.5～120L/min SS316L SS/AL G3/4

CX-M2 0.055mLip1-200 mli:min G1/8 SSiAL PPS CX-M3 0.065mL/p 3~300 ml:min G1/8 SSI/AL 316L 3~300 ml/min CX-M5.2 0.11mL.ip G1/8 SSiAL PPS/316L 1~400 mli/min 2~800 mli/m in CX-M5.1 0.25mL/p G18 AL PPS/316L 5~800 ml:min 0.5mL/ip G1i4 orAL PPS CX-M6-AL 0.5~100 L/H G1/8 0.5mL.ip G1i4 or PPS/316L CX-M6-SS 0.5~100L/H G1/8 CX-M9-AL 2.5mL.ip 6~600 L/H G1/4 AL AL/PPS/316L CX-M9-sS 2.5mL/p 6~600 LiH G1/4 ss PPS/316L CX-M12-AL 8.5mL/ip 0.3~30 Limin G1/2 AL AL;PPS CX-M12-SS 13.5mL/p 0.3~30 Limin G1/2 ss PPS/316L CX-M125-AL 21.5mL/p 0.5~100L/min G1 AL AL/PPS CX-M25-SS 33.5mLip 0.5~100Lmin G1 ss PPS/316L
