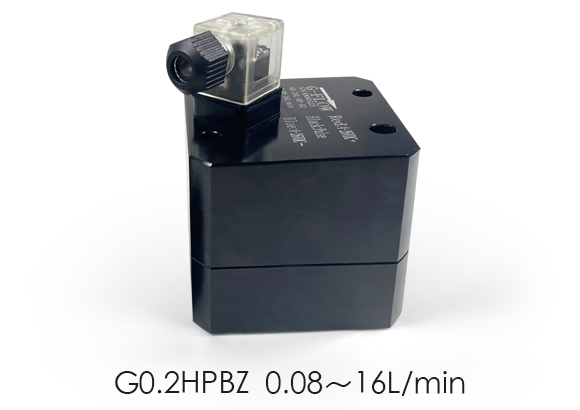

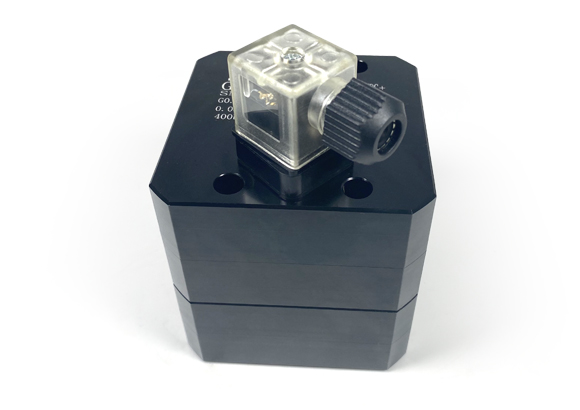

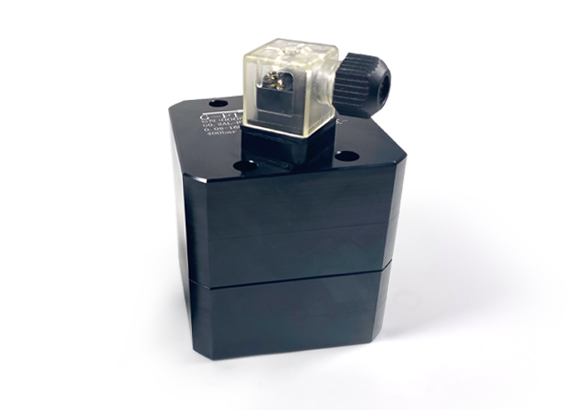

G0.2HPBZ Plate-mounted circular gear flow meter

Plate-mounted circular gear flow meter

Function introduction Function introduction


0.5% high precision Plate-mounted circular gear flow meter is easy to install, and the  installation size is equivalent to the Kracht plate-mounted  flowmeter, which is convenient for installation and replacement. Measurable viscosity is up to:1000000cp Measurement accuracy is:0.5% Wide measuring range up to 100:1 Working temperature:-40~100℃ 120℃ above can be customized Pressure : 400bar 400bar above can be customized

The flowmeter cavity has a pair of intermeshing gears as the rotor, and  the two gears and the cavity respectively form a fixed volume, which is called a standard volume. Gear flow is measured by counting the number of standard volumes that flow through a given period of time.

1. Stainless steel series Except for the Hersman connector, the housing material is  stainless steel, gears SS316,the bearing (stainless steel, ceramic); 2. Aluminum series Except for the Hersman connector, the housing material is  aluminum, gears SS316,the bearing is stainless steel;

Plate mounted high pressure positive displacement flowmeter is used for precise continuous or intermittent measurement of liquid flow or instantaneous flow in the pipeline. It is suitable for the use of high viscosity and high pressure such as heavy oil, polyvinyl alcohol and resin, and can accurately measure the small flow under high pressure conditions; the installation dimension can replace the Clarke VC series in Germany.  Gear material ltem K coefficient flow range (optional) Shell material G0.015-HP-BZ 0.015m1/P 0.004~0.5L/min G0.025-HP-BZ 0.025m1/P 0.004~2L/min Go.04-HP-BZ 0.04m1/P 0.01~4L/min G0.1-HP-BZ 0.1ml/P 0.02~8L/min GO.2-HP-BZ 0.245m1/P 0.08~16L/min SS316L G0.4-HP-BZ 0.4ml/P 0.1~40L/min /2205 AL G1.0-HP-BZ 1m1/P 0.2~54L/min /PPS G2.0-HP-BZ 2m1/P 0.5~108L/min G3.0-HP-BZ 3ml/P 1~162L/min G4.0-HP-BZ 4m1/P 2~216L/min G5.0-HP-BZ 5m1/P 2.5~270L/min G6.0-HP-BZ 6ml/P 3~324L/min





Capacitor wax injection High voltage test Chemical purification

Won lSO,CE, high-tech enterprise certification
