turbine flow meter working principle

Date:2023-12-06 source:Shanghai JSN Micro Flow Meter CO.,LTD

sales01@cxflowmeter.com


Working principle of turbine flow meter


Turbine flow meters determine flow by measuring the frequency of fluid passing through a rotating turbine. Its working principle

is based on the influence of inertia and fluid forces on the turbine as it rotates in the fluid. The specific process is as follows:


Fluid enters the turbine flowmeter and flows through the turbine blades.


The flow rate of the fluid causes the turbine to start rotating, and the rotation speed of the turbine is proportional to the flow rate

of the fluid.


A built-in sensor detects the rotational frequency of the turbine and converts it into a corresponding flow value.


A microprocessor or display unit processes the sensor data and displays or outputs the results to the control system.

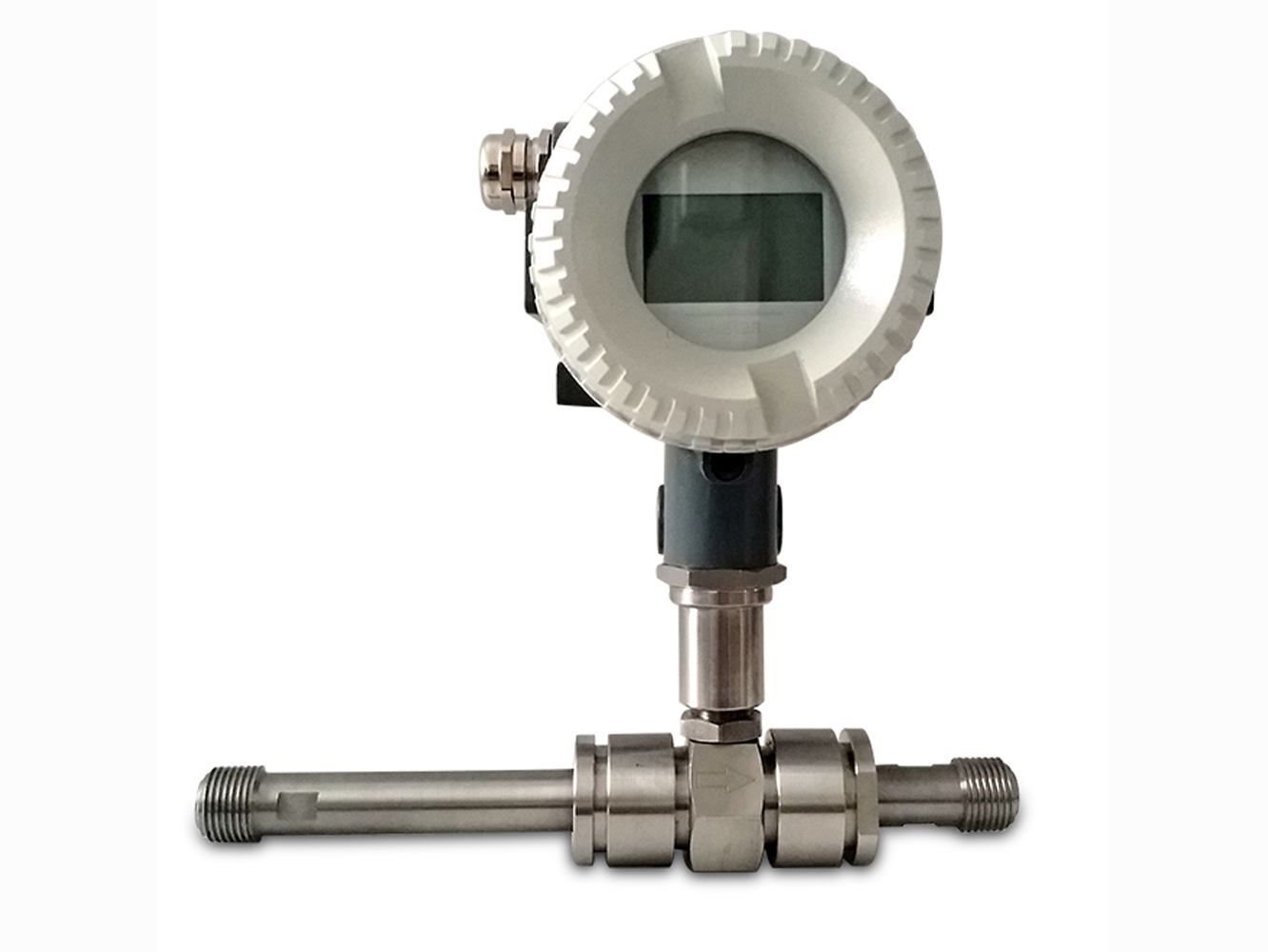

Liquid Turbine Flow Meter.jpg

Application areas of turbine flow meters


Turbine flow meters have a wide range of applications in many fields, such as:


Industrial process control: In chemical, pharmaceutical, food processing and other industries, turbine flow meters can be used to

monitor and control the flow of liquids or gases to ensure the stability and quality of the production process.


Energy management: Turbine flow meters can measure the flow of fluids in heating and cooling systems, helping to optimize

energy use and achieve energy conservation and emission reduction.


Water supply and drainage systems: In the field of municipal water supply and sewage treatment, turbine flow meters are used to

monitor water supply and drainage flow to ensure normal operation of the system.


Automobile industry: In the automobile manufacturing process, turbine flowmeters can be used to measure the flow of liquids such

as fuel and coolant to ensure normal engine operation.


As a reliable flow measurement technology, turbine flowmeter has a simple principle but a wide range of applications.

By understanding the working principle and structure of turbine flowmeters, users can better choose equipment that suits

their needs and give full play to their measurement and control functions in various fields.


If you want to know more about turbine flow meter selection information and quotation,

please contact CIXIFM winny: sales01@cxflowmeter.com
