基深微小流量计/JSN Micro Flow Meter
Email: Michael@microflowmeter.com, mobile(whatsapp):86-18930647859
基深微小流量计主要特点/features of JSN Micro Flow Meter
1. 超宽量程比。
2. 高精度，适用于低粘度，低流量的液体
3. 频率高，响应速度快
4. 定制高压（1000bar）
5. 定制高温（200C）
6. 无噪音
7. 防爆
8. 稳定性高
9. 连续工作寿命超过5年
10. 可以双向测量
1. Wide measuring ranges.
2. High accuracy, even for very low viscosity and low flow.
3. High frequency and response.
4. High working pressure.
5. Low now pressure drop
6. Low noise.
7. Explosion-proof
8. High working reliability
9. Long working life (more 5 years)
10. It can be bi-directional measurement
基深微小流量计主要参数/main parameter of JSN Micro Flow Meter
Model 型号 | Connection size 连接尺寸 | Flow range 流量范围 | Accuracy 精度 | Housing material 壳体材料 | Gear 齿轮材料 |

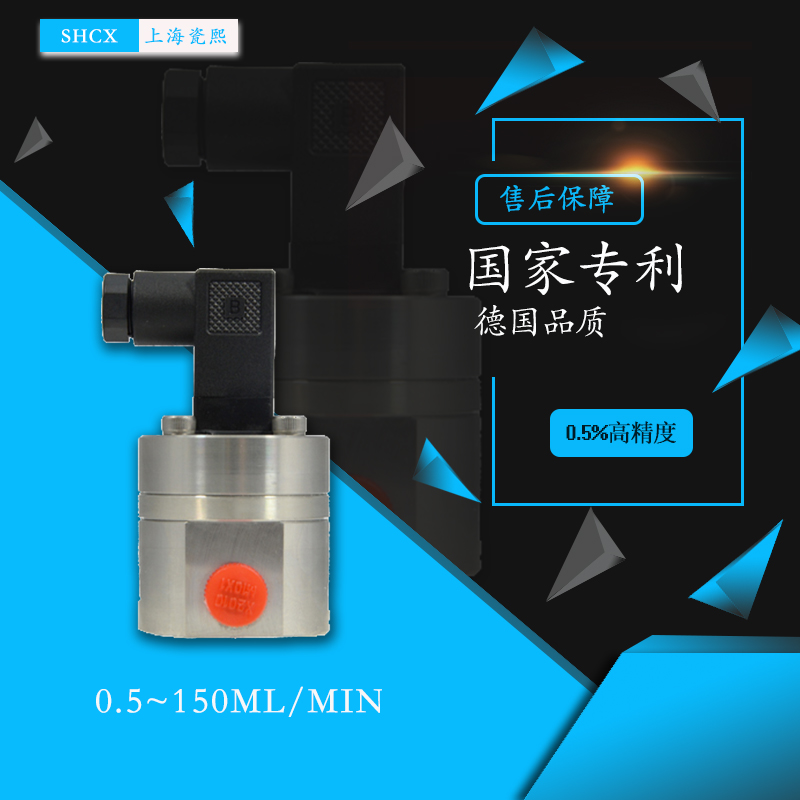

CX-M2-AL | G1/8'' | 0.5-150 ml/min | 0.5%FS | anodized aluminium | SS316L |
CX-M2-SS | G1/8'' | 0.5-150 ml/min | 0.5%FS | SS316L | SS316L |
CX-M3-AL | G1/8'' | 3~300 ml/min | 0.5%FS | anodized aluminium | SS316L |
CX-M3-SS | G1/8'' | 3~300 ml/min | 0.5%FS | SS316L | SS316L |
CX-M5-AL | G1/8'' | 5~1000 ml/min | 0.5%FS | anodized aluminium | SS316L |
CX-M5-SS | G1/8'' | 5~1000 ml/min | 0.5%FS | SS316L | SS316L |
CX-M6-AL | G1/4" | 0.5~100 L/H | 0.5%FS | anodized aluminium | anodized aluminium |
CX-M6-SS | G1/4" | 0.5~100 L/H | 0.5%FS | SS316L | SS316L |
CX-M9-AL | G1/4" | 6~600 L/H | 0.5%FS | anodized aluminium | anodized aluminium |
CX-M9-SS | G1/4" | 6~600 L/H | 0.5%FS | SS316L | SS316L |

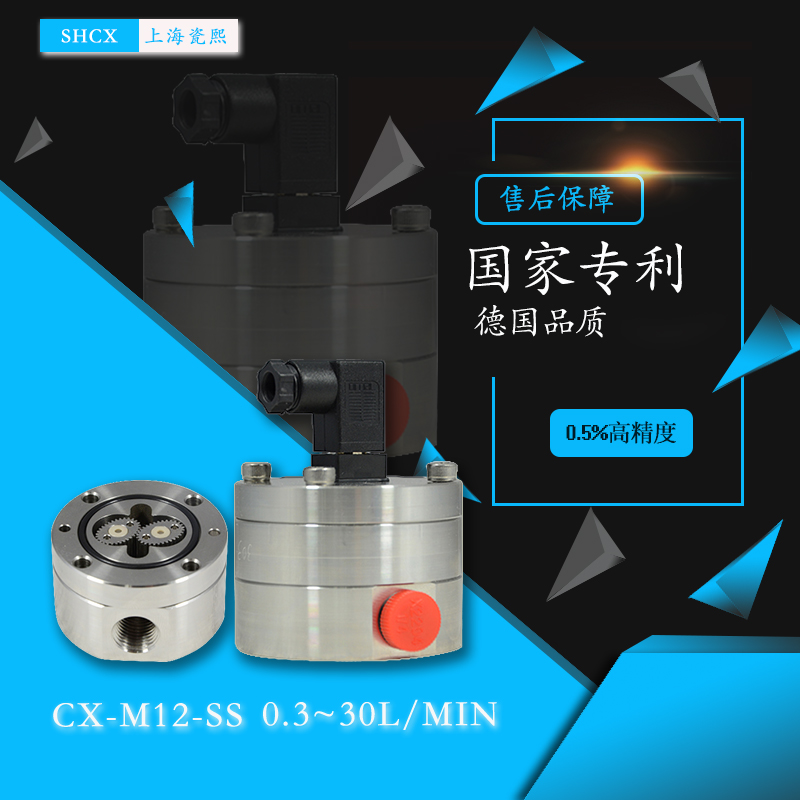

CX-M12-AL | G1/2" | 0.3~30 L/min | 0.5%FS | anodized aluminium | anodized aluminium |
CX-M12-SS | G1/2" | 0.3~30 L/min | 0.5%FS | SS316L | SS316L |
CX-M25-AL | G1" | 0.5~100L/min | 0.5%FS | anodized aluminium | anodized aluminium |
CX-M25-SS | G1" | 0.5~100L/min | 0.5%FS | SS316L | SS316L |
主要工况/Mainly application of JSN Micro Flow Meter
Hot Melt Dispensing,Gasoline Measurement, Freon Measurement, Odorant injection, chemical injection , Water Treatment Chemcials, Hydraulic Testing,
Glue dispensing, polyurethane industry,engine test,common rail injection tester, Aviation hydraulic fluid, Plastics technology, Coatings,paint etc
热熔胶，氟利昂测量，水处理，液压测试，液压泄露，点胶计，聚氨酯行业，共轨测试台，航空液压油，喷涂，喷漆，加臭行业等
