1) Strictly carry out ISO9001 standard & without quality complaint in 3 years
2) Working life is more 5 years and Equivalent to save 60% cost
3) Accuracy is up to 0.2%& over than 90% peers
4) Siemens CNC system and Cutting accuracy up to 0.001mm
5) Min flow only is 0.1ml/min and rarely in china and foreign
6) Special patent technology&anti-explosion

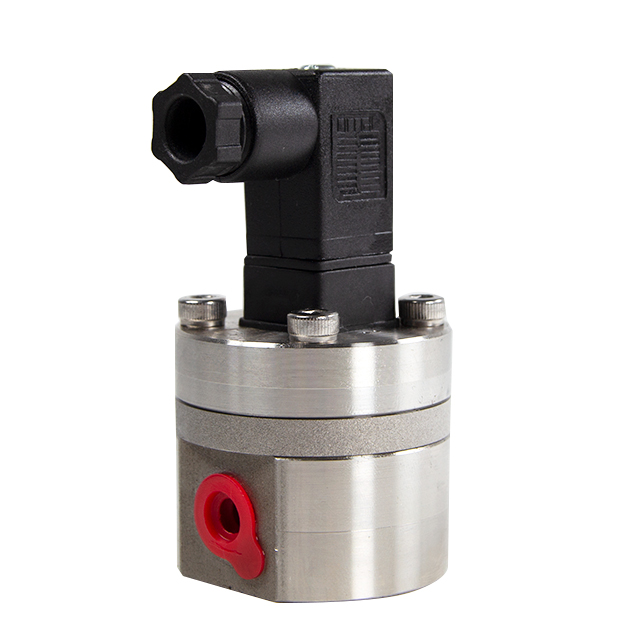

Our low volume flow meter is a kind of oval gear flow meter ,along to positive displacement flow meter. there is thousands of manufacturers who can produce oval gear flow meter. but only several manufacturer who have technology to produce micro liquid flow meter.
JSN micro flow meter offer the highest accuracy and measure for various viscosity liquid. special patent technology to measure flow from 0.1ml/min and ensure working life more 5 years.
JSN micro liquid flow meter is wildly used for various industries for precision measurement. So far it has been serviced for more 100 using condition, such as fuel oil measurement, Adhesive control ,Hydraulic life cycle testing, electrolyte dosing, natural gas odorization.
Basic Parameters of Low Volume Flow Meter:
Model: CX-M5.2-SS
Flow Range: 1~400ml/min
Accuracy: 0.2% or 0.5%
Temperature:-30~80C(max temperature200C)
Pressure: 32Bar
Output: square-wave pulse(reed switch,2 wires;hall sensor,3wires)
Supply:4~26VDC
Material:all stainless steel 316L
The various medium that has been pass tested by JSN micro flow meter
water | gum | chemicals | fluid |
oil | dyes | liquid | adbrasive adhesive |
grease | petrochemicals | isocyanate | two-component mixers |
paints | adhesive | ink | waterbased liquid |
skydrol | brake fluid | hydraulic oil | sealant |
gear oil | low viscosity | lubracating | methylbenzene |
Diesel | Methanol | methyl alcohol | medium viscosity |
polyol | high viscosity | offset ink | Toluene |
lacquer | low lubricity | resin | Pharmaceuticals |
solvent | cavity wax | wax | clear lacquer |
glycol | glycerin | sodium hydroxide | caustic soda |
ethylene | diethylene | triethylene | propylene |
corn oil | cocoanut oil | molasses | bhylene |
palm oil | olive oil | lard oil | cotton oil |
soy bean oil | rosin oil | rape seed oil | dimethylthylsufid DMS |
additive | syrup | sugar | electrohydrodynamic |
liquefied gas | perfume | aromatic substance | pharmaceutical |
peanut oil | fluid food | thioether | tetrahydrothiophen THT |
acryiat-composite | Thiol | mercaptan | mercaptan-composite |
The Using conditions of low volume flow meter
hydraulic system | precision dosing | 2 and 3 component application |
process control | open/closed loop control | corrosive chemical dispensing |
water treatment | additive injection | automobile industry |
system monitoring | laundry chemical | plastic technology |
print process | chemical batching | chemical packaging and blending |
ratio control | consumption measurement | oil metering |
metering plant | hydraulic test stand | batching control |
lacquering plant | 2 component plant | flow rate measurement |
dosing | Odorisation | closed-loop management |
Our chief engineer is former Siemens engineer ,all CNC machines is all use Siemens system, so far the performance of JSN low volume flow meter has achieved or over the highest standard through years’ effort. For example, min flow of low volume flow meter is 0.1ml/min,pulse ratio can be 1ml/pulse.max pressure is up to 1000bar, etc.
Features:
M5.2-SS flow range:1~400ml/min
Max pressure is up to 1000bar;
Highest temperature about 200C;
0.2% high accuracy beyond 90% peers;
Micro flow meter with longer working life by all stainless steel material;
Range ratio beyond 100:1;
Wide range of application,such as the hydraulic system,Lubricating industry and painting.
Select JSN micro flow meter, Select the Right, JSN will provide professional service for you.
There are selection table for you,Pls writing the details,Tks.
Pls confirm the bellow parameters table and Clickhere to let us know.
Using condition:
Medium | Corrosive or Non | ||
Min flow | Viscosity | ||
Normal flow | Working temperature | ||
Max flow | Working pressure | ||
If for flow monitor: Do you need to display total flow or current ? or both ?
| |||
If for dosing: How many litres per batch ? and how long it takes ?
| |||
What brand you use before ? | |||
