1) Strictly carry out ISO9001 standard&without quality complaint in 3 years
2) Working life is more 5 years and Equivalent to save 60% cost
3) Accuracy is up to 0.2%& over than 90% peers
4) Siemens CNC system and Cutting accuracy up to 0.001mm
5) Min flow only is 0.1ml/min and rarely in china and foreign
6) Special patent technology&anti-explosion

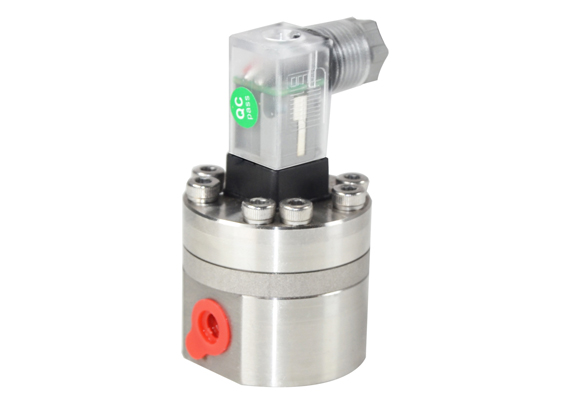

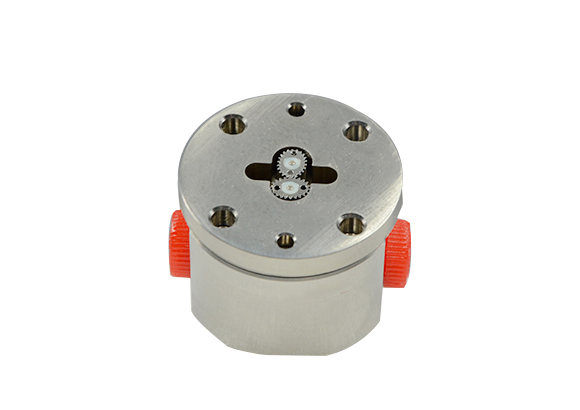

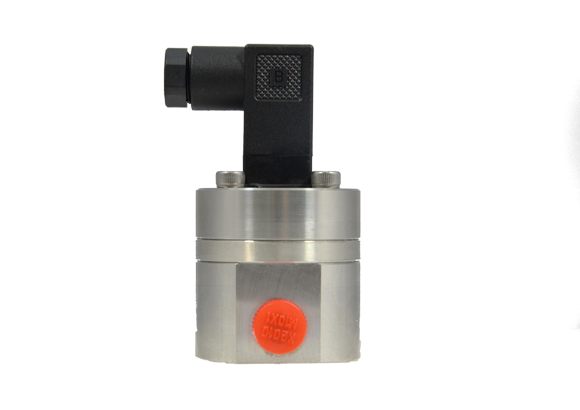

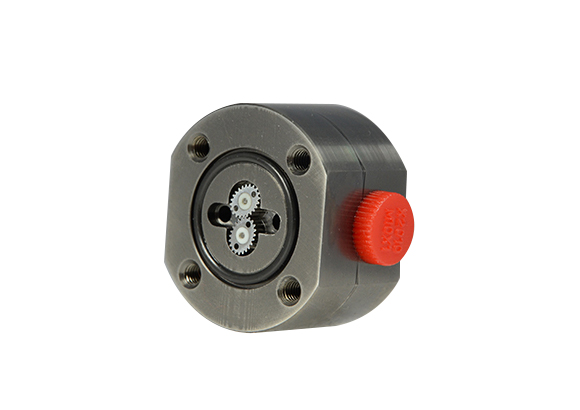

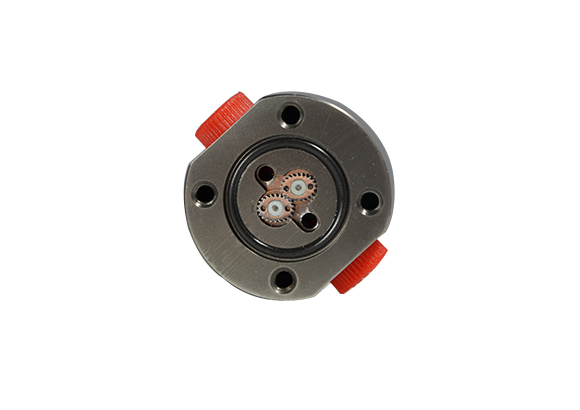

Our low micro flow meter is a kind of oval gear flow meter ,along to positive displacement flow meter. there is thousands of manufacturers who can produce oval gear flow meter. but only several manufacturer who have technology to produce micro liquid flow meter.
JSN micro flow meter offer the highest accuracy and measure for various viscosity liquid. special patent technology to measure flow from 0.1ml/min and ensure working life more 5 years.
JSN low micro flow meter is wildly used for various industries for precision measurement. So far it has been serviced for more 100 using condition, such as fuel oil measurement, Adhesive control ,Hydraulic life cycle testing, electrolyte dosing, natural gas odorization.
| Model | CX-M2.1-SS |
| Flow Range | 0.5~150 ml/min |
| Accuracy | 0.2% or 0.5% |
| Temperature | -30~80C |
| Pressure | 32 Bae |
| Output | Square-wave pulse(reed switch or hall sensor) |
| Supply | 4~26 VDC |
| Material | All stainless steel material |
The Various medium has been pass tested by the JSN low micro flow meter
gum | chemicals | fluid | |
oil | dyes | liquid | adbrasive adhesive |
grease | petrochemicals | isocyanate | two-component mixers |
paints | adhesive | ink | waterbased liquid |
skydrol | brake fluid | hydraulic oil | sealant |
gear oil | low viscosity | lubracating | methylbenzene |
Diesel | Methanol | methyl alcohol | medium viscosity |
polyol | high viscosity | offset ink | Toluene |
lacquer | low lubricity | resin | Pharmaceuticals |
solvent | cavity wax | wax | clear lacquer |
glycol | glycerin | sodium hydroxide | caustic soda |
ethylene | diethylene | triethylene | propylene |
corn oil | cocoanut oil | molasses | bhylene |
palm oil | olive oil | lard oil | cotton oil |
soy bean oil | rosin oil | rape seed oil | dimethylthylsufid DMS |
additive | syrup | sugar | electrohydrodynamic |
liquefied gas | perfume | aromatic substance | pharmaceutical |
peanut oil | fluid food | thioether | tetrahydrothiophen THT |
acryiat-composite | Thiol | mercaptan | mercaptan-composite |
The Using condition of low micro flow meter
hydraulic system | precision dosing | 2 and 3 component application |
process control | open/closed loop control | corrosive chemical dispensing |
water treatment | additive injection | automobile industry |
system monitoring | laundry chemical | plastic technology |
print process | chemical batching | chemical packaging and blending |
ratio control | consumption measurement | oil metering |
metering plant | hydraulic test stand | batching control |
lacquering plant | 2 component plant | flow rate measurement |
dosing | Odorisation | closed-loop management |
Features:
The low micro flow meter flow range is 0.3~150 ml/min;
The temperature is 200C and the max pressure is 1000Bar;
The standard type accuracy is 0.5%，the max accuracy is 0.2% for some special industry;
The flow meter with longer working life by the all stainless steel material;
Wide range of application,such as the hydraulic system,Lubriting industry and painting.
The flow range ratio beyond 100:1.
If you would like to purchase a sample to test,Pls Let Us Know.
Using condition: Qty: | |||
Medium | Corrosive or Non | ||
Min flow | Viscosity | ||
Normal flow | Working temperature | ||
Max flow | Working pressure | ||
If for flow monitor: Do you need to display total flow or current ? or both ?
| |||
If for dosing: How many litres per batch ? and how long it takes ?
| |||
What brand you use before ? | |||
