1.Strictly carry out ISO9001 standard&without quality complaint in 3 years
2.Working life is more 5 years and Equivalent to save 60% cost
3.Accuracy is up to 0.2%& over than 90% peers
4.Siemens CNC system and Cutting accuracy up to 0.001mm
5.Min flow only is 0.1ml/min and rarely in china and foreign
6.Special patent technology&anti-explosion

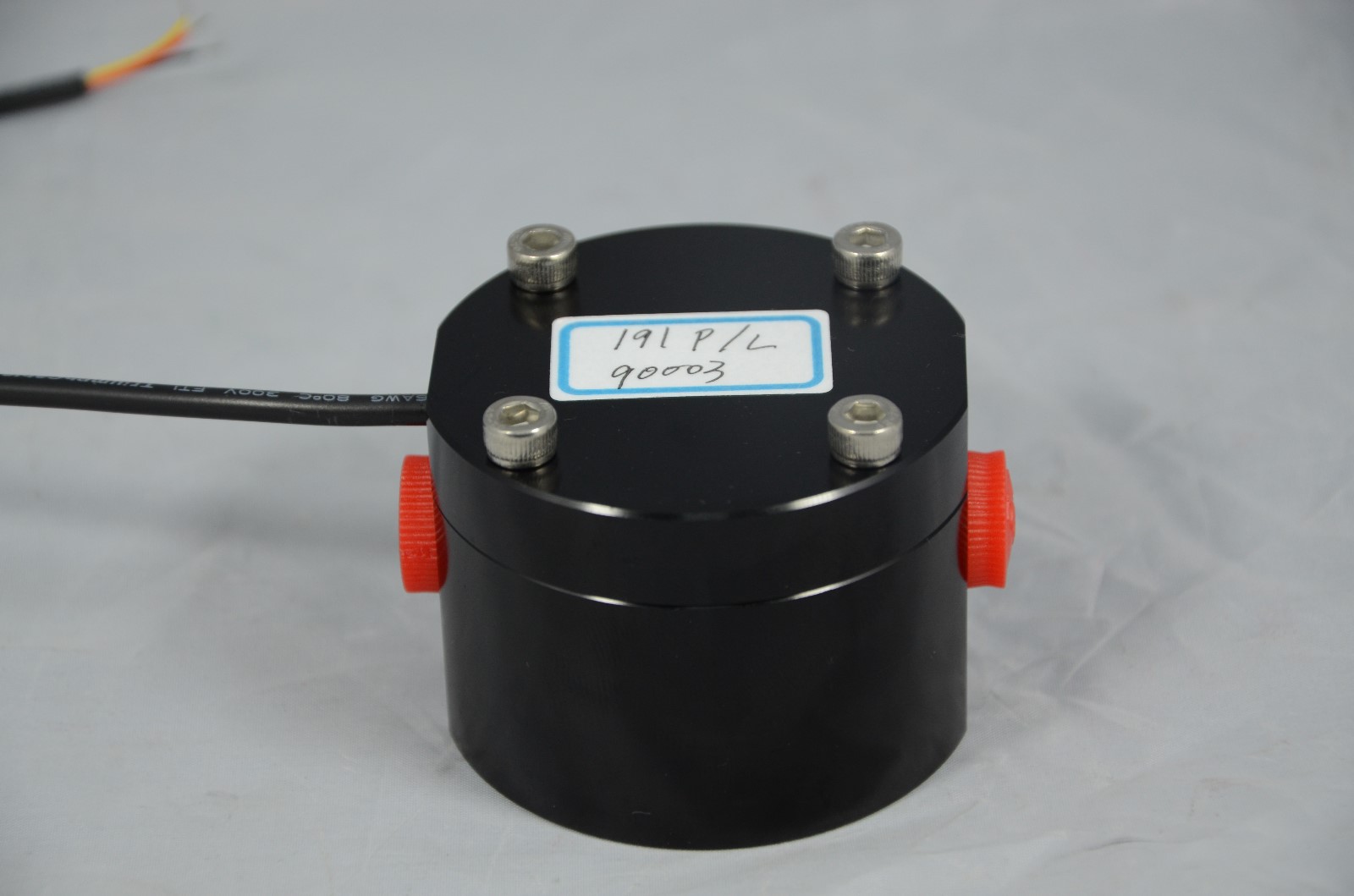

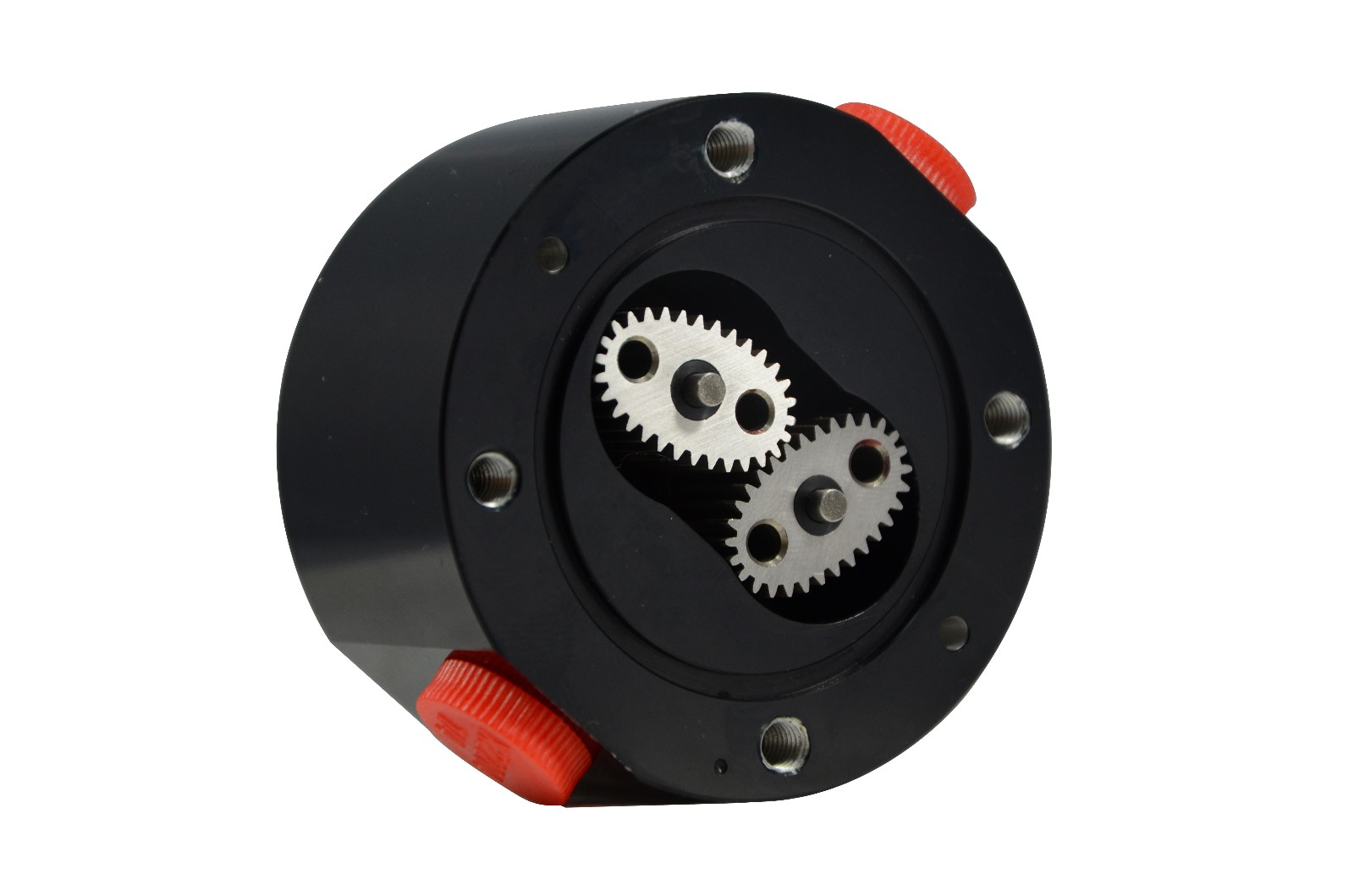

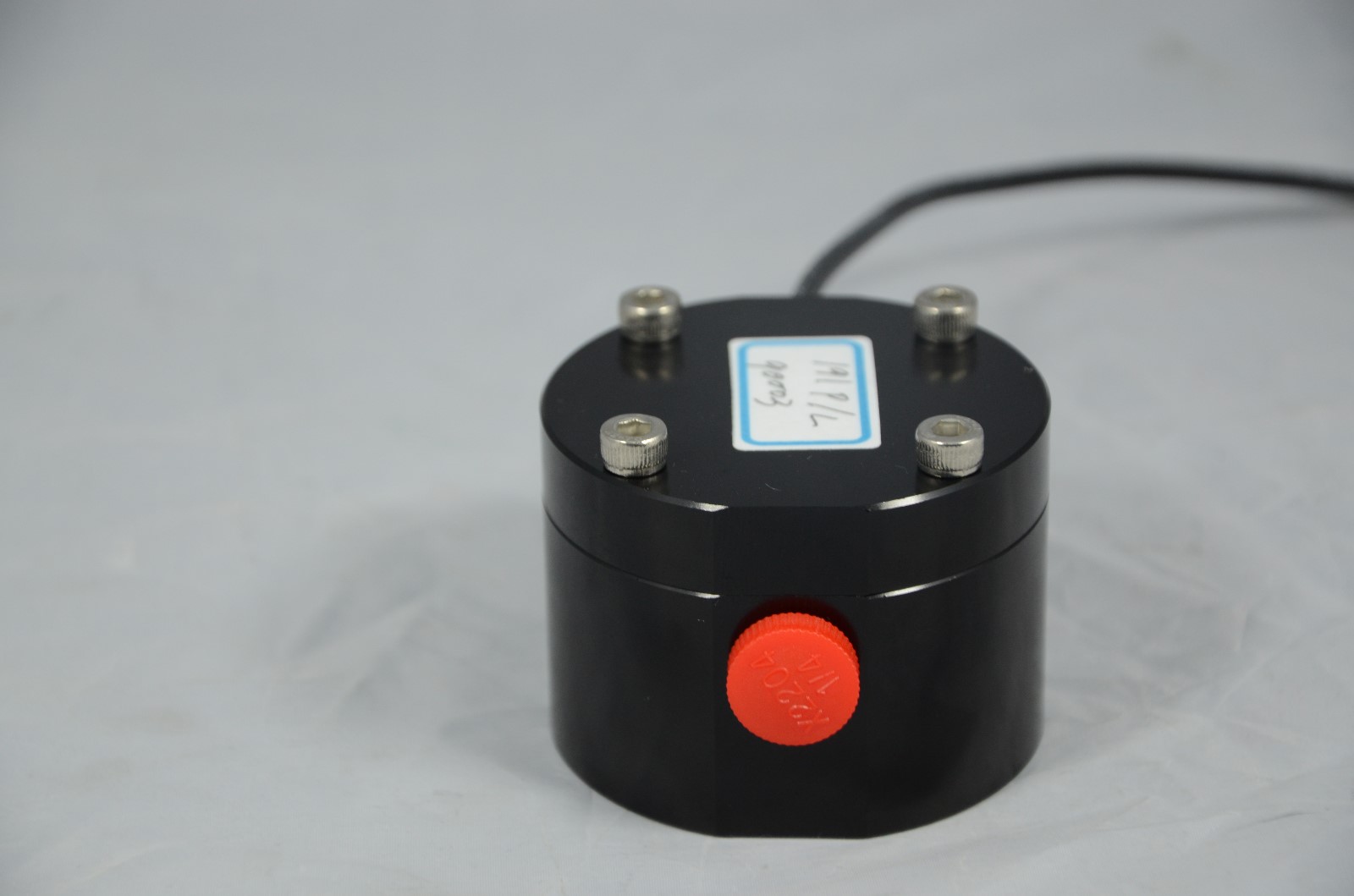

Our oval gear flowmeter is a kind of oval gear flow meter ,along to positive displacement flow meter. there is thousands of manufacturers who can produce oval gear flowmeter. but only several manufacturer who have technology to produce oval gear flow sensor.
JSN micro flow meter offer the highest accuracy and measure for various viscosity liquid. special patent technology to measure flow from 0.1ml/min and ensure working life more 5 years.
JSN oval gear flowmeter is wildly used for various industries for precision measurement. So far it has been serviced for more 100 using condition, such as fuel oil measurement, Adhesive control ,Hydraulic life cycle testing, electrolyte dosing, natural gas odorization.
Basic Parameters of oval gear flowmeter

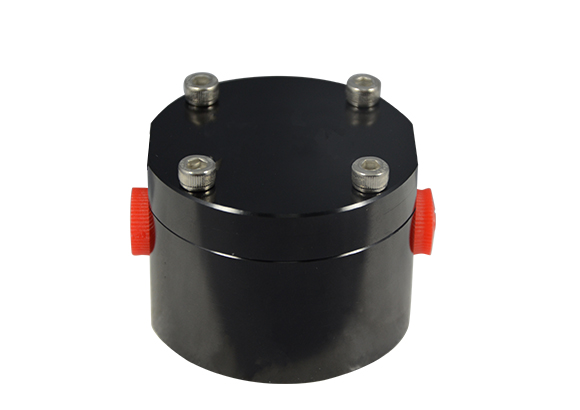

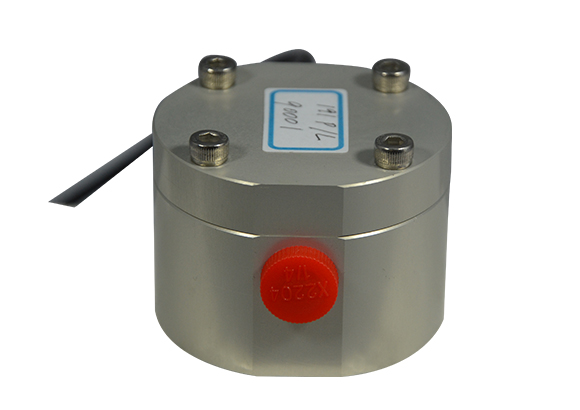

Model: CX-M9-AL
Flow Range: 6~600 L/h
Accuracy: 0.2% or 0.5%
Temperature:-30~80C
Pressure:32Bar
Output: square-wave pulse(reed switch,2 wires;hall sensor,3 wires)
Supply: 4~26VDC
Material :Aluminum
The various medium that has been pass tested by JSN micro oval gear flowmeter
gum | chemicals | fluid | |
oil | dyes | liquid | adbrasive adhesive |
grease | petrochemicals | isocyanate | two-component mixers |
paints | adhesive | ink | waterbased liquid |
skydrol | brake fluid | hydraulic oil | sealant |
gear oil | low viscosity | lubracating | methylbenzene |
Diesel | Methanol | methyl alcohol | medium viscosity |
polyol | high viscosity | offset ink | Toluene |
lacquer | low lubricity | resin | Pharmaceuticals |
solvent | cavity wax | wax | clear lacquer |
glycol | glycerin | sodium hydroxide | caustic soda |
ethylene | diethylene | triethylene | propylene |
corn oil | cocoanut oil | molasses | bhylene |
palm oil | olive oil | lard oil | cotton oil |
soy bean oil | rosin oil | rape seed oil | dimethylthylsufid DMS |
additive | syrup | sugar | electrohydrodynamic |
liquefied gas | perfume | aromatic substance | pharmaceutical |
peanut oil | fluid food | thioether | tetrahydrothiophen THT |
acryiat-composite | Thiol | mercaptan | mercaptan-composite |
The Using Conditions of oval gear flowmeter
hydraulic system | precision dosing | 2 and 3 component application |
process control | open/closed loop control | corrosive chemical dispensing |
water treatment | additive injection | automobile industry |
system monitoring | laundry chemical | plastic technology |
print process | chemical batching | chemical packaging and blending |
ratio control | consumption measurement | oil metering |
metering plant | hydraulic test stand | batching control |
lacquering plant | 2 component plant | flow rate measurement |
dosing | Odorisation | closed-loop management |
Our chief engineer is former Siemens engineer ,all CNC machines is all use Siemens system, so far the performance of JSN oval gear flowmeter has achieved or over the highest standard through years’ effort. For example, min flow of oval gear flowmeter is 0.1ml/min,pulse ratio can be 1ml/pulse.max pressure is up to 1000bar, etc.
Features:
M9 oval gear flowmeter flow range is 6~600 L/h;
The standard type accuracy is 0.5%,we also have 0.2 accuracy for any special industry;
Highest temperature is 200C;
The max pressure is 1000Bar;

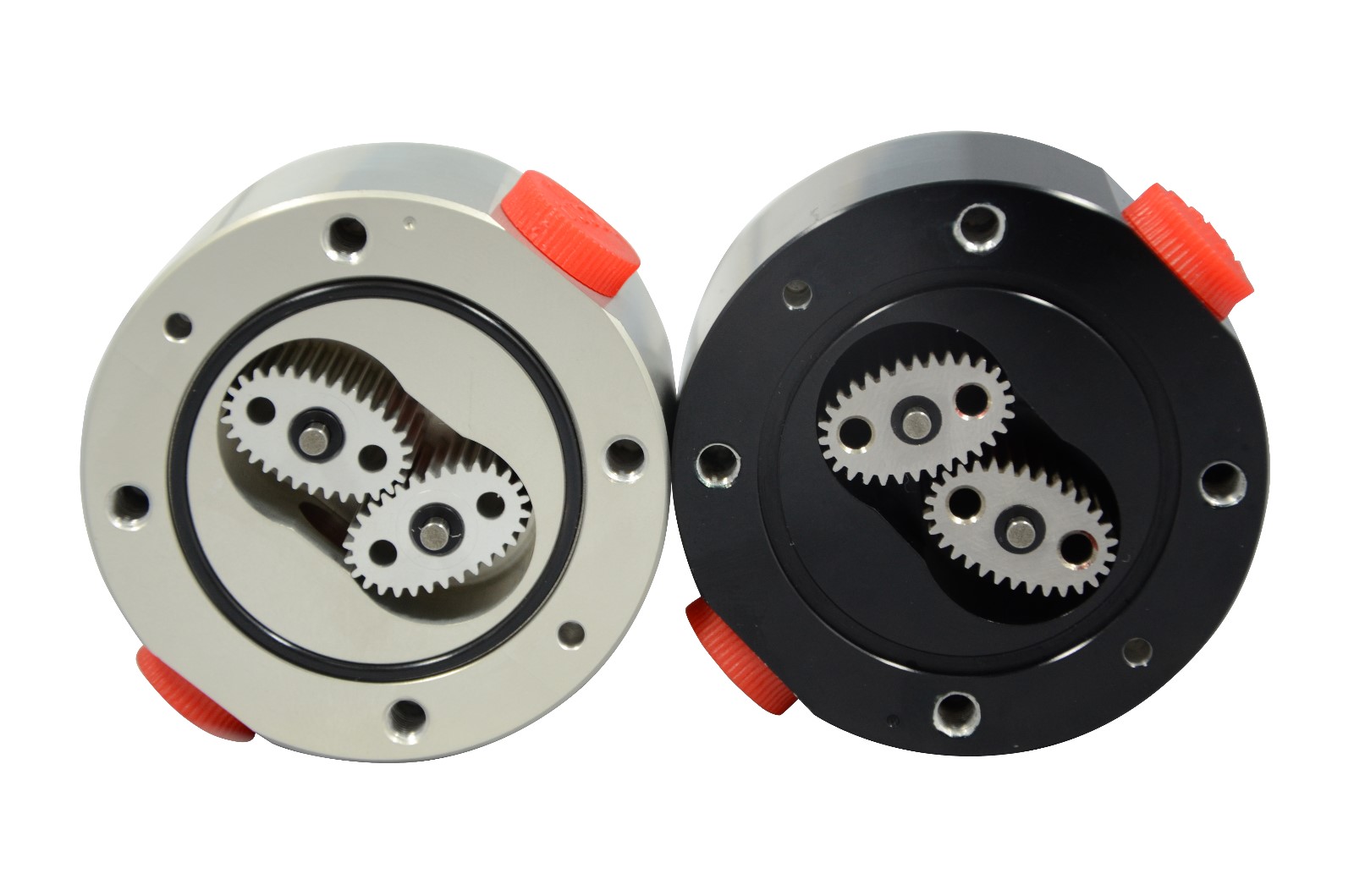

Oval gear flowmeter with longer working life by the special aluminum material;
Wide range of applications ,such as the hydraulic system,Lubricating and painting.
Select the JSN ,Select the right,We will provide the professional services for you.
Bellow is the Selection table,Pls writing the details of your working conditions.
Pls confirm the bellow parameters table and Click here to let us know.
Medium | Corrosive or Non | ||
Min flow | Viscosity | ||
Normal flow | Working temperature | ||
Max flow | Working pressure | ||
If for flow monitor: Do you need to display total flow or current ? or both ?
| |||
If for dosing: How many litres per batch ? and how long it takes ?
| |||
What brand you use before ? | |||
