Oval Gear Flow Meter

首页 > Product > Oval Gear Flow Meter > M12-AL Positive Displacement Flow Meter
  • M12-AL Positive Displacement Flow Meter
  • M12-AL Positive Displacement Flow Meter
  • M12-AL Positive Displacement Flow Meter
  • M12-AL Positive Displacement Flow Meter
  • M12-AL Positive Displacement Flow Meter
  • M12-AL Positive Displacement Flow Meter
  • M12-AL Positive Displacement Flow Meter
  • M12-AL Positive Displacement Flow Meter

M12-AL Positive Displacement Flow Meter

1) Strictly carry out ISO9001 standard&without quality complaint in 3 years
2) Working life is more 5 years and Equivalent to save 60% cost
3) Accuracy is up to 0.2%& over than 90% peers
4) Siemens CNC system and Cutting accuracy up to 0.001mm
5) Min flow only is 0.1ml/min and rarely in china and foreign
6) Special patent technology&anti-explosion

Function introduction Function introduction

Positive Displacement Flow Meter

Description

   Our positive displacement flow meter is a kind of oval gear flow meter ,along to positive displacement flow meter. there is thousands of manufacturers who can produce micro flow meter. but only several manufacturer who have technology to produce micro liquid flow meter.


  JSN micro flow meter offer the highest accuracy and measure for various viscosity liquid. special patent technology to measure flow from 0.1ml/min and ensure working life more 5 years.

JSN positive displacement flow meter is wildly used for various industries for precision measurement. So far it has been serviced for more 100 using condition, such as fuel oil measurement, Adhesive control ,Hydraulic life cycle testing, electrolyte dosing, natural gas odorization.

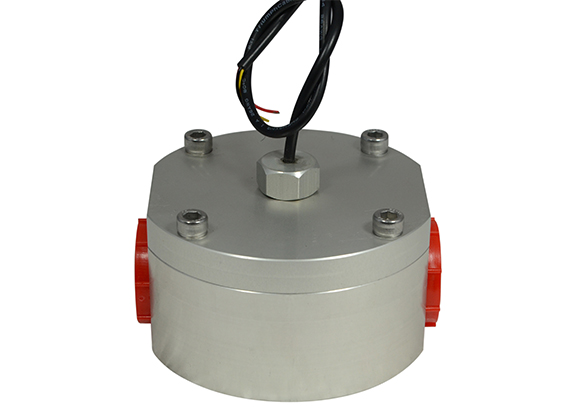

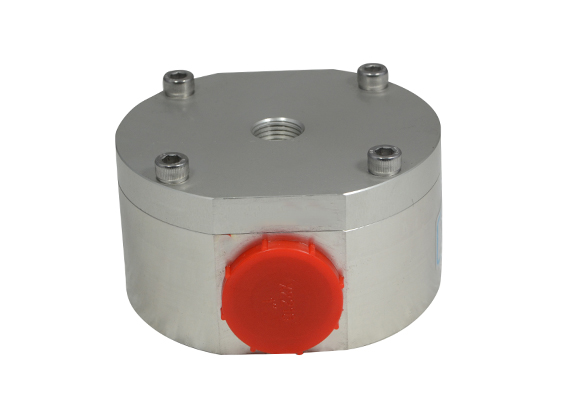

M12 Positive Displacement Flow Meter-1.jpg  M12 Positive Displacement Flow Meter-4.jpg



Parameters


Basic parameters of positive displacement flow meter

Model: CX-M12-AL
Flow Range: 0.3~30 L/min

Accuracy: 0.2% or 0.5%
Temperature:-30~80C
Pressure:32Bar
Output: square-wave pulse(reed switch,2 wires;hall sensor,3 wires)
Supply: 4~26VDC
Material: Aluminum



The various medium that has been pass tested by JSN positive displacement flow meter

water

gum

chemicals

fluid

oil

dyes

liquid

adbrasive   adhesive

grease

petrochemicals

isocyanate

two-component   mixers

paints

adhesive

ink

waterbased   liquid

skydrol

brake   fluid

hydraulic   oil

sealant

gear oil

low   viscosity

lubracating

methylbenzene

Diesel

Methanol

methyl   alcohol

medium   viscosity

polyol

high   viscosity

offset   ink

Toluene

lacquer

low   lubricity

resin

Pharmaceuticals

solvent

cavity   wax

wax

clear   lacquer

glycol

glycerin

sodium   hydroxide

caustic   soda

ethylene

diethylene

triethylene

propylene

corn oil

cocoanut   oil

molasses

bhylene

palm oil

olive   oil

lard oil

cotton   oil

soy bean   oil

rosin   oil

rape   seed oil

dimethylthylsufid   DMS

additive

syrup

sugar

electrohydrodynamic

liquefied   gas

perfume

aromatic   substance

pharmaceutical

peanut   oil

fluid   food

thioether

tetrahydrothiophen   THT

acryiat-composite

Thiol

mercaptan

mercaptan-composite



The Working conditions of JSN flow meter

hydraulic   system

precision   dosing

2 and   3 component application

process   control

open/closed   loop control

corrosive   chemical dispensing

water   treatment

additive   injection

automobile   industry

system   monitoring

laundry   chemical

plastic   technology

print   process

chemical   batching

chemical   packaging and blending

ratio   control

consumption   measurement

oil   metering

metering   plant

hydraulic   test stand

batching   control

lacquering   plant

2   component plant

flow   rate measurement

dosing

Odorisation

closed-loop   management



Feature

   Our chief engineer is former Siemens engineer ,all CNC machines is all use Siemens system, so far the performance  of JSN positive displacement flow meter has achieved or over the highest standard through years’ effort. For example, min flow of micro flow meter is 0.1ml/min,pulse ratio can be 1ml/pulse.max pressure is up to 1000bar, etc.


Features:

  • The M12 flow range is 0.3~30 L/min;

  • The standard type accuracy is 0.5%,the highest accuracy is 0.2% for some special industry;

  • The highest temperature is 200C;

  • The max pressure is 1000 Bar;

  • The flow meter with longer wirking life by the material;

  • Wide range of applications,such as the hydraulic system,Lubricating industry and painting.

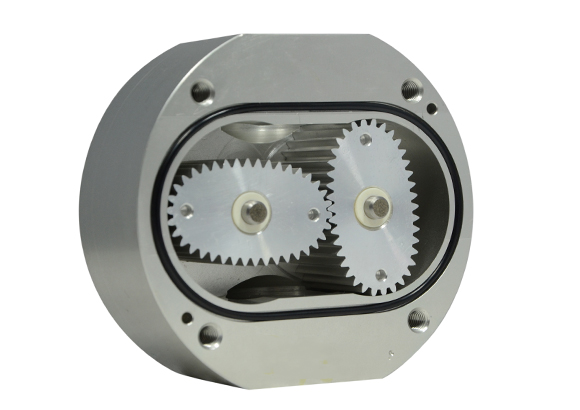

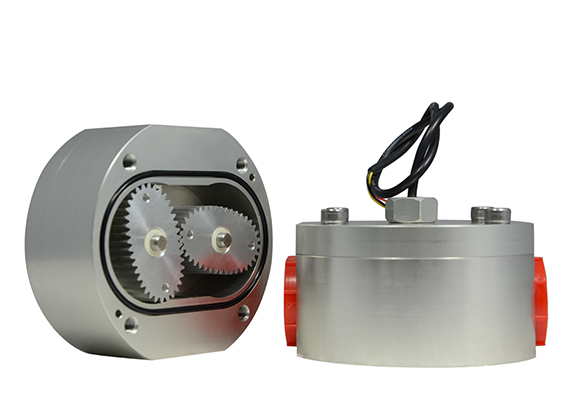

M12 Positive Displacement Flow Meter-3.jpg  M12 Positive Displacement Flow Meter-2.jpg





Selection Table

  select the JSN, select the right,we will provide the professional services for you.

  Bellow is the selection table ,Pls writing the details of your working conditions.Tks.


 Pls confirm the bellow parameters table and Click here to let us know.

Using condition:                               Qty:

Medium


Corrosive  or Non


Min flow


Viscosity


Normal flow


Working   temperature


Max flow


Working   pressure


If for flow monitor:

Do you need to display total flow or current ? or both ?



If for dosing:

How many litres per batch ? and how long it takes ?



What brand you use before ?
