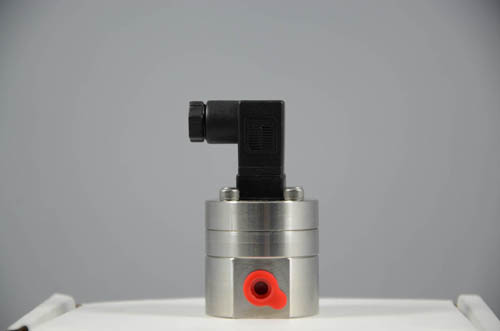

Micro flowmeter for cooling system

Date:2020-01-19 source:

The micro flowmeter belongs to the volumetric flowmeter, which is also called displacement flowmeter.It USES the measuring element of mechanical equipment to continuously cut the fluid mechanics into a single known volume part, according to the number of times that the measuring chamber repeatedly fills and discharges a part of the fluid mechanics of the volume to measure the total output of the flow volume.The volumetric flowmeter is basically a hydro-electric engine that absorbs a small amount of kinetic energy from hydrodynamics, which can be used to get rid of the friction of flow test components and note rotation, and to generate pressure drops on both sides of the meter injection and discharge.


Cooling system miniature flowmeter flowmeter model and flow category

CX - M2:0.5 ~ 150 ml/min,

CX - M3:3 ~ 300 ml/min,

CX - M5:5 ~ 1000 ml/min,

CX - M6:0.5 ~ 100 l/H

CX - M9:6 ~ 600 l/H,

CX - M12:0.3 ~ 30 l/min,

CX - M25:0.5 ~ 100 l/Min

Note: high temperature, high pressure, high frequency, unique connection, unique material, dual measurement can be customized

The micro flowmeter has high measurement accuracy and is suitable for the measurement of medium flow with high viscosity, but not for the fluid mechanics with solid particles. If the measured liquid medium is mixed with vapor, the measurement deviation will also be caused.Generally small flow meter accuracy reached a magnitude of 0.2, a more accurate flow measurement instrument, however, if the use of the measured medium flow rate is too small, generally small flow meter instrument will highlight the influence of the leak of deviation, but our flow meter can measure both high viscosity liquid can measure low viscosity liquid, can ensure adequate accuracy of measurement.

Can measure a variety of media, including a variety of high viscosity cleaning liquid.Its measuring range ratio is up to 40:1, which can consider the place with large flow span.Easy installation, aluminum and stainless steel plate and other materials to choose.Choose the latest news processing technology and raw materials.The measurement is accurate and reliable.

Which customers choose porcelain city flowmeter?

1) measurement and control of luoyang hydraulic valve: we know that hydraulic valve, hydraulic pump and hydraulic cylinder have a large range ratio, so we need to detect hydraulic leakage in the test. Some of them require 1:1000 range ratio of hydraulic flowmeter. At that time, the customer found us to test the leakage of hydraulic valve.

: laser cutting chip: 2), the ethnic group is the world's leading laser processing equipment manufacturers, in the process of semiconductor chip production, because of the heat so, need to constantly jet cutting fluid, and our laser devices and chips are high-end industries, the high quality requirements, product quality will be affected by any carelessness severely affected, thus established laser to flow to strictly control in 2 ml/min.

3) TECALEMIT, Australia: the company is very professional in the lubrication industry and has a history of more than 75 years. They need us to provide the flowmeter for oil measurement (high viscosity). The flowmeter is required to withstand the pressure of 40~100MPA.

Iran GCGASCONTROL: GC is a well-known gas odorization company established in Iran in 1990. Odorization liquid is very expensive, and the viscosity is only 0.55cp (20C). The minimum flow rate is 0.05L/H, common flow rate is 0.1L/H, and the maximum flow rate is 0.3L/H.
