The principle of differential pressure flowmeter is introduced

Date:2019-10-11 source:

Differential pressure flowmeter measuring principle, differential pressure flowmeter is the longest use history, the most widely used a kind of flow meter, but also one of the most mature flow meter in production.It has the characteristics of simple principle, simple equipment, no moving parts, reliable work, long life, mature application technology and easy to grasp.

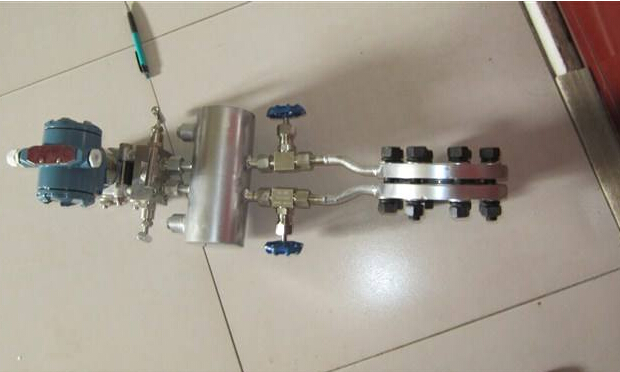

Differential pressure flowmeter consists of primary device and secondary device.The primary device is called flow measuring element, which is installed in the pipeline of the measured flow body and produces a pressure difference proportional to the flow (velocity) for the secondary device to display the flow.Secondary device scale display instrument.It receives the differential pressure signal generated by the measuring element and converts it into the corresponding flow rate for display.The primary device of differential pressure flowmeter is usually throttling device or dynamic pressure measuring device (pitot tube, speed equalizer, etc.).

Secondary device for a variety of mechanical, electronic, combined differential pressure meter with flow meter display.Differential pressure sensor of differential pressure gauge is mostly elastic element.Due to the square root relationship between the differential pressure and the flow rate, the flow rate display instruments are equipped with a square root device to linearize the flow rate scale.Most instruments also have flow integrators to show the cumulative flow for economic accounting.This method of measuring flow rate by differential pressure has a long history and is relatively mature. It is generally used in important occasions in countries all over the world, accounting for about 70% of all kinds of flow rate measurement methods.This meter is used to measure the flow of steam, feed water, condensate, etc.

Mechanical principle: instruments belonging to this kind of principle include differential pressure type and rotor type using Bernoulli's theorem.Using momentum theorem of impulse type, movable tube type;Using the direct mass formula of Newton's second law;Target type using fluid momentum principle;The turbine form using the angular momentum theorem;Vortex type and vortex street type based on fluid oscillation principle;Pitot tube, positive displacement, weir, tank, etc.
