Lubricating micrometer

Date:2020-01-20 source:

Lubrication of tiny flowmeter, belongs to a kind of displacement meter, is of high precision in the instrument, it used the original mechanical measuring the fluid continuous split into separate part of the volume of a known according to optimally suited for many times, repeatedly fill and drain the volume of fluid frequency to measure the total traffic volume.Micro flowmeter can choose different raw materials (pig iron, steel castings, 304 stainless steel, 316 stainless steel) production and manufacturing, suitable for chemical plants, petroleum, pharmaceutical, electrical engineering, metallurgy and food industry flowmeter work in the part of industrial production.It is especially suitable for fuel oil, acrylic emulsion, epoxy resin and other media with higher viscosity flowmeter principle and some high viscosity media.

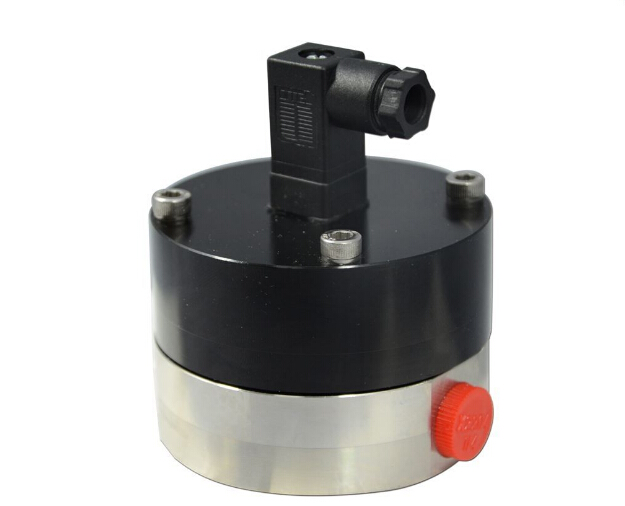

Lubricating micrometer

Cx-m series micro flowmeter is equipped with field meter display and word wheel counting device, which can display the accumulated flow through the pipeline immediately.It is very suitable for measuring finished oil medium.Widely used in water, oil, food, grease, chemistry, skin care products, ink, pharmaceutical industry, paint, petroleum, car, super glue, polyurethane, lithium battery electrolyte and preservatives and other industrial sectors of the anti-corrosion media flow measurement.

What is the approximate measurement error of lubricating micro-flowmeter?What causes the error?

The micro-flowmeter is allowed to have an error of two thousandths of a thousand in the measurement work.In practical work, the main reasons for the measurement error is too large are as follows.

Flow sensors on both ends of the pipe is coaxial if flow sensors on both ends of the pipe section (that is, the flow sensor front length is 25 times the pipe diameter and the back-end length of 5 times the pipe diameter section) coaxial, the rotational stability of the elliptical gear will directly affect the flowmeter, cause measurement error is too big, so in the maintenance work to ensure the flow sensor on both ends of pipe section coaxial.

When the sealing of the micro-flowmeter system is not tight, some air will be sucked into the pipe, resulting in a large measurement error.Therefore, the components of the micro-flowmeter system and the connection between the components must be sealed tightly, no leakage phenomenon.

Which customers choose the porcelain micro-flow meter?

: laser cutting chip: 3), the ethnic group is the world's leading laser processing equipment manufacturers, in the process of semiconductor chip production, because of the heat so, need to constantly jet cutting fluid, and our laser devices and chips are high-end industries, the high quality requirements, product quality will be affected by any carelessness severely affected, thus established laser to flow to strictly control in 2 ml/min.

4) SAVCORLTD is a large automobile paint company. The paint used by this customer is a mixture of a certain proportion of resin, butyl acetate and other solvents. In order to control the quality, it is necessary to ensure that the flow rate is 20ml/min, and if the flow rate is lower than 19ml/min or higher than 21ml/min, an alarm is required.

5) TECALEMIT, Australia: the company is very professional in the lubrication industry and has a history of more than 75 years. They need us to provide the flowmeter for oil measurement (high viscosity). The flowmeter is required to withstand the pressure of 40~100MPA.
