Resin micro-flowmeter

Date:2020-02-19 source:

Resin micro meter industrial production industry of liquid flow control in a variety of types of measurement, such as oil, diesel engine, motor gasoline, etc., have a large range, high accuracy, application and maintenance is convenient wait for a characteristic, adopt different manufacturing raw materials, can consider to petroleum, chemical, pharmaceutical, food, metallurgical industry, electric power, transportation and other industries of liquid flow metering.

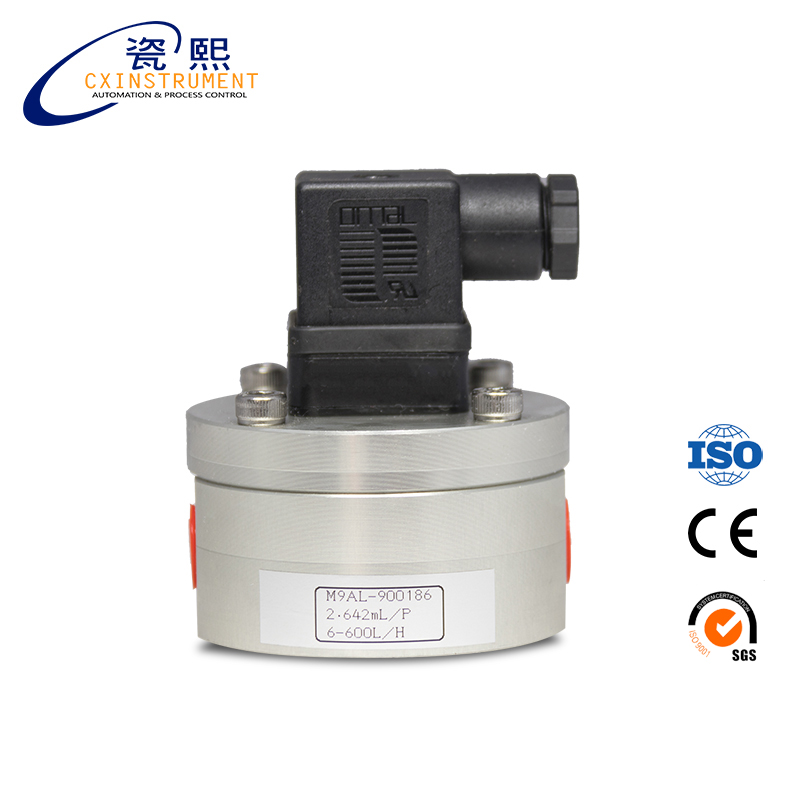

micro flow meter  (13).jpg

Part of the small flow meter and the basic principle, tiny flowmeter measurement part of the key by two elliptic gears meshing with each other and chassis (measuring room), elliptical gear parallel dielectric under test quality by turn every week for 4 times the capacity of half moon, half moon in small flow meter capacity under certain standards, if only to elliptical gear rotational speed n, can understand the total flow of measured medium.After organizing the rotation of the gear according to a series of deceleration and adjustment of the speed ratio, it is immediately connected to the indicator pin on the panel of the instrument panel, and the ergodic mechanical counter is used to display the total output.

The far transmission display is mainly driven by the permanent magnet rotation driven by the gear after the deceleration, so that the contact of the spring relay can be closed or disconnected synchronously with the same rotation frequency of the permanent magnet, thus sending one electrical pulse to another display instrument.

Resin micro-flowmeter

The installation note

For the fluid with solid particles, it is not appropriate to use a micro flowmeter, because the solid particles will be stuck to the gear, resulting in the flow can not be measured;It is also important to note that the use of micro-flow meters is not recommended for liquids containing gaseous media, where measurement errors can be quite large.When we use the micro flowmeter to measure the liquid with high viscosity, there will be less leakage from the gear and the metering gap. Therefore, the larger the viscosity of the measured liquid, the smaller the leakage error, the more favorable to the measurement, and the higher the measurement accuracy.

It can be said that the micro flowmeter is the best choice for measuring the flow of liquid with high viscosity, but our flowmeter can also measure the medium with low viscosity, which can meet the needs of most customers.

The price

The price of micro-flow meter is usually decided according to the category of material and flow.Generally, aluminum and stainless steel materials can be selected according to the different materials measured.The same flow range of stainless steel can be more expensive than aluminum micro meters.Details can be consulted according to the working conditions: 18049841995 XCMG

Which customers choose porcelain city flowmeter?

1) measurement and control of luoyang hydraulic valve: we know that hydraulic valve, hydraulic pump and hydraulic cylinder have a large range ratio, so we need to detect hydraulic leakage in the test. Some of them require 1:1000 range ratio of hydraulic flowmeter. At that time, the customer found us to test the leakage of hydraulic valve.

: laser cutting chip: 2), the ethnic group is the world's leading laser processing equipment manufacturers, in the process of semiconductor chip production, because of the heat so, need to constantly jet cutting fluid, and our laser devices and chips are high-end industries, the high quality requirements, product quality will be affected by any carelessness severely affected, thus established laser to flow to strictly control in 2 ml/min.

3) TECALEMIT, Australia: the company is very professional in the lubrication industry and has a history of more than 75 years. They need us to provide the flowmeter for oil measurement (high viscosity). The flowmeter is required to withstand the pressure of 40~100MPA.

Iran GCGASCONTROL: GC is a well-known gas odorization company established in Iran in 1990. Odorization liquid is very expensive, and the viscosity is only 0.55cp (20C). The minimum flow rate is 0.05L/H, common flow rate is 0.1L/H, and the maximum flow rate is 0.3L/H.
