Phenolic resin micro flowmeter

Date:2020-02-18 source:

Phenolic resin micro flowmeter is a kind of volumetric flowmeter, especially suitable for heavy oil, polyvinyl alcohol, epoxy resin and other high viscosity medium flow measurement and some low viscosity material measurement, so micro flowmeter is also known as the oil meter.Micro flowmeter is purely mechanical principle flowmeter, completely safe type can be used in various risk sites, local display and monopulse transmitter remote transmission function, optional behavior of the main material is stainless steel micro flowmeter, has a strong corrosion resistance characteristics, suitable for chemical and food hygiene level industry.Micro flowmeter installation and maintenance is very convenient, the accuracy of 0.1 and 0.2.

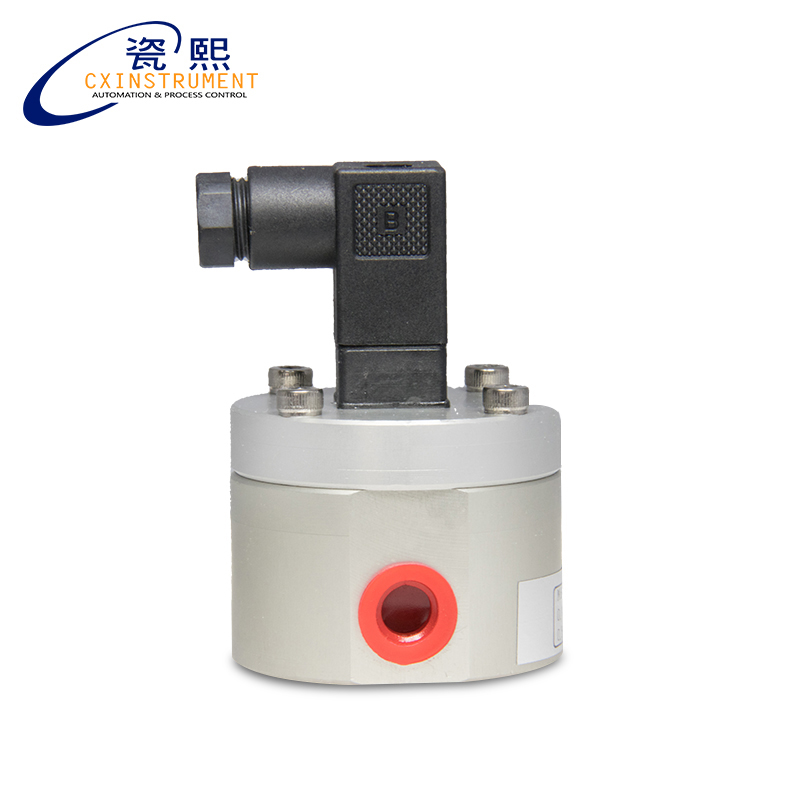

micro flow meter (76).jpg

Basic parameters of porcelain micro-elliptic gear flowmeter

Cx-m2, flow range: 0.5~150ml/min, accuracy: 0.5%, connection: g1/8 ";

Cx-m3, flow range: 3~300ml/min, accuracy 0.5%, connection g1/8 ";

Cx-m5, flow range: 5~1000ml/min, accuracy 0.5%, connection g1/8 ";

Cx-m6, flow range: 0.5~100L/H, accuracy 0.5%, connection g1/4 ";

Cx-m9, flow range: 6~600L/H, accuracy 0.5%, connection g1/4 ";

Cx-m12, flow range: 0.3~30L/Min, accuracy 0.5%, connection g1/2 ";

Cx-m25, flow range: 0.5~100L/Min, accuracy 0.5%, connection G1";

The basic parameters of porcelain small round (positive) gear

G0.025, interdental volume 0.025ml, starting flowmeter 0.001L/Min, flow range 0.008~2L/Min, 0.5%

G0.04, interdental volume 0.04ml, starting flowmeter 0.004l /Min, flow range 0.2-4l /Min, 0.5%

G0.1, inter-tooth volume 0.4ml, starting flowmeter 0.008l /Min, flow range 0.01~8L/ Min, 0.5%

G0.2, inter-tooth volume 0.245ml, starting flowmeter 0.01L/Min, flow range 0.16~16L/ Min, 0.5%

G0.4, inter-tooth volume 0.4ml, starting flowmeter 0.01l /Min, flow range 0.16~16L/ Min, 0.5%

G1, inter-tooth volume 1.036ml, starting flowmeter 0.02L/Min, flow range 0.4~80L/ Min, 0.5%

Which customers choose the base depth flowmeter?

1) some nozzle tester manufacturers Tai’an City: taian is common rail injector producer, has made about half of the nozzle, used to KRACHT (clark), OVAL and other selected, today most people used CX - M5 - AL (5 ~ 1000 ml/min), 500 sets of annual purchase amount, in addition, people developed a: for a professional CX - M3 - CRI: 1 ~ 400 ml/min for compatible with most models.

2) LUBAS polyurethane processing plant in Finland: LUBAS is a polyurethane enterprise with a long history in Finland, with a material viscosity of 500-2000mpas and a material flow meter of SS316L.Since the establishment of cooperation, regular purchase, uninterrupted, and continuous cooperation for more than two years, without all customer complaints.

3) Bulgaria BETA food ration plus engineering: in manufacturing, the viscosity is 5cSt, 80cSt and 150cSt, the flow is 20L/min, but each ration is 50-2000ml, the clamp is connected, and the resolution is 1ml, so people order high-frequency cx-m12-ss (0.3~30L/min), K index is up to 0.421ml/p.
