Micro-flow meter for cutting fluid

Date:2020-02-21 source:

Porcelain city small flowmeter is learnt the cutting fluid flow meter technical world through optimization design, has simple structure, light, high precision, strong repeatability, reflecting the dexterity, easy installation and maintenance of the use of features such as a new generation of turbine flowmeter, commonly used to measure enclosed in pipeline and 1 cr18ni9ti stainless steel plate, 2 cr13 and steel jade AI2O3, carbide etching effect, and no fiber, particulate matter, such as residue, motion viscosity temperature below 5 x 10-6 m2 / s of the liquid.

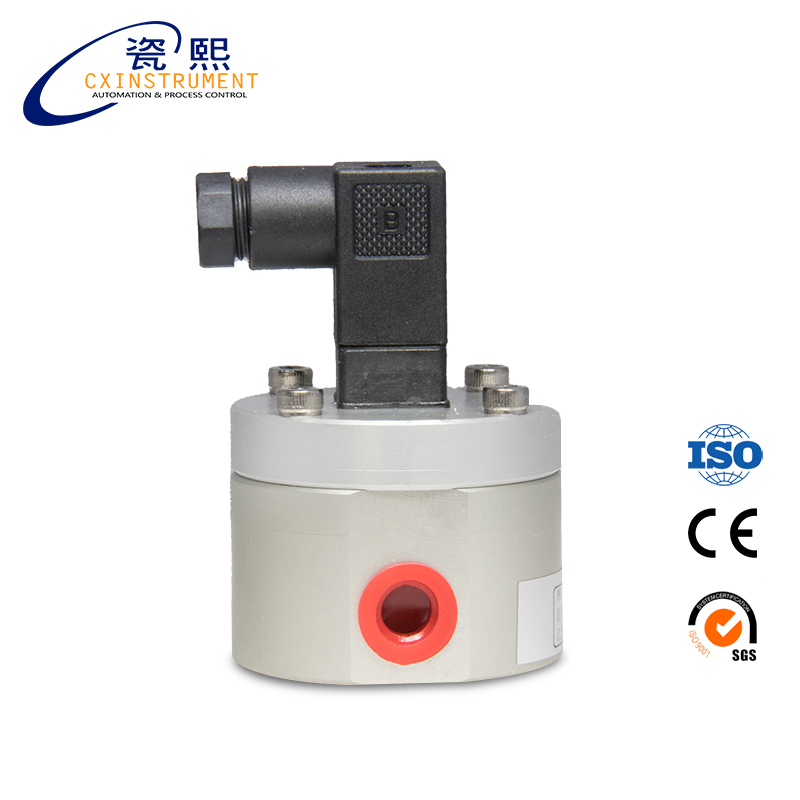

micro flow meter  (7).jpg

Commodity characteristics of micro-flowmeter with porcelain cutting fluid

1. Working pressure damage is small, the impeller has anti-corrosion effect.

2. It has high anti-electromagnetic interference and anti-vibration ability, with long working life.

3. Selected ultra-low energy consumption single chip microcomputer technology, the whole equipment is strong, low power, the most used.Intelligent total flow display with nonlinear precision compensation.The precision of adjustment formula is better than ±0.02%.

4. The instrument index can be set online by the keys, and the display information can be displayed on the LCD screen. The LCD screen has clear visualization and high reliability.

5. EEPROM is selected to maintain the accumulated flow and instrument index.Maintenance over 10 years.

6. Compact and light structure, convenient installation, maintenance and circulation capacity;

7. High pressure measurement is available, and there is no need to punch holes on the surface of the instrument, so it is easy to make high pressure instrument;

8. There are many types of special sensors, which can be designed for various special sensors according to the unique requirements of customers, such as low-temperature type, double-heavy type, mine type, sand mixing special type, etc

9. It can be made into plug type, suitable for large size measurement, low working pressure damage, low price, sustainable flow removal and installation.

Installation of micro flowmeter of porcelain cutting fluid

1. Flange connection, thread connection and clamping type shall be used for instrument installation;

2. During installation, the direction of liquid flow shall be the same as that of the incoming arrow marked on the sensor housing, and the upstream and downstream straight pipe segments shall be ≥20dn, and the middle and downstream pipe segments shall be ≥5dn (dn is the inner diameter of the pipeline).

3. The sensor shall eliminate the external magnetic field; if it cannot be prevented, necessary countermeasures shall be adopted;

4. In order not to affect the normal transportation of liquid during maintenance, bypass valve pipelines should be installed outside the connection sections on both sides of the sensor (as shown in figure 4);

5, sensor outdoor installation, please do a good job to solve the dampproof amplifier plug;

6. The connection between the sensor and the display information instrument shall be selected according to the switching power supply of the amplifier, and the operation instructions shall be given in detail

The price

The price of micro-flow meter is usually decided according to the category of material and flow.Generally, aluminum and stainless steel materials can be selected according to the different materials measured.The same flow range of stainless steel can be more expensive than aluminum micro meters.Details can be consulted according to the working conditions: 18049841995 XCMG
