What kind of flow meter is suitable for small flow diesel?

What kind of flow meter is used to measure diesel with a small flow rate: three types of flowmeters are commonly used to measure

diesel oil (oval gear flow meter, liquid turbine flowmeter, float flow meter), among which the oval gear flowmeter has an accuracy of 0.5,

and its cost performance is also Highest.

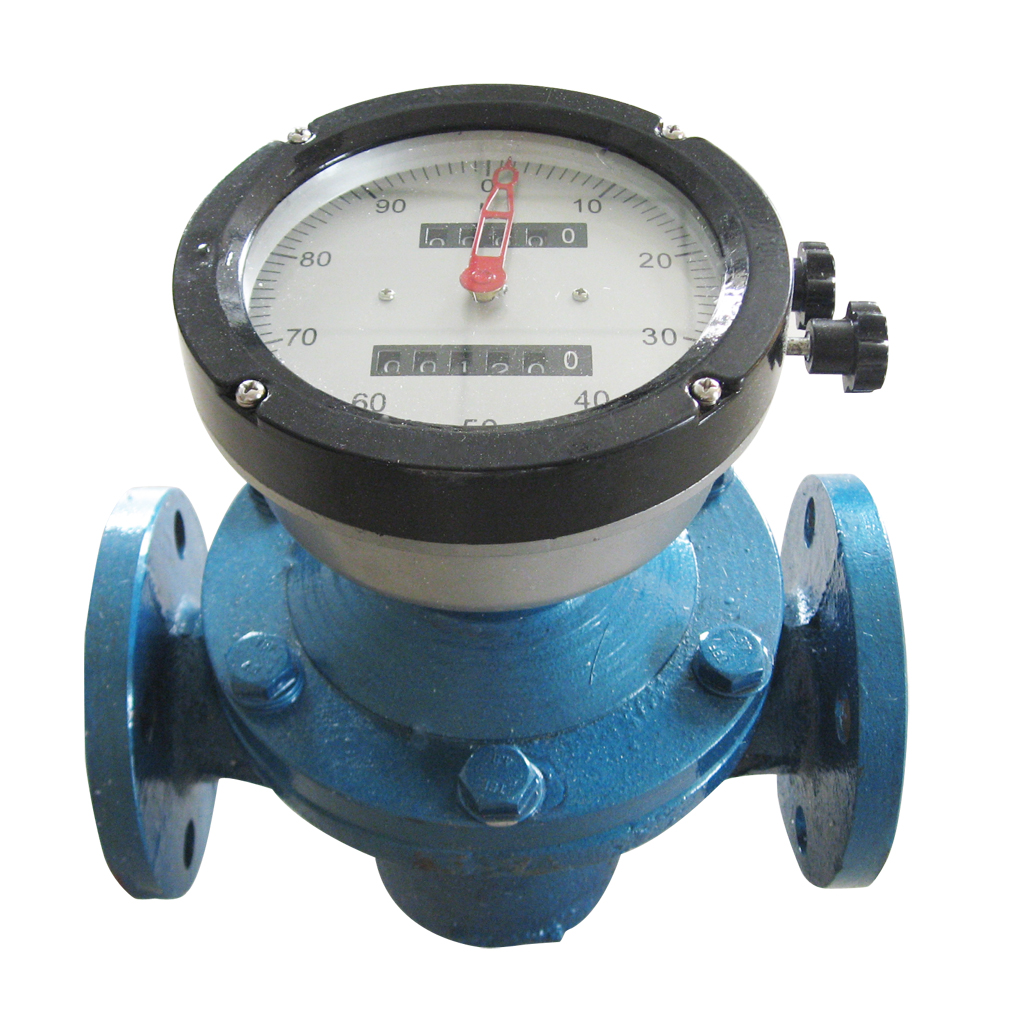

For the measurement of diesel flow with high viscosity, small flow and high accuracy requirements, you can consider choosing an

oval gear flowmeter to measure its flow.

What kind of flow meter is used to measure the small flow of diesel oil

Oval gear flowmeter parameters optional range

Caliber: DN10-DN150

Medium: heavy oil, diesel oil, lubricating oil, hydraulic oil

Flow range: L/H m3/H

Medium temperature: -40~160C

mechanical display, digital display

Accuracy: +/-0.5%

Working pressure: 1.6Mpa, 2.5Mpa, 4Mpa

Material: cast iron, cast steel, stainless steel (gear: aluminum alloy)

With or without zero return function

with filter

Output pulse or 4-20mA

Reasons Affecting the Accuracy of Oval Gear Flow Meter

When using an oval gear flowmeter, it should be noted that the temperature of the measured medium should not be too high, otherwise

 it will not only increase the measurement error, but also cause the gear to be stuck. For this reason, the oval gear flowmeter is used within

 the specified operating temperature range of the instrument.

After long-term use of the oval gear flowmeter, the internal gears will be corroded and worn, which will affect the measurement accuracy.

Usually, the accuracy of the oval gear flowmeter can reach 0.5 grade, which is a relatively accurate flow meter. However, if the flow rate of the

 measured medium is too small, the influence of the leakage error of the oval gear flowmeter will be prominent, and it cannot be used anymore.

 Ensure sufficient measurement accuracy.
