The difference between vortex flowmeter and turbine flowmeter

For the diversity of industrial flow measuring instruments and equipment, when using industrial

instruments, choosing to use different instrumentation equipment due to different

application environments can also be said to be a form of choosing instruments now.

 With a variety of similar but different meters, the user is bound to utilize the wrong

choice. For example, turbine and vortex flow meter, which are often mistaken by

enterprises, what is the difference between them before?

1. Differences in application areas

Vortex flowmeter: It is mainly used for flow measurement of medium and fluid in

industrial pipelines, such as gas, liquid, steam and other media. It is characterized by

small pressure loss, large measuring range, high precision, and is almost not affected

by parameters such as fluid density, pressure, temperature, viscosity, etc. when

measuring the volume flow of the working condition. No moving mechanical parts,

so high reliability and low maintenance. Instrument parameters can be stable for a

 long time.

Turbine flowmeter: widely used in the following measurement objects: petroleum,

organic liquids, inorganic liquids, liquefied gas, natural gas, coal gas and cryogenic

fluids and other aspects. It has the advantages of simple structure, few processing

parts, light weight, convenient maintenance, large flow capacity (large flow through

the same caliber) and adaptable to high parameters (high temperature, high pressure

 and low temperature).

Second, the difference between production and manufacturing

A turbine flowmeter is an instrument that uses a multi-blade rotor (turbine) to

measure the average flow of a fluid and calculate flow or total flow from it.

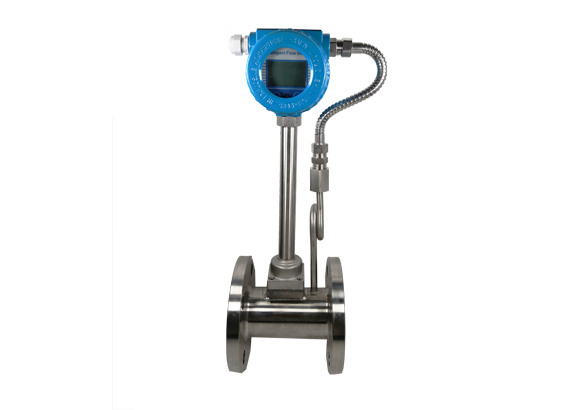

The vortex flowmeter is designed and manufactured according to the principle of

Karman vortex. The flow rate is measured using the principle of fluid oscillation.

When the fluid passes through the vortex transmitter in the pipe, the triangular

column vortex generator alternately generates two rows of vortices in proportion to

the flow. The release frequency of the vortex generator is related to the average

velocity of the fluid flowing through the vortex generator and the characteristics of

the vortex generator

3. Differences in data transmission

The turbine flowmeter cuts off the magnetic induction line through the rotation of

the impeller, and then measures the output flow through signal processing.

Vortex flowmeter is a flow measurement method that processes the output signal by

detecting the Karman vortex.
