Gear Small Mini Flow Meter

sales01@cxflowmeter.com

Shanghai Cixi produced gear small mini flow meter is their characteristic product

, There are micro flow meter, Low flow chemical flow meter, high viscosity flow meters, high frequency flow meters, and high pressure flow meters.

It is suitable for a variety of industrial industries and laboratories, and has a wide range of applications.

If you are looking for such a flowmeter, you might as well take a look at winny's introduction.

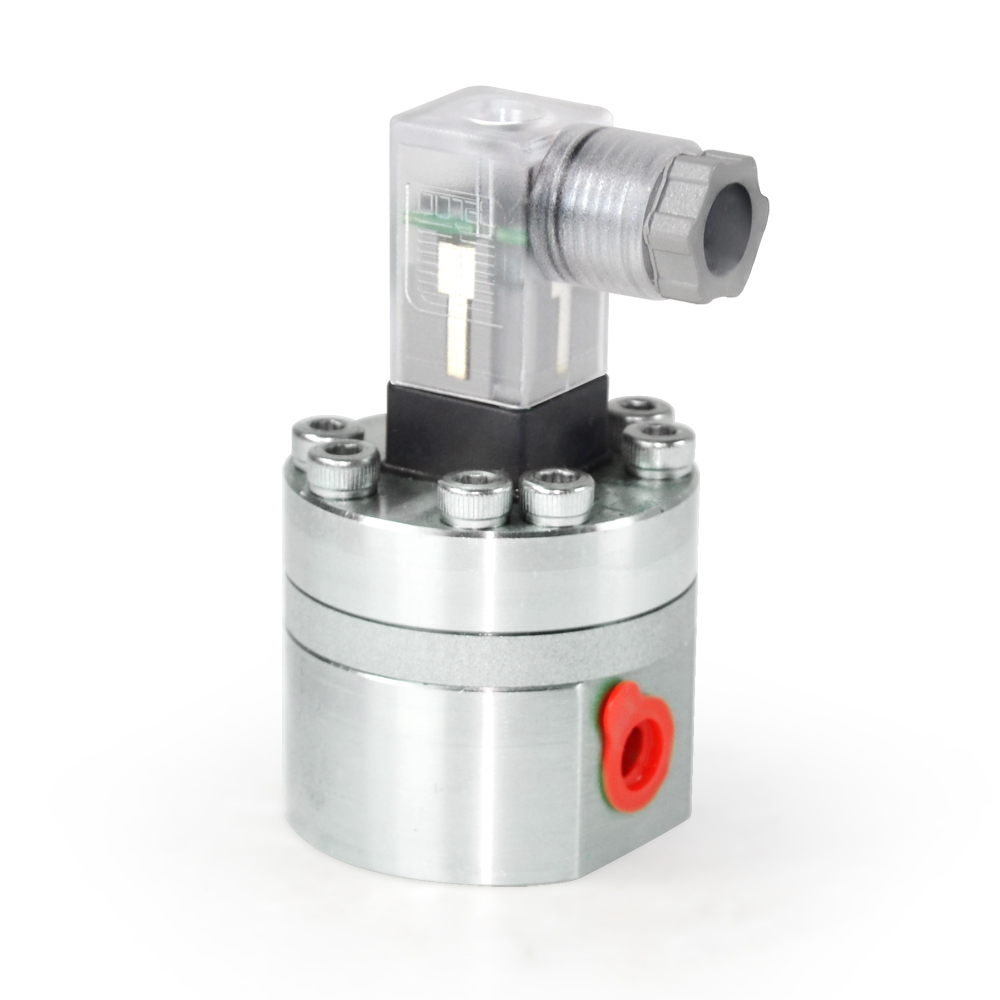

M series ,micro flow low viscosity liquid flow meter oval gear flow meter

sales01@cxflowmeter.com

Product Applications

M series are mainly used in the measurement of lubricating oil, grease, and low-viscosity liquids.

Measurable viscosity up to 1 million cP medium.

Small vibration noise during working, convenient installation.

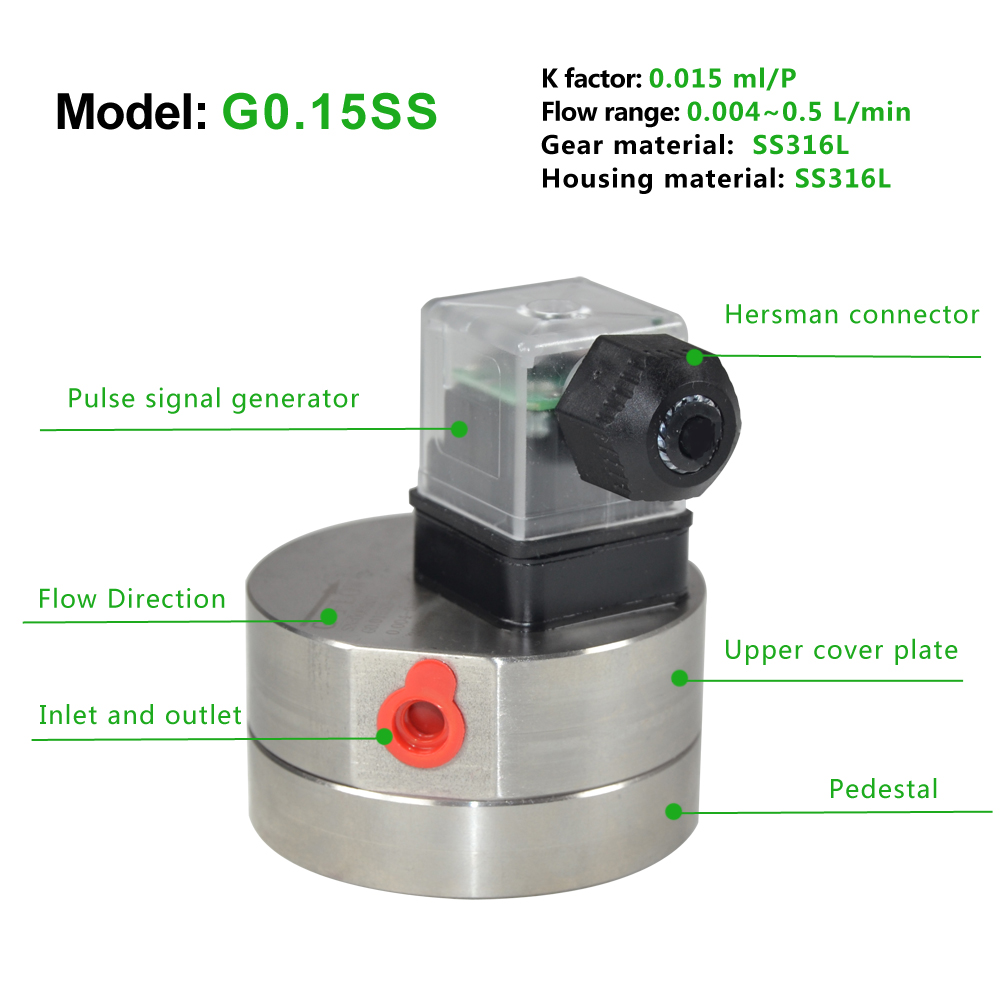

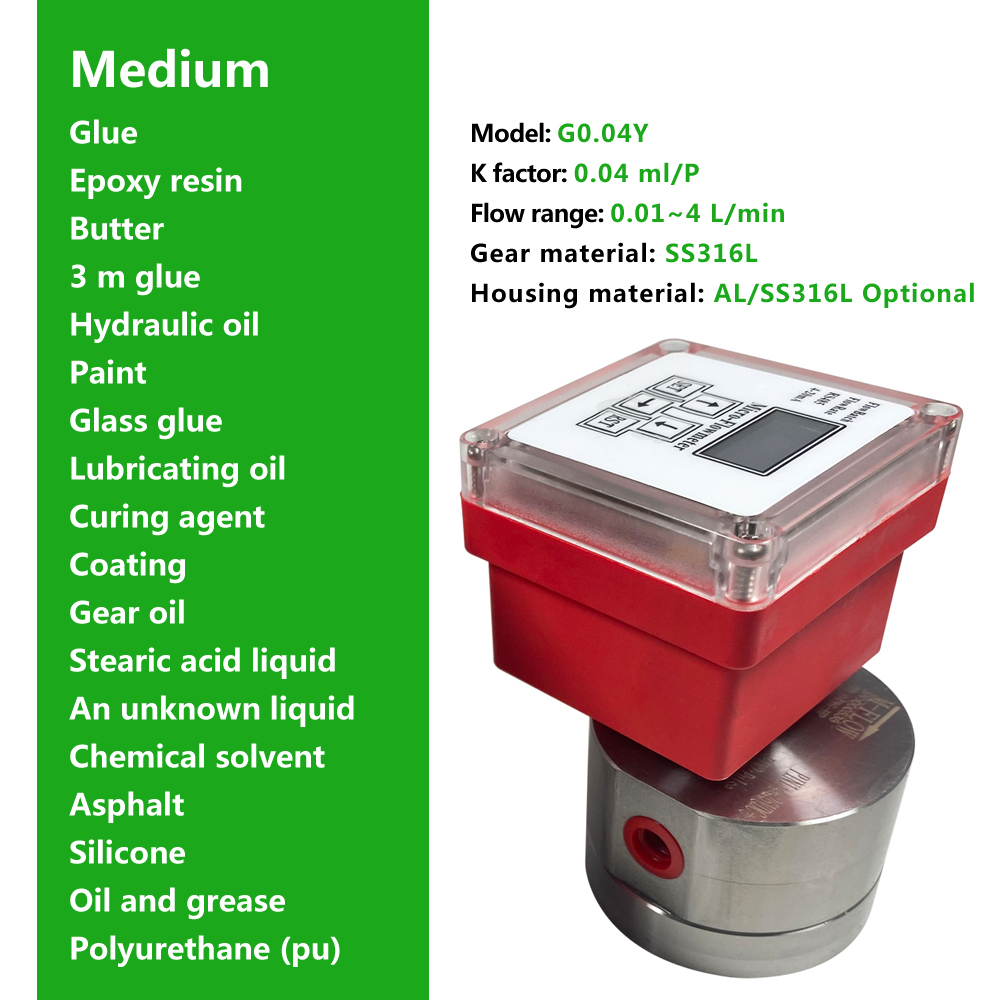

G series high viscosity low flow gear flow meter

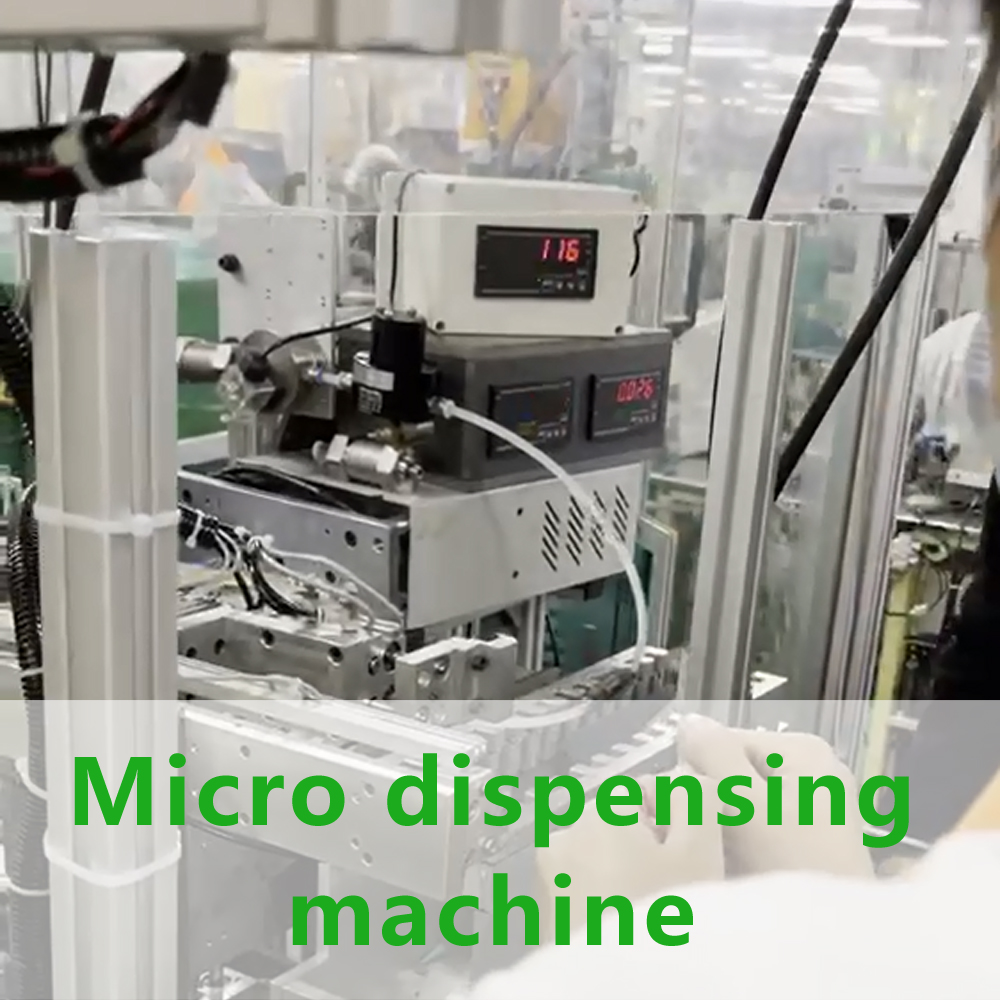

G series is mainly used for dispensing, gluing and quantitative two-component polyurethane glue,

aiming at high viscosity and high resolution flow detection. Measurable viscosity up to

1 million cP medium. Small vibration noise during working, convenient installation.

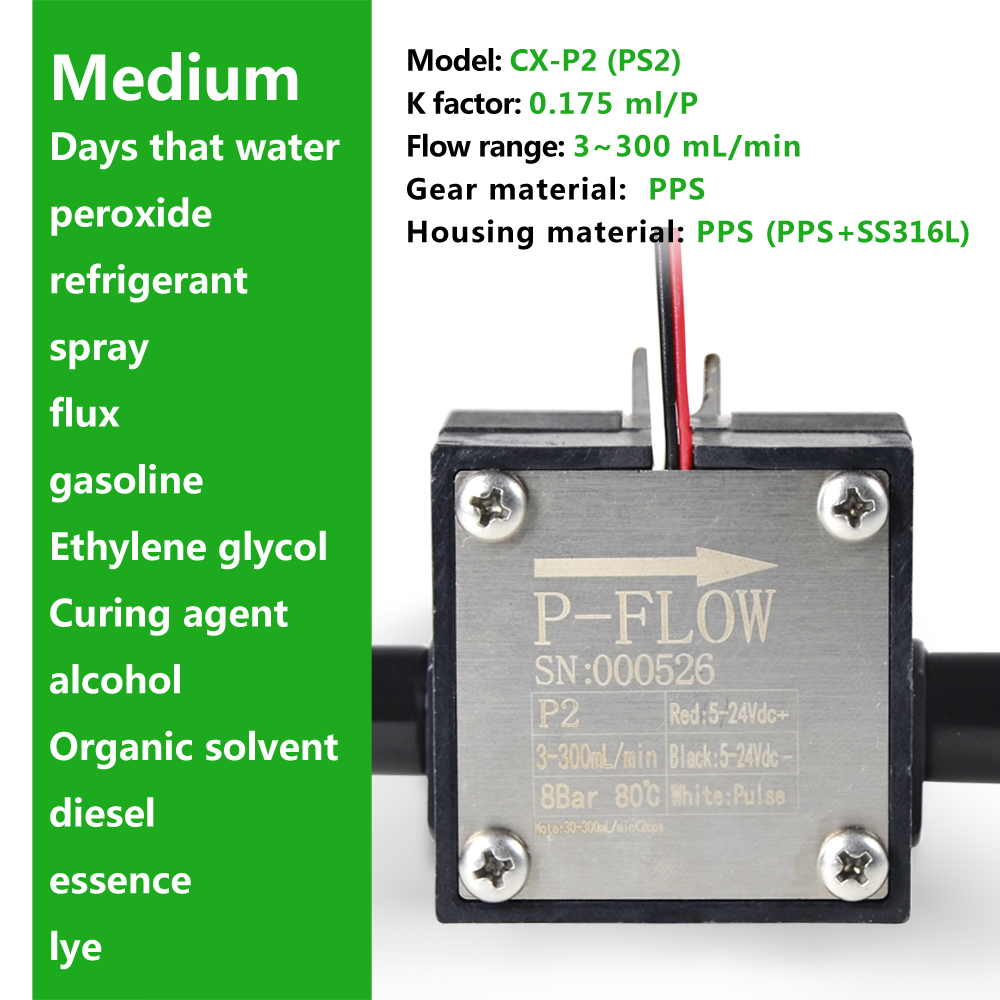

P series plastic gear flow meter Low flow chemical flow meter, corrosion-resistant chemical liquid flow meter

sales01@cxflowmeter.com

Product Applications

The flow meters are all made of corrosion-resistant materials, resistant to acids, alkalis and various solutions, and are suitable for accurate metering of various

chemical medium and low viscosity that cannot be in contact with metals such as stainless steel. Used in the chemical industry or reactor flow monitoring.

Small vibration noise during working, convenient installation.

High resolution gear flow meter

sales01@cxflowmeter.com

Product features

Small vibration and noise during operation, easy to install

Measure liquid viscosity up to: 10000pa.s

Measuring accuracy: 0.5

Working temperature: -40~80 °C

Measuring range width up to: 100:1

Power supply: 5-26 VDC

Pressure: 32bar, custom high pressure

Output signal: ultra-high frequency square wave pulse output

Function introduction

For high viscosity medium, it is necessary to carry out precise measurement of trace liquid

under low resistance (pressure loss).

Even in the case of extremely slow gear rotation, a small amount of rotation can still give

enough pulse number.

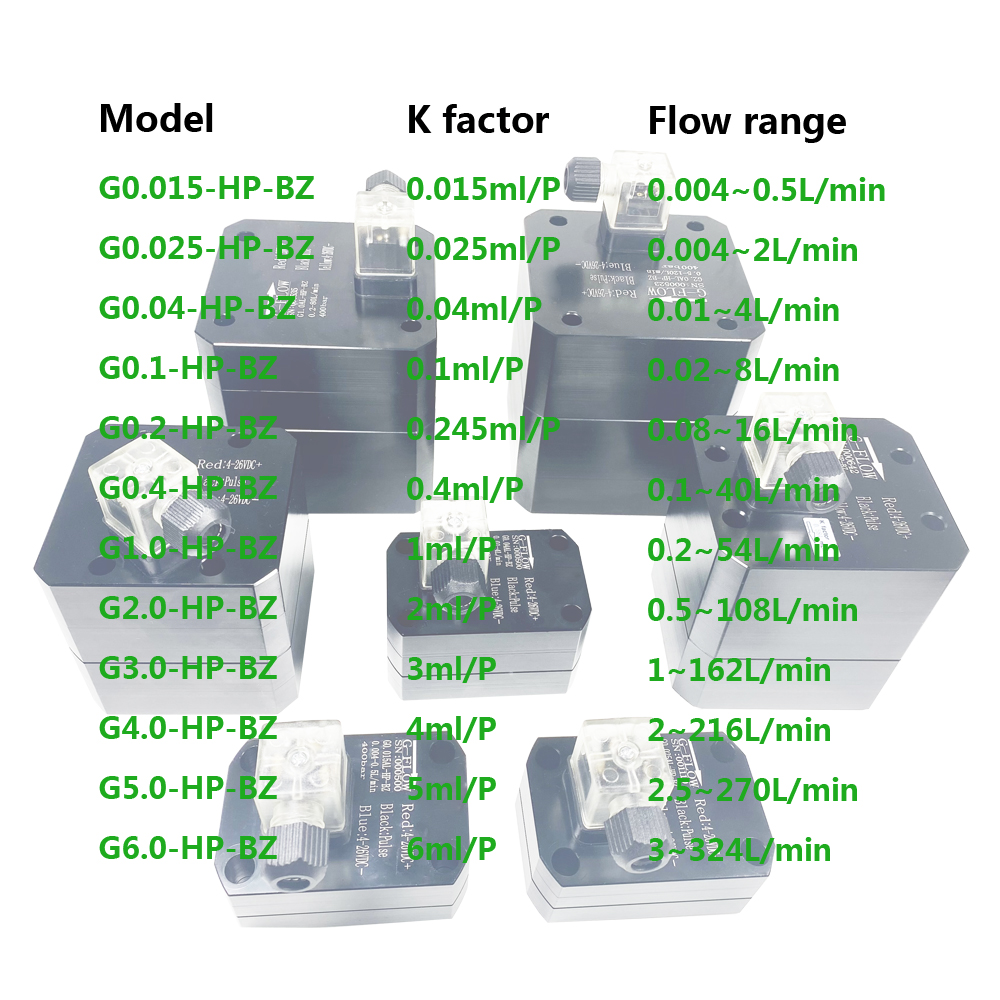

High pressure plate mounting gear type flow meter

sales01@cxflowmeter.com

Technical Parameters

Low vibration and noise during

working, easy to install

Measurable viscosity up to:1000000cp

Measurement accuracy: 0.5%

Wide measuring range up to 100:1

Power supply 5-26VDC

Working temperature:-40~100℃

Above 120℃ can be customized

Pressure: 400bar,

Above 400bar can be customized

Output signal: ultra high frequency square wave pulse output

Customized integrated display

Product applications

Plate mounting type high pressure positive displacement meter, used for continuous or intermittent

precision measurement of liquid in the pipe flow or instantaneous flow. Suitable for heavy oil, polyvinyl

alcohol, resin and other high-viscosity and high-pressure places, professional application in

polyurethane foaming machine industry, the precision can reach 0.5%, repeat accuracy is 0.2%,

accurate measurement of tiny flow in high-pressure situations;The installation size can be

compared with German Kracht VC series.

All those mini flow low meters Low flow chemical flow meter Can be integrated display or

with DC8Sremote digital display.4-20mA analog output,

Modbus RTU 485 communication, cumulative alarm, instantaneous alarm, etc.

If you want to know more, please consult winny:sales01@cxflowmeter.com
