Selection of high viscosity fluid gear metering pump

Today, a customer asked how to select a gear metering pump for slurry similar to honey

Medium: slurry similar to honey

No corrosion, no particles

Flow rate: 500mL/min

Flow rate: 1000mL/min

Temperature: usually used at room temperature of 20 degrees

Pressure: no pressure at the inlet and the outlet is pumped into the reactor at 20bar

Used with variable frequency motor

Two sets of pumps are used for two flow rates, and the appropriate displacement and inlet and outlet diameters are recommended

After seeing this, our technicians replied and recommended these two different models of metering pumps

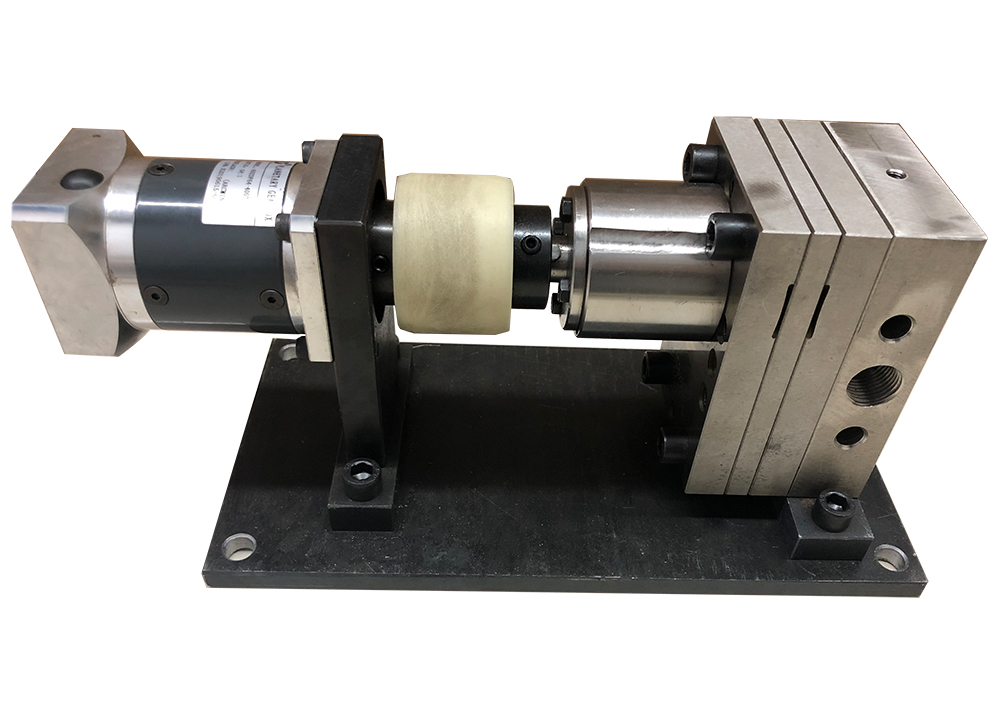

500ml: CX-HD-6.3/0.55KW variable frequency motor/1:5 reducer/304/440C/copper sleeve/mechanical seal

1000ml: CX-HD-12/0.75KW variable frequency motor/1:5 reducer/304/440C/copper sleeve/mechanical seal

6.3CC caliber G1/2 12CC caliber G3/4

If the customer uses solvent materials to clean the pump, a perfluoroether mechanical seal is required. The additional cost is

 6.3CC+250 12CC+450
