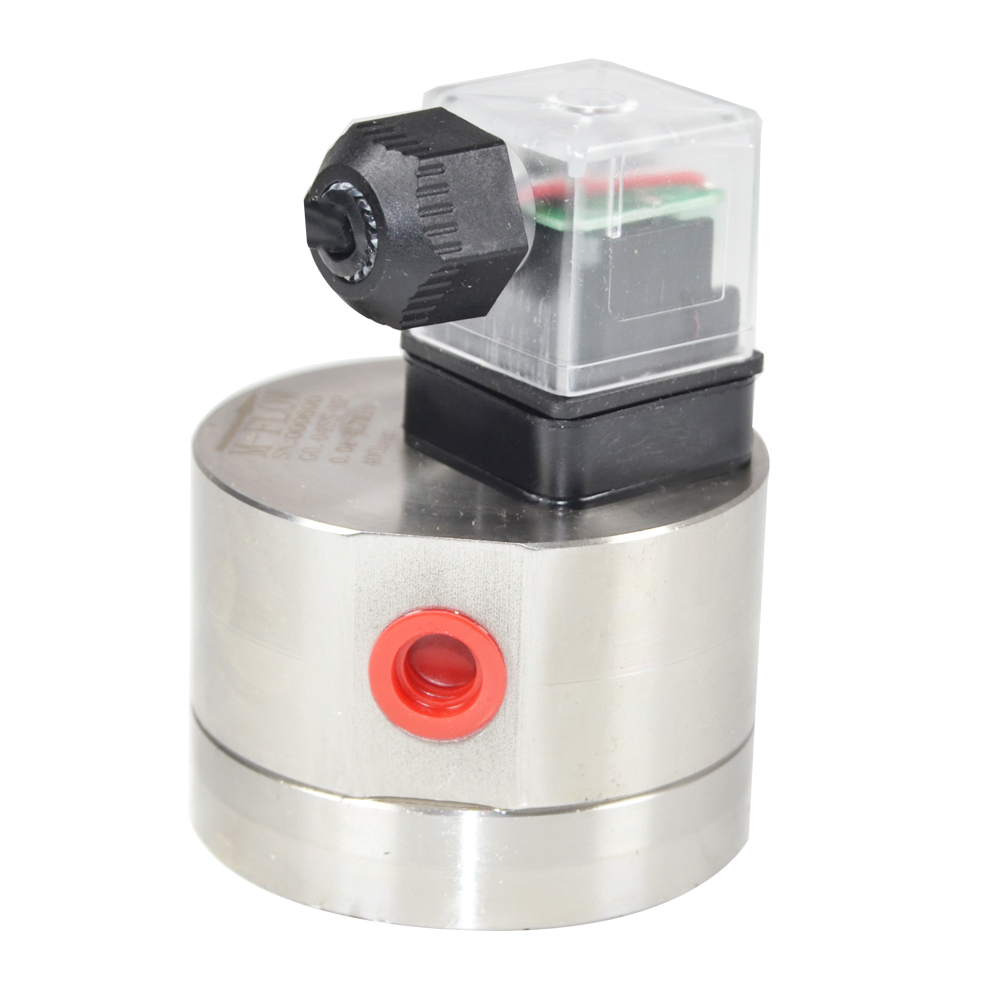

JSN micro gear flow meter for polyurethane spray foam machine

sales01@cxflowmeter.com

Polyurethane combined polyether flow meter, polyurethane carbon dioxide flow meter

1. Working condition analysis:

medium:

Material A: combined polyether (POL)

Material B: carbon dioxide

Viscosity: POL: 2000cp

Flow: POL: 0-10l/min Carbon Dioxide: 20ml/min

Temperature and pressure: normal temperature. Pressure: 150kg

Power source: pressure tank (injected by the plunger pump)

Detection method: flow monitoring (control the proportion of AB components)

Display: No need to display, just receive a pulse signal.

Specific working conditions: How to realize the monitoring and control of the proportion of the two components on the high-pressure foaming

machine used by the customer? The flow of the two components is transmitted to the on-site PLC through the pulse signal of the flowmeter.

 When there is a difference between the set flow and the actual flow (the flow value monitored by the flowmeter), adjust the pump or valve on

 site to achieve proportional control.

2. Industry analysis:

1. Why use a flowmeter:

Because the environmental protection requirements of the country are getting higher and higher, the foaming agent used in this industry

before is mostly freon, which is not environmentally friendly and needs to be banned by the country. Replacing Freon with carbon dioxide is

not only environmentally friendly but also cost-effective. However, there is a problem in this. Freon can be produced by mixing it in advance

according to the proportion, but carbon dioxide cannot be controlled, and the specific gravity can only be accurately measured by a flow meter

 when it is used.

2. Disadvantages of not using flowmeter:

A. The addition of more or less AB materials can not be found in time, resulting in an increase in equipment scrapping.

B. In the case of uneven dispensing, the staff cannot receive the alarm signal in time, and the original work plan will be disrupted after knowing

 it. What's more, when the goods are delivered to the customer, the customer will find that it will have a huge negative impact on the cooperation

 and will also damage the company's professional image.

If you want to know more about the specific application selection and quotation of JSN polyurethane combined polyether proportional control

 flow meter, please contact winny:sales01@cxflowmeter.com
