Specification for installation of electromagnetic flowmeters

Date:2019-12-18 source:

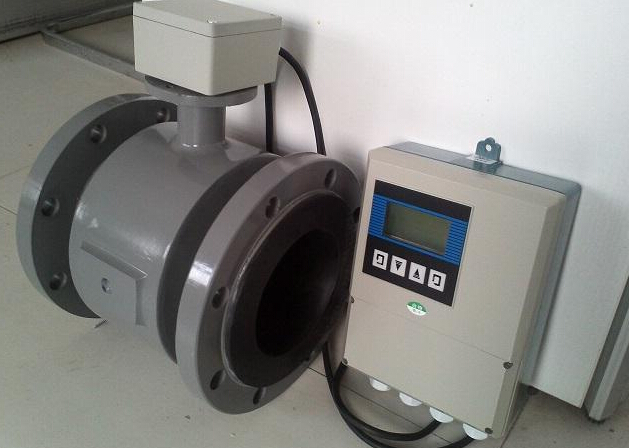

Specification for installation of electromagnetic flowmeters. Electromagnetic flowmeters are divided into tube type electromagnetic flowmeters and plug-in type electromagnetic flowmeters.These two kinds of electromagnetic flowmeters have the similar place to install the regulation also has the different place, does everybody have what to understand to this?In a word, both of them are the requirements of environmental factors and installation methods.Specification for installation of electromagnetic flowmetersSpecification for installation of electromagnetic flowmeters

Electromagnetic flowmeter installation site standard

1, according to the precise measurement of the different target to select installation site, for example, to accurately measure component liquid, meter can not installed in the liquid mixture in the middle and lower reaches of asymmetrical, to accurately measure mixed phase fluid mechanics, should choose is not easy to separate cause fluid mechanics field, accurate measurement of exothermic reaction line, shall be installed in the middle and lower reaches of pipeline.

2, can not be installed in the part that can make the pipeline into air pressure.

3. The selected site shall be stable and free from vibration.

4. It is not allowed to choose sites that are prone to interference signals, such as those with motors and transformers.

5. The sensor can be installed at the appropriate site of the independent grounding device.

6. High concentration corrosive vapors are not allowed around the site.

7. The site should be protected from the sun.

Installation method

1. It shall be installed at the lower level of the horizontal pipeline and vertically upward, so as to prevent installation at the peak of the pipeline and vertically downward;

2. It shall be installed at the elevation of the pipeline;

3. Install the sewage pipeline at the mouth of the pipeline, and install it at the lower part of the pipeline;

4. If the pipeline undulations exceed 5m, install the automatic exhaust valve in the middle and downstream of the sensor;

5. Pressure regulating valve and emergency cut-off valve should be installed in the middle and downstream of the sensor. The manufacturer can be contacted when the front 130 is connected to the middle 2329 and the back 0389, but not installed in the upstream and downstream of the sensor;

6. The sensor must not be installed in the pump import and export trade, should be installed in the pump inlet and outlet.

The flow meter can meet the needs of most markets, including water, oil, food, lubricating oil, chemistry, cosmetics, ink, pharmaceutical, coating, petroleum, automobile, glue, polyurethane, electrolyte and additives.
