Diesel fuel flow meter

Function introduction Function introduction

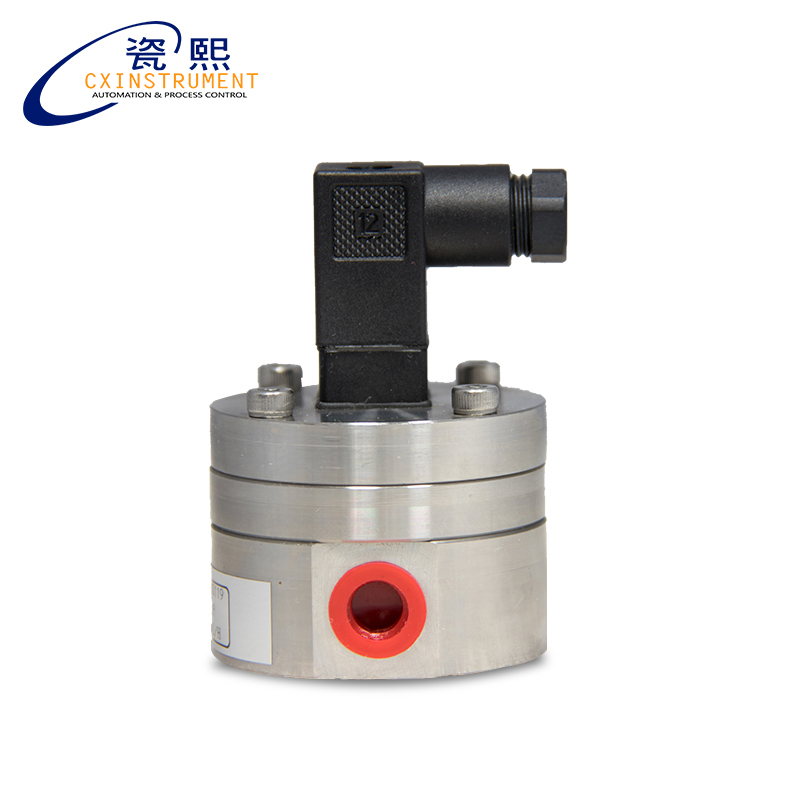

Diesel fuel flow meter  CX-OGM-25-D-P


The standard type is 0.5%,for some special medium the accurcy is 0.2%.The min flow range is 0.5ml/min,The M2.1-AL flow range is 0.5~150ml/min.

The standard type is 32Bar and 80℃,But can customized  for 1000Bar and 150℃.The micro flow measurement wiht display instrument could reach the dosing and upper and Lower Alarm.

The micro flow measurement with stainless steel 316lL and Aluminum material to suitable for the medium.The micro flow measurement suitable for Hydraulic system;Painting;Test Bench and more.

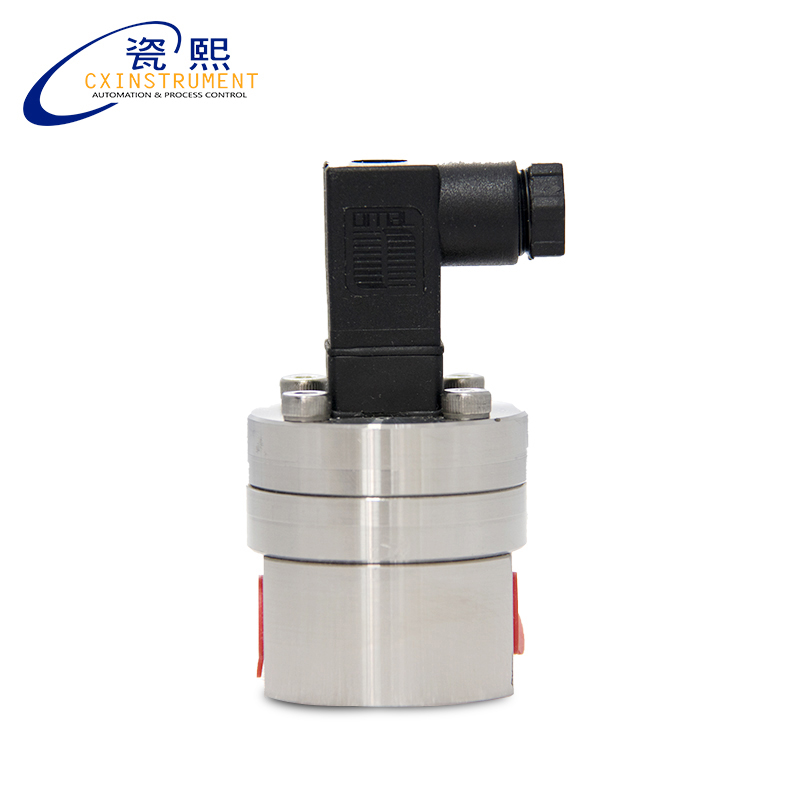

low volume gear flow 3.jpg

Feature of Diesel fuel flow meter  CX-OGM-25-D-P

min flow : 20L/MIN

max flow :120L/MIN

accuracy:0.5%

pressure:1.0MPA

with LCD display

pulse output

female connection

with reset function

without filter"


The Diesel fuel flow meter  shall avoid ferromagnetic objects and equipment with strong electromagnetic field (such as large motor, large transformer, etc.), so as not to affect the working magnetic field and flow signal of the sensor. Flow signal line and excitation line between sensor scoop converter. However, from the analysis of damaged parts in lightning fault, most of the induced high voltage and surge current are introduced from the power line of control room, and the other two ways are less. Because electromagnetic flowmeter has more chances to measure suspended solids or dirty bodies than other flow meters, the failure probability of inner wall adhesion layer is relatively high. If the conductivity of the adhesive layer is similar to that of the liquid. The common faults during commissioning period are usually caused by improper installation.
