Flow meter test bench

Flow meter test bench ,Contact email: leon@microflowmeter.com

Flow meter test bench technology in the world has been quite mature, we are more common in the country DTO, OGM series, but the measured medium if the viscosity is low, the flow is too small, the leak of domestic flowmeter error is very obvious, can not guarantee the accuracy , Second, the measured medium temperature is too high, the error will increase, and the gear will be stuck may. After long-term use of Flow meter test bench its internal gear will be corroded and worn, thus affecting the measurement accuracy . This greatly increased the user's maintenance costs.While deep base Flow meter test bench using Siemens CNC machining center, the cutting height of 0.001mm precision, small flow can be measured to 0.1m / min, the temperature up to 200C, etc., in fact, these parameters have been Reached a higher level in the world, and even surpassed Clarke, San Mai, Aobal, Kebao, and other imported gear flow meters, and the deep flowmeter used to ensure that the life of more than 8 years.

Shanghai JSN Micro Flow Meter CO.,LTD main products: super micro liquid flow meter,flow meter test bench ,mass flow meter.spur gear flow meter,gear pump,gear metering pump etc dozens of categories of instrument products.Since it's established, "Pursuit of excellence, creation of quality products, honesty and credit, and dedication of first-class" are our unchanging pursuits, and the ultimate goal of customer satisfaction is our marketing services. In order to continuously improve our products and services, we are making unremitting efforts! The purpose of the company is to provide and recommend a variety of effective and reliable measurement methods based on our many years of work experience. We sincerely welcome all groups or individuals from all walks of life to join our company in order to achieve common development and improvement, make the due contribution to the motherland automation industry.

Flow meter test bench is a new type of volumetric flowmeter, in addition to a positive displacement flowmeter with high accuracy, the flow is not sensitive to other advantages, there are the following advantages: Wide range, usually in the flow meter is 10: l, and Deep flowmeter is generally 100: 1, or even 1000: 1, the accuracy is still above 0.5%, suitable for high pressure flow measurement, the maximum pressure can reach 100Mpa, especially suitable for the measurement of small flow, the minimum measurement limit can be 0.3ml / min , Less affected by the viscosity characteristics of the medium, suitable for flow measurement under various viscosity conditions.

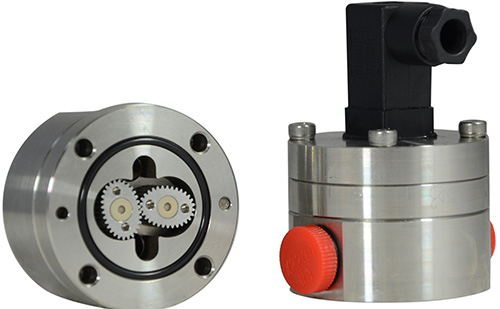

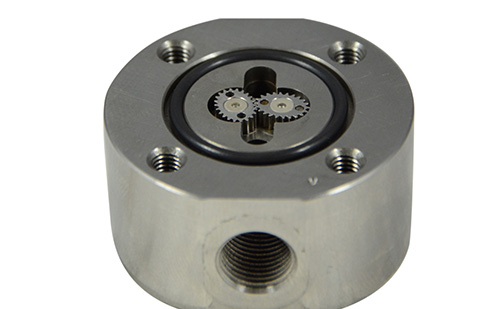

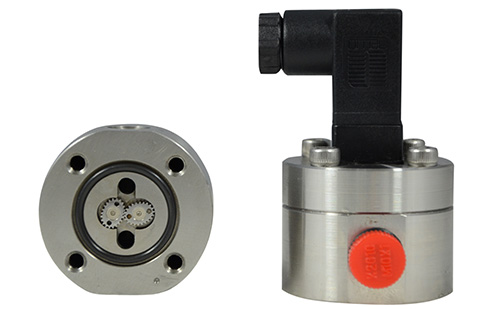

The Flow meter test bench is composed of a flow transmitter and a counting mechanism. The main part of the transmitter consists of a measuring chamber equipped with a pair of gear rotors and a sealing coupling. The counting mechanism consists of a speed reducing mechanism, a precision adjusting mechanism, a counter and a power Pulse transmitter and other components.

1、Luoyang Hydraulic Valve Measurement and Control: We know that hydraulic valves, hydraulic pumps, and hydraulic cylinders have a large turndown ratio, and need to detect hydraulic leakage in the test. Some of them require a hydraulic flowmeter with a 1:1000 ratio, and the customer found us at that time. It is to test the leakage of the hydraulic valve, test No. 32 hydraulic oil, leakage amount is 5ml/min
2、SAWCORLTD is a large-scale automobile painting company. The customer uses a spray paint which is a mixture of a certain percentage of resin, butyl acetate and other solvents. To control the quality, it is necessary to ensure that the flow rate is 20ml/min, less than 19ml/min or Above 21ml/min need alarm.
