Liquid flow meter

liquid flow meter, Contact email: leon@microflowmeter.com

With the development of society, the state pays more and more attention to the process automation instrumentation industry. However, the Liquid flow meter industry has been in a vacancy and has been monopolized by major foreign brands such as Max, KRACHT, OVAL, etc. , People have long endured the expensive, long delivery, the sale can not be resolved in time and so on, such as semiconductor chip cutting a set of equipment on the millions, once the instrument problems, loss unimaginable, the slayer saw these phenomena, Resolutely resigned as senior engineer in the position of Siemens, the establishment of Shanghai Ji-sheng Instruments Co., Ltd., with great concentration on research and development of gear flow meter. We have Liquid flow meter has been awarded a number of certificates, it is no exaggeration to say that Qishen production Liquid flow meter For example, many customers replace the OVAL LSF40 with our CX-M5-AL

because it costs less than half of the LSF40, but has twice the range than it does and has the same accuracy.
Shanghai JSN Micro Flow Meter CO.,LTD is a famous manufacture who produces instruments. It was founded by previous Siemens engineer, Mr Stone. He devoted himself into mirco flow meter,liquid flow meter ,coriolis mass flow meter,electromagnetic flow meter,piston flow meter,spur gear flow meter,gear pump,gear metering pump. Our flow meters have already occupied not only large market but our clients' hearts. JSN has already been the pronoun of automation instruments. We not only offer you processing-control instruments that with high quality but also offer you one-stop service. We are always your professional support and guarantee. Our delivery is within 3-7working days. If you have special requirments, we can customize for you based on your parameters and the delivery time is about 3-4 weeks.

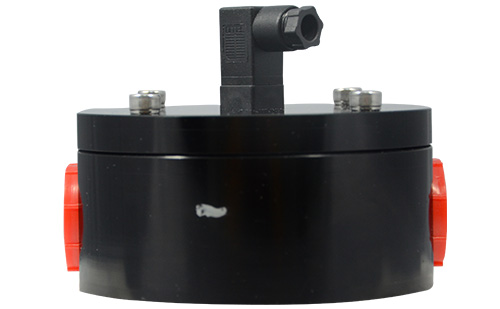

Liquid flow meter, belonging to a type of volumetric flowmeter, cylindrical shape, with import and export, according to the media with a custom filter. Small size, light weight, easy installation, compact structure, without too much maintenance; other The range ratio is very wide, generally more than 1: 100, the minimum flow rate can be measured to 0.3ml / min; and the linearization accuracy can reach 0.5% FS of full scale, so the use is very wide and can be used for measuring, regulating, controlling and distributing High and low viscosity, or corrosive liquids, and there are health-type, explosion-proof for a special environment.

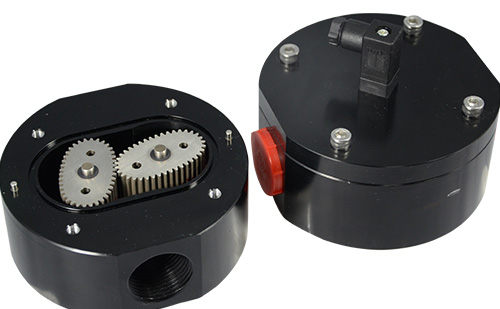

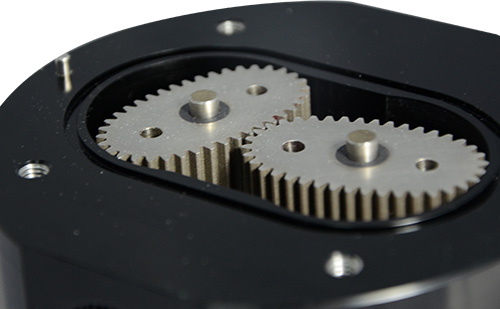

When the liquid to be measured enters the Liquid flow meter through the pipe, a pair of gears are continuously rotated due to the pressure difference between the inlet and the outlet, and the liquid measured by the initial cavity is continuously conveyed to the outlet. The number of rotations of the gear is The product of four times the displacement is the total amount of the measured liquid flow. Therefore, we can see from the measurement principle of the mirco flow meter that it depends on the indenter of the measured medium to drive the elliptic gear to rotate and measure. , has nothing to do with the fluid flow state.

1、SAWCORLTD is a large-scale automobile painting company. The customer uses a spray paint which is a mixture of a certain percentage of resin, butyl acetate and other solvents. To control the quality, it is necessary to ensure that the flow rate is 20ml/min, less than 19ml/min or Above 21ml/min need alarm.
2、Han's laser chip cutting: Han's laser is the world's leading manufacturer of laser processing equipment. In the semiconductor chip production process, because of heat generation, it is necessary to continuously spray cutting fluid, and our laser equipment and chips are high-end industries. High quality requirements, a slight careless product quality will be seriously affected, so Han's laser strictly to control the flow in 2ml/min.

liquid flow meter, Contact email: leon@microflowmeter.com
