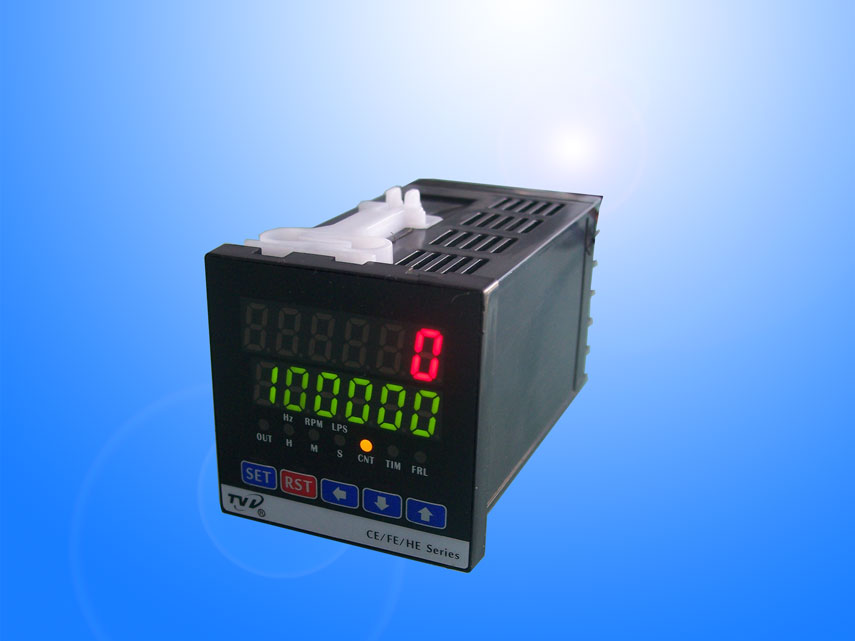

CV8S User manual

Function introduction Function introduction

The CV8S Operation manual

A. Feature

1.    Smart key to lock parameters .And with parameter locking safety feature prevents other people free to modify;

2.    Meter with double LED and 6-digital display. multi indicate the operating states;

3.    Power supply with 9-36VDC or 90-265VAC;

4.    EEPROM data memory and kept about 10 years;

5.    CE certification and EMC Anti-interference;

6.    Modulus free to set;

7.    Manual and automatic reset feature;

8.    Data memory when Power cut feature;

9.    Free set output signal hold time.


B. Parameters











Same

Para

-meters

Supply

AC90-250V  50/60Hz(customized for AC/DC24V supply)

Power

<3W

Relays work life

Mechanical   life: 500 million times

Electrical   life: 10 million times(Within the rated load)

Relay  capacity

250VAC/3A or   30VDC/5A

Environment

-10   ~ 50 (no icing);35 ~ 85% RH (humidity)

Insulation   resistance

≥20MΩ;   1.5KV/1M

Input signal

Square   wave, Positive wave Pulse signal

2VH30V:0L1V

Input   resistance

≥10KΩ

Supply   Output

Feed   24VDC

Weight

<500G

Counter

Para

-meters

Input Speed

30/1000cps

Scaling factor range

00.000 ~ 99.999 or 0.00000 ~  9.99999

Output hold   time

0.00 ~ 99.99S

Total Range

00.0000 ~ 999999


C.Instruction

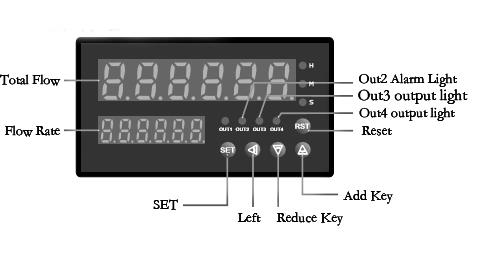

Code

Attributes

Explanation

 1

Top   LED

Cumulative value

        Display  Window

 2

Bottom   LED

Flow Rate Display window

 3

OUTred

Alarm lightout4and out3.Light   when alarm is active

(The timing mode is R , Shiny   delay period, the lower the delay time countdown)

10

SETgreen

1.In normal indication, pressing the button 30 seconds to enter   the parameter setting group.

2.In parameter edit mode, press to modify the value of the store   and go to the next parameter

11

 Left

   Alarm Set

1.In normal display, press this key to enter the SV set value   modification

2.In the parameter setting, press to enter the parameter   modification mode

3.In parameter edit mode, press the flashing cursor can be rotated   to the left to move

12

     Down Set

Parameter edit mode, press to move the cursor   down to decrement the value at the blinking

13

     Up Set

Parameter edit mode, press to move the cursor blink values of   increasing upward

14

Reset

In normal display, press this key to perform the count or time   zero setting

12+13

     Complex

Any setting screen, press the key composite key to return to the   normal display



Note:The Attachment is Operation manual

CVS  Operation Manual md(2).pdf
