1) JSN is top 10 manufacturer to produce fuel consumption measurement
2) Siemens CNC system and Cutting accuracy up to 0.001mm
3) Dial is 360C rotation to easy installation and read.
4) Anti-water,anti-dust and anti-vibration.
5) National patent product: No.ZL201120213703.4
6) Working life is 5~10 years.

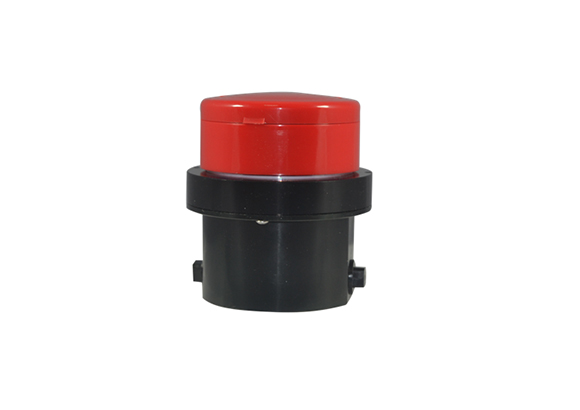

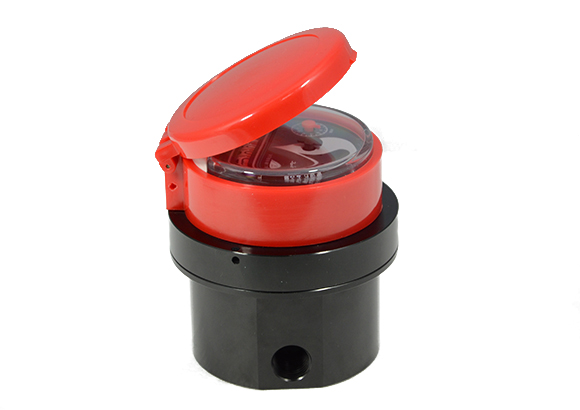

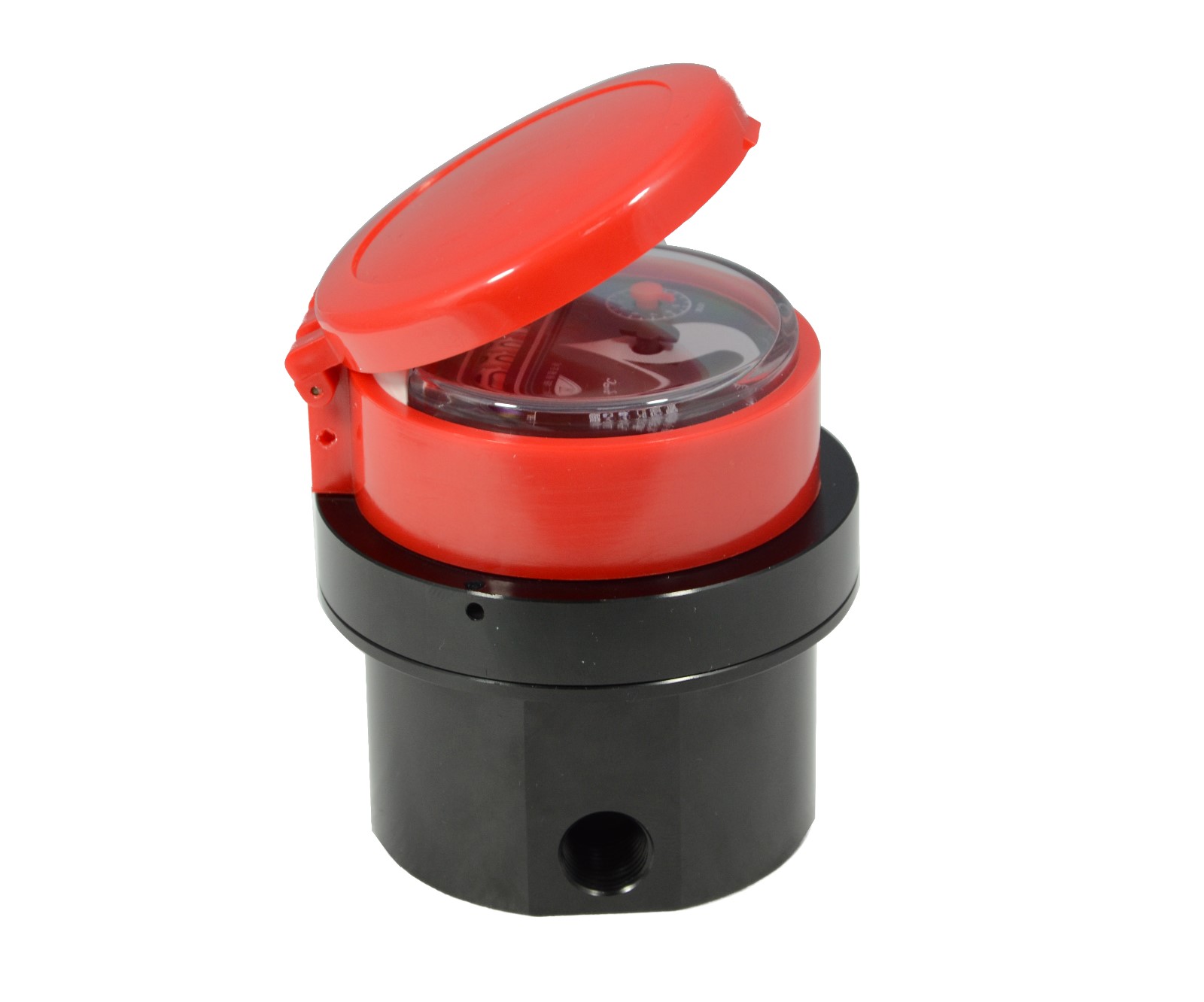

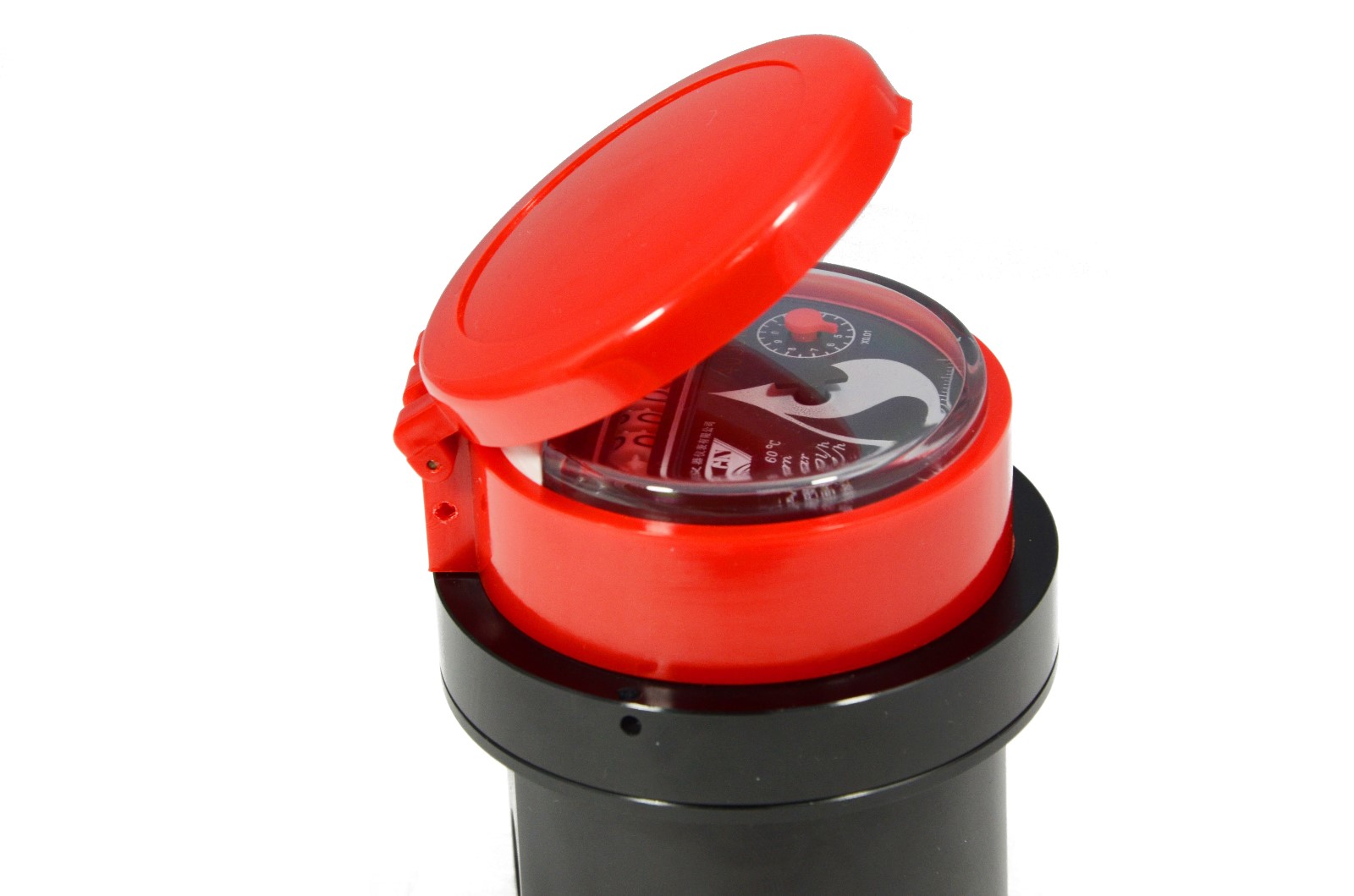

Fuel consumption measurement, as known as Positive displacement flow meter, measure volumes of fluid flowing through by counting repeatedly the filling and discharging of known fixed volumes.
JSN fuel consumption flow meter is made by former Siemens engineer and also use Siemens CNC system, the cutting accuracy is up to 0.001mm. this is basic equipment that ensure JSN to produce good fuel consumption flow meter. The rang ratio of JSN fuel consumption measurement can be up to 100:1, the working life is 5~10 years, the accuracy is up to 0.2% , and it’s in whole working life of rotary piston flow meter, clients can have much benefits only from this side if compare JSN rotary piston flow meter with others. It has can measure liquid with widely viscosity, from water to 10000 cp.
Basic Parameters
Model: CX-FM-V8R
Flow Range: 4~200 L/h
Accuracy: 0.5%
Temperature:-30~120C
Pressure: 32 Bar
Material : brass calculate cavity
Output: Pulse (2p/l or 1p/l)

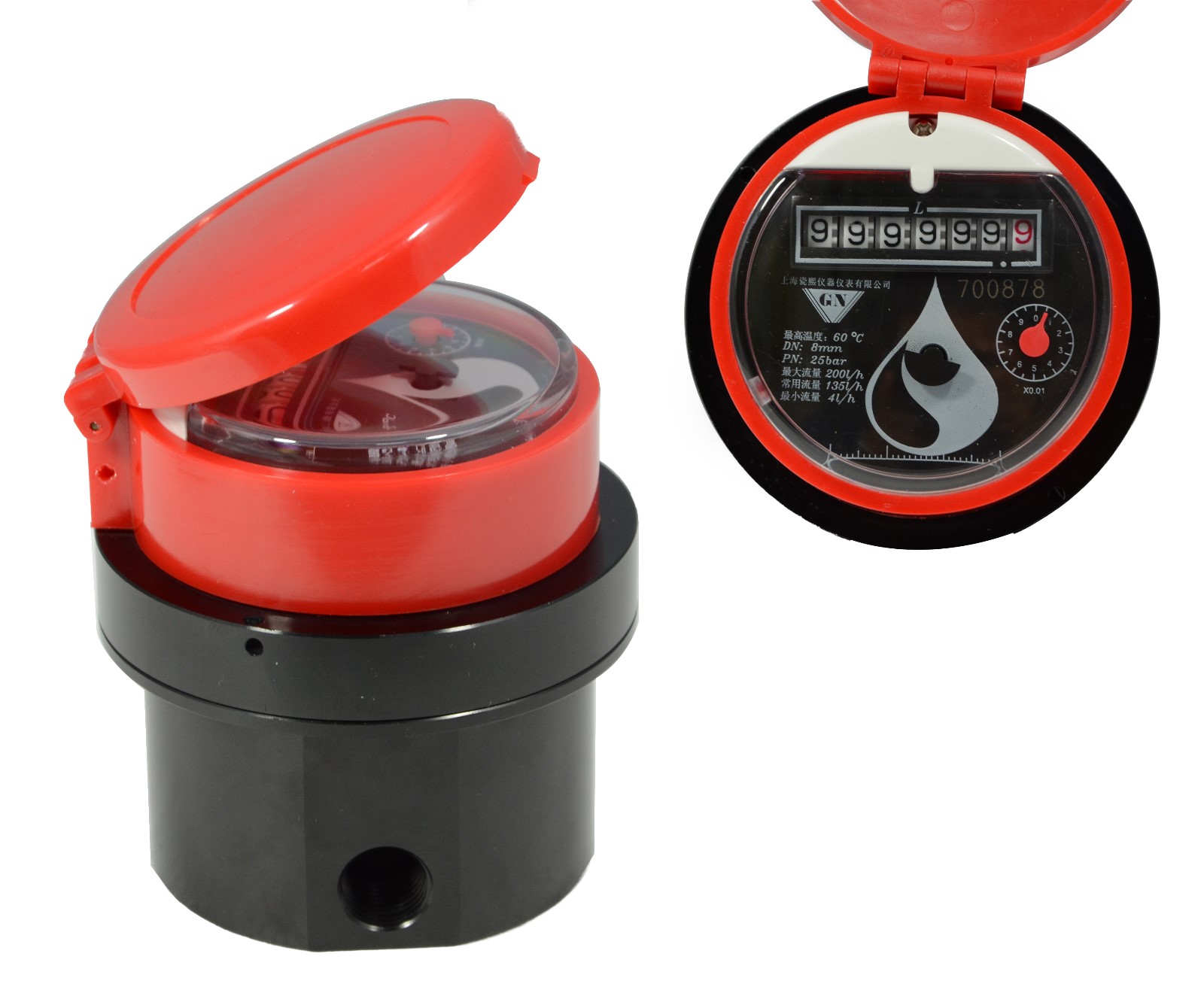

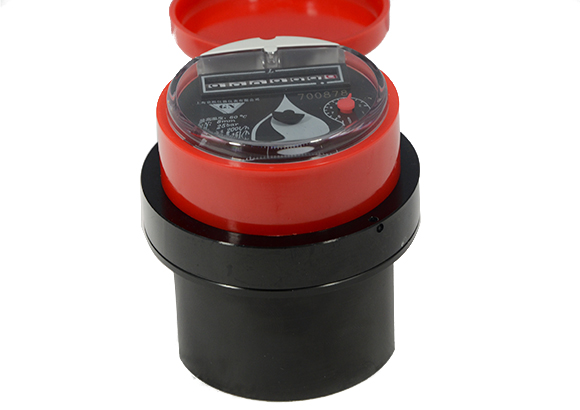

Display: Local mechanical display
Connection:M15*1.4 thread connection
Electrical connection
Connection for hall sensor (3 wires) | Connection for reed switch (2 wires) |
Power supply:5-18VDC (customized for 3-26VDC) Red wire: power supply Black wire: GND Yellow wire: signal Model:V4/8-OEM-3,V4/8R-3,V4/8BR-3 | Power supply:5-36VDC Note:(no positive and negative difference) Model:V4/8-OEM-2,V4/8R-2,V4/8BR-2 |
1) It’s the best flow consumption flow meter (counter) to manage fuel consumption. the accuracy is better than 1%.
2) It’s our patent product and certificate is issued by State Intellectual Property Office, number is ZL 201120213703.4
3) We are the leading manufacturer of fuel consumption flow meter in China.
4) Monitor fuel consumption in modern way by connection with GPS.
5) The rotary piston flow meter you could choosed by the power of engine.V8 suitable for beyond 200KW.the flow range is 4~200 l/h.
JSN fuel consumption measurement combines economy with high performance due to large scale production. JSN ensure delivery time is in 7~9 working days for each model. It is also the good proof for eng enterprise strength. Our 80% rotary piston flow meter is exported to more 100 countries every year. As benchmarking manufacturer in flow meter, JSN company have good reputation from all over the world and also build formal cooperation with top well-known enterprise or institution ,even the top 500. such as BYD Auto (Build Your Dreams), SANAN OPTOELECTRONICS co., ltd, HAN's LASER , Shanghai Volkswagen ,Mcdonald's, Universitetet i Oslo, Peking University ,Chinese Academy of Sciences etc. clients. Satisfaction of customers is the best proof of quality.JSN Rotary piston flow meter was without quality complaint in 3 years.
The manufacturer provides free warranty for 18 months, the users should be responsible for the one-way transportation fee from the customer to the factory.
The manufacturer provides instrument installation for our customers, and the charges will be made according to the cost.
For any hardware failure of the instrument, we recommend that our customers send back the instrument to our factory for service, due to the fact that the instrument is made of micro processors and it will be difficult to perform field maintenance. Before sending back the instrument, please try to contact the factory first to make sure what the problem is.
For other operational problems, please contact our service department by telephone, fax or email and internet. In most cases, the problem could be solved immediately.
