Top Selling Customizable industrial digital pirani vacuum gauge sw1-1

Date:2020-09-17 source:pirani vacuum gauge


The pirani vacuum gauge is based on atmospheric pressure and is used to measure instruments less than atmospheric pressure.

The vacuum pressure gauge is suitable for measuring the vacuum pressure of liquid and gas without explosion, crystallization and solidification,

 and without corrosion to copper and copper alloy. It is widely used in gas transportation, pipeline liquid and closed container to measure

the pressure of various liquids, gases and vapors without corrosivity, explosion risk, crystal free and non condensable solid, such as various

industrial automatic control environment, involving petroleum pipeline, water conservancy and hydropower, railway transportation, intelligent

building, production automation, aerospace, military industry, petrochemical, oil well, electric power, etc Shipbuilding, machine tools, pipeline

air supply, pirani vacuum gauge equipment and many other industries.


Product Name: DN16 Digital Pirani Vacuum Pressure Gauge

Wetted material: SS316L,tungsten, kovable, glass

Measuring range: 1.0×10-1  ~ 1.0×10+5 Pa(Air,N2)(other gas need to calibrate accordingly)

Accuracy:

1.0×10-1  ~ 1.0×10+4 Pa:±15%


1.0×10+4  ~ 1.0×10+5 Pa:±50%

Repetition:

1.0×10-1  ~ 1.0×10+3 Pa:±2%


1.0×10+3  ~ 1.0×10+5 Pa:±5%

Data collection: Resolution: 1%; response time: <100ms

Working temperature:  0°C~+45°C;

Storage temperature: -40°C~+75°C

Weight: 155g(DN16ISO-KF flange)


Digital Pirani vacuum gauge is a contain Vacuum sensing, display, control, and wired RS485, wireless data transmission and Other functions.

  Wetted material

SS316L,tungsten, kovable, glass

  Measuring range

1.0×10-1  ~ 1.0×10+5 Pa(Air,N2) (other gas need to calibrate accordingly)

  Accuracy

1.0×10-1  ~ 1.0×10+4 Pa:±15%

1.0×10+4  ~ 1.0×10+5 Pa:±50%

  Repetition



1.0×10-1  ~ 1.0×10+3 Pa:±2%

1.0×10+3  ~ 1.0×10+5 Pa:±5%

  Data collection

Resolution: 1%; response time: <100ms

  Temp characteristics

Working temperature: 0°C~+45°C; Storage temperature: -40°C~+75°C

  Power supply

with +24V/0.3A charger;

  Electrical signal interface

DSUB9,9-pin(RS485, Analog voltage, power input)

  Vacuum chamber

Interface: DN16ISO-KF (other optional); maximum pressure: 1.5×10+5 Pa

  Weight

155g (DN16ISO-KF flange)

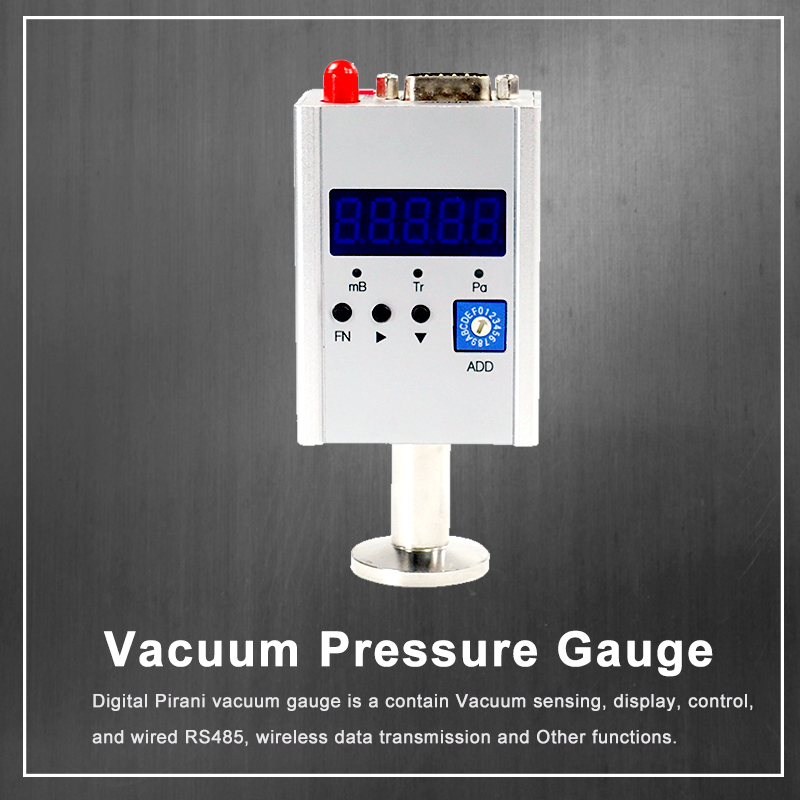

vacuum gauge-31.jpg
