New Design Diesel Flow Meter

Date:2016-11-03 source:Shanghai JSN Micro Flow Meter CO.,LTD

The New Design Diesel Flow Meter


Introduction:The diesel a light petroleum products,complex hydrocarbon mixtures.it's fuel for diesel engine.divide into light diesel and heavy diesel.

Application:Because of the thermal efficiency of diesel is higher than gasoline,more power and economic.So apply to large car ,boat and generator.

The diesel viscosity is 3.0~8.0mm2/s and the flash point is 180C~370C.

Because of the Diversity working conditions ,The JSN micro flow meter with the high accuracy ,reliability and stability to reduce the repair work even without repair.


The JSN micro flow meter,leaned the advanced technology from foreign flow meters.After the excellent design by Mr.Tu(Former Siemens engineer) With simple structure,lightweight,high accuracy,high frequency ,low response time and long working life. with the high resolution,+/-0.2 linearization and low flow rate accuracy ,the JSN micor flow meters are the leading choice for both dynamometer and over-the-road testing.The M series model M2 flow meter is our most popular gasoline and diesel flow meter offering 0.01ml/pulses.

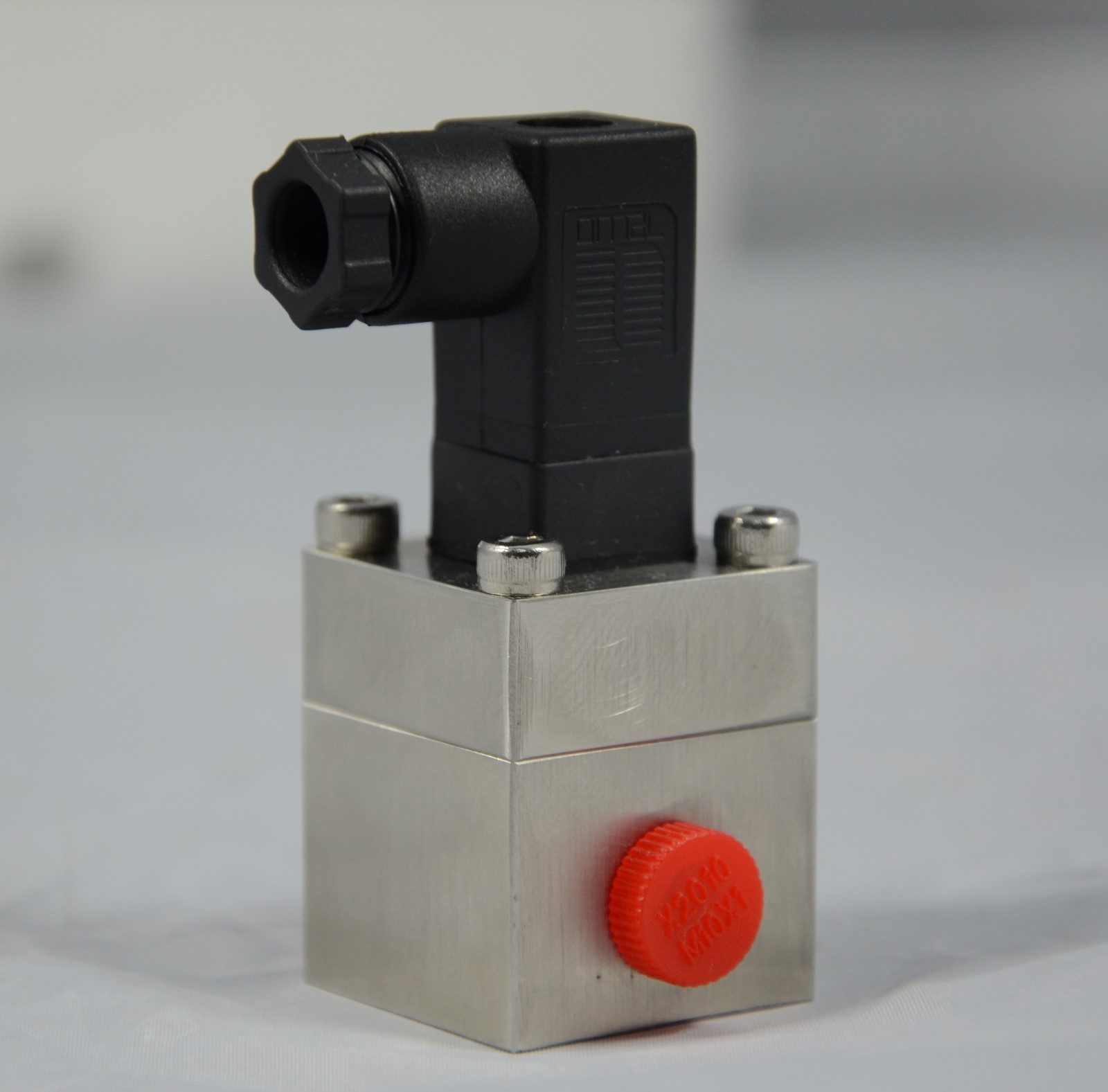

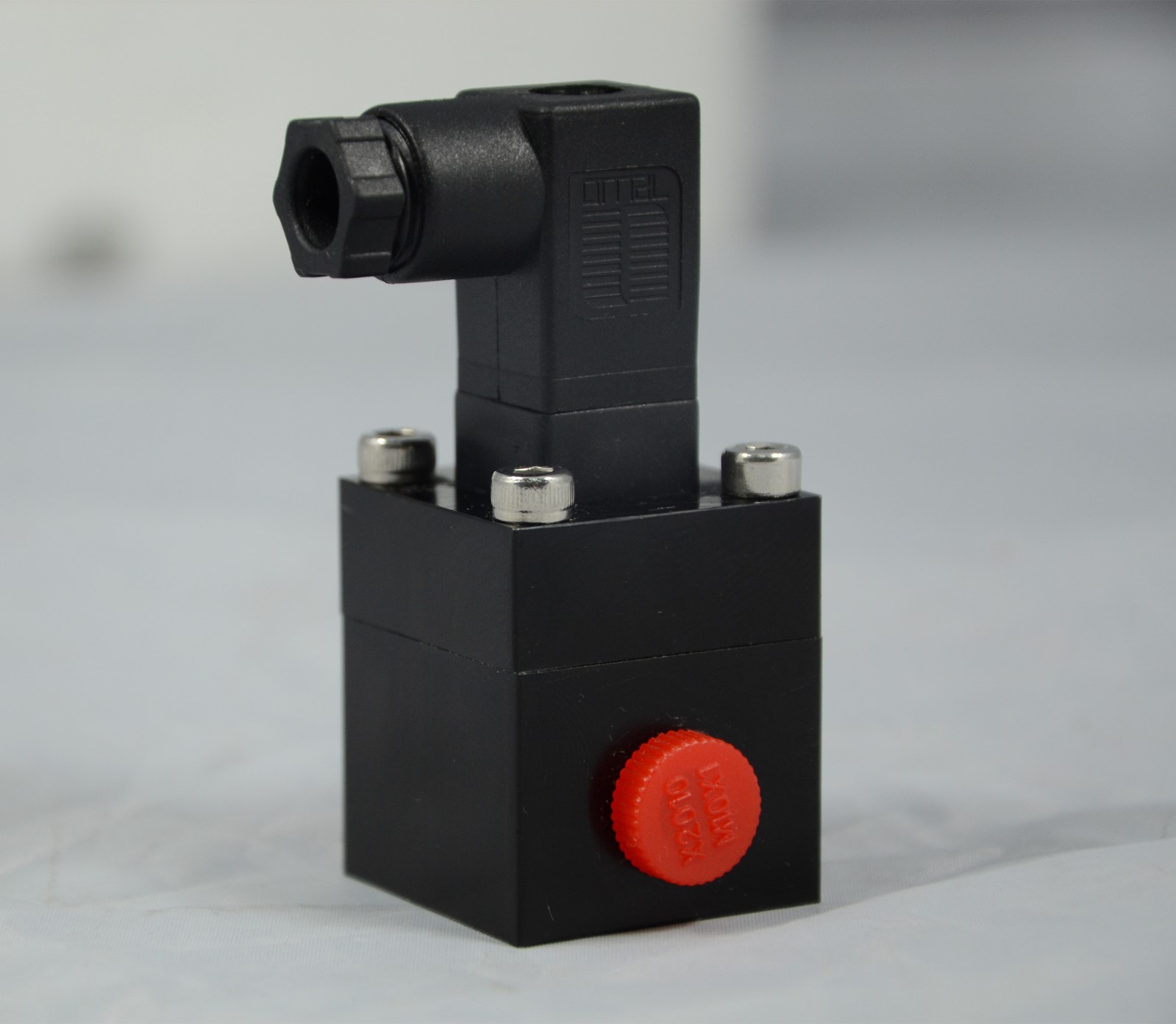

positive displacement meters are not sensitive to changes in flow profile,fluid density or viscosity.So the same flow meter is appropriate for gasoline ,diesel fuel,any methanol or ethanol blend and can also be used for Viscor. the new designed micro flow meter's material is stainless steel 316 or Aluminum body material and stainless steel 316 oval gear .In order to satisfy the every working condition and market demand.


The stainless steel material could anti-corrosion.The high quality oval gear and bearings to increase the working life and reduced the wear of micro flow meter.


The diesel flow meter's working condition is more complex and harsh.Installing on the large cars and boats.Because of the shank environment ,the flow state of fluid would change.Many diesel flow meters can not test.But the JSN micro flow meter's principle is oval gear,So it not affected by the flow state.Moreover,the flash points is 180C~370C,it with burning possibility.So the diesel flow meter must with explosion proof.The JSN micro flow meter with CT6 explosion proof.


The JSN micro flow meter is suitable for diesel or oil fluid with high viscosity.The diesel flow meter with sophisticated bearings material and Siemens advanced cutting technology to achieve the 0.2% accuracy.Beyond more 60% than other peers.

In addition,the diesel and other oil may be with impurities.So you must install filter equipment with diesel flow meter.The JSN micro flow meter's min flow is 0.3ml/min,the oval gear is special tiny.May be a small impurities could cause the oval gear to stop turning .So user must pay attention to the purity of the diesel.

Specification:

Measuring range:0.3ml/min~100L/min;

Accuracy:0.5% or 0.2%(due to the viscosity);

Max pressure:100Mpa;

Temperature:-30C~80C(Customized for 200C).

Size:DN2,3,5,6,9,12,25,40,50

    If you would like to know more details and a quote for a similar project, Pls Let Us know.
