JSN high viscosity liquid fluid micro gear flow meter

Date:2022-06-10 source:Shanghai JSN Micro Flow Meter CO.,LTD

sales01@cxflowmeter.com



M series micro flow meter are mainly used in the measurement of lubricating oil, grease, and low-viscosity liquids.

Measurable viscosity up to 1 million cP medium.

Small vibration noise during working, convenient installation.

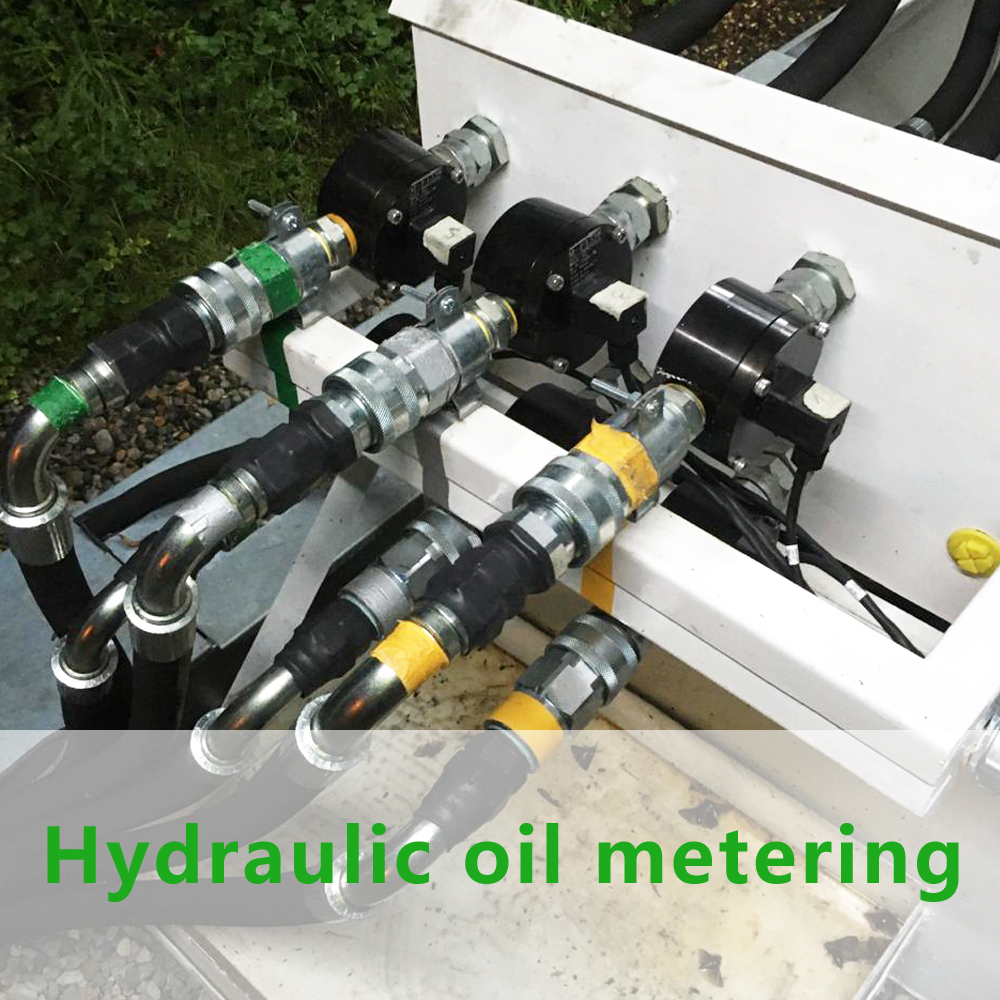

Hydraulic oil metering.jpg


G series is mainly used for dispensing, gluing and quantitative two-component polyurethane glue,

aiming at high viscosity and high resolution flow detection. Measurable viscosity up to

1 million cP medium. Small vibration noise during working, convenient installation.

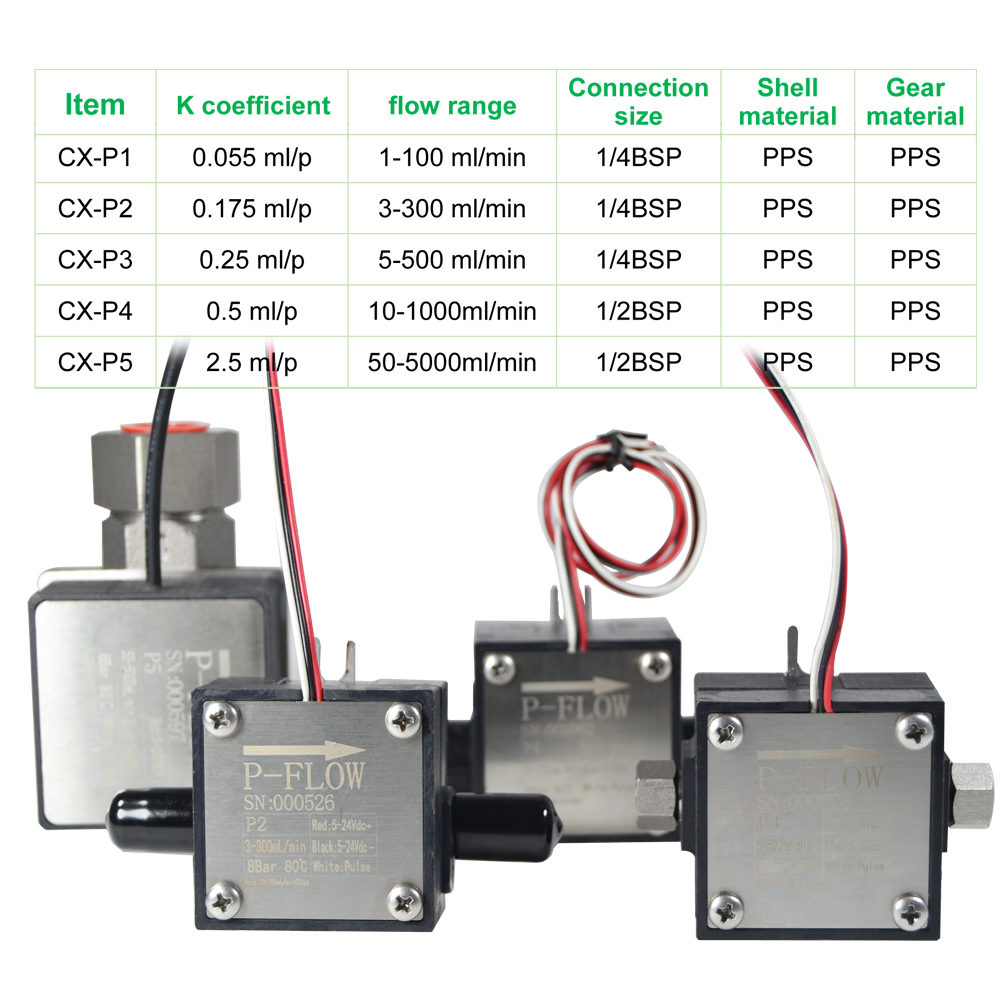

CIXI P series flow meters are all made of corrosion-resistant materials, resistant to acids, alkalis and various solutions, and are

suitable for accurate metering of various chemical medium and low viscosity that cannot be in contact with metals such as stainless steel.

Used in the chemical industry or reactor flow monitoring. Small vibration noise during working, convenient installation.



High resolution gear flow meter For high viscosity medium, it is necessary to carry out precise measurement of trace liquid

under low resistance (pressure loss).

Even in the case of extremely slow gear rotation, a small amount of rotation can still give enough pulse number.



Model

Resolution

Connection size

Flow range

Gear material

Shell material

G0.015AL-HR-SW

0.00025ml/P

G1/8

0.004~500mL/min

SS316L

AL

G0.025AL-HR-SW

0.0006ml/P

G1/8

0.008~1L/min

SS316L

AL

G0.04AL-HR-SW

0.0008ml/P

G1/4

0.02~2L/min

SS316L

AL

G0.2AL-HR-SW

0.003ml/P

G3/4

0.16~8L/min

SS316L

AL

G0.4AL-HR-SW

0.006ml/P

G1/2

0.2~20L/ min

SS316L

AL

G1.0AL-HR-SW

0.01ml/P

G1/2

0.4~40L/ min

SS316L

AL

G2.0AL-HR-SW

0.02ml/P

G3/4

1~60L/min

SS316L

AL




Can be integrated display or with DC8Sremote digital display.4-20mA analog output,

Modbus RTU 485 communication, cumulative alarm, instantaneous alarm, etc.

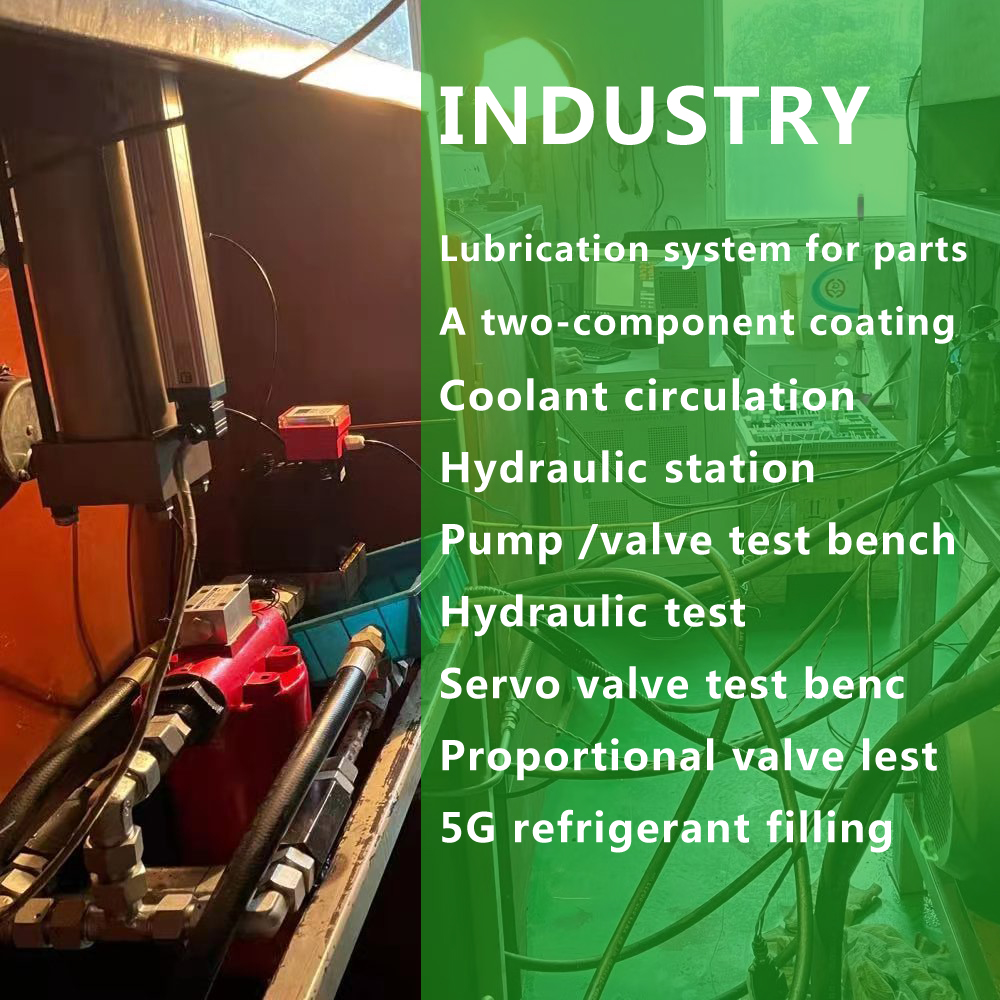

industry 6.jpg


If you want to know more about the features and quotation of JSN micro gear flow meter low flow meter

please contact winny:sales01@cxflowmeter.com
