Rotary Piston Flow Meter

首页 > Product > Rotary Piston Flow Meter > Rotary piston Flow Meter
  • Rotary piston Flow  Meter
  • Rotary piston Flow  Meter
  • Rotary piston Flow  Meter
  • Rotary piston Flow  Meter
  • Rotary piston Flow  Meter
  • Rotary piston Flow  Meter
  • Rotary piston Flow  Meter
  • Rotary piston Flow  Meter

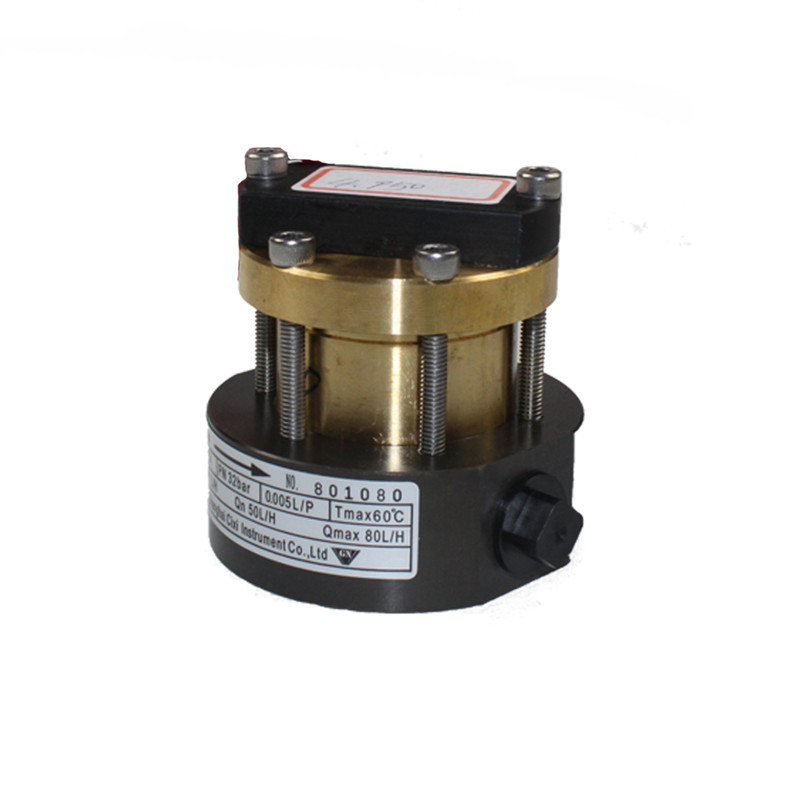

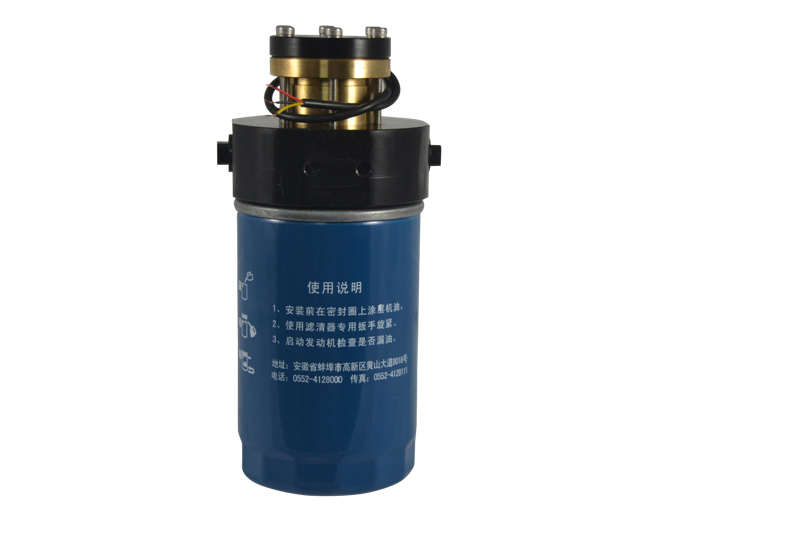

Rotary piston Flow Meter

1) JSN is top 10 manufacturer to produce Rotary piston flowmeter
2) Siemens CNC system and Cutting accuracy up to 0.001mm
3) Dial is 360C rotation to easy installation and read.
4) Anti-water,anti-dust and anti-vibration.
5) National patent product: No.ZL201120213703.4
6) Working life is 5~10 years.

Function introduction Function introduction

Rotary Piston Flow Meter

Description

   Rotary piston flow meter , as known as Positive displacement flow meter, measure volumes of fluid flowing through by counting repeatedly the filling and discharging of known fixed volumes.

  JSN rotary piston flow meter is made by former Siemens engineer and also use Siemens CNC system, the cutting accuracy is up to 0.001mm. this is basic equipment that ensure JSN to produce
good rotary piston flow meter. The rang ratio of JSN rotary piston flow meter can be up to 100:1, the working life is 5~10 years, the accuracy is up to 0.2% , and it’s in whole working life of rotary piston flow meter, clients can have much benefits only from this side if compare JSN rotary piston  flow meter with others. It has can measure liquid with widely viscosity, from water to 10000 cp.

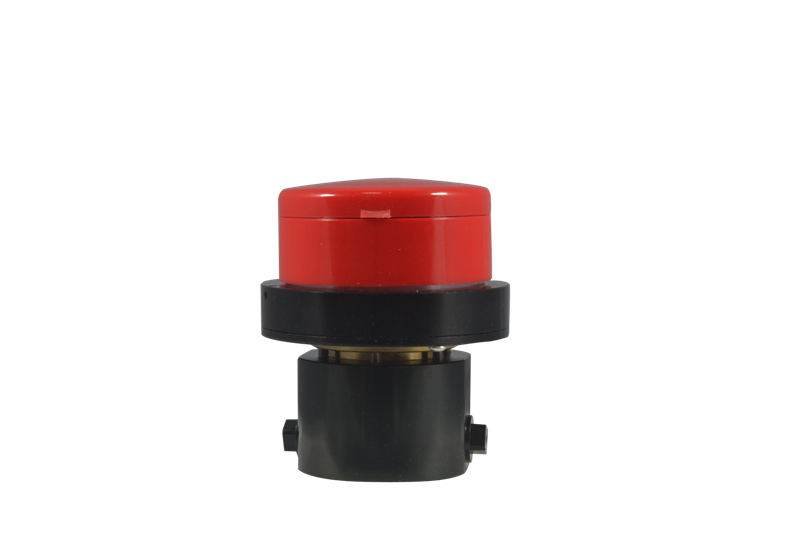

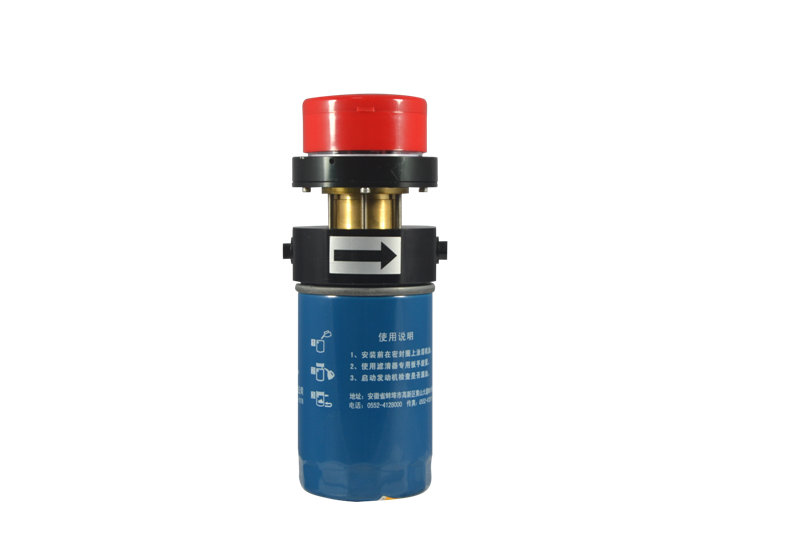

rotary piston flow meter.png  rotary piston flow meter.png



Parameters



1.Model and Parameters

Model

Mechanical

counter

Strainer

Pulse type

Flow range

(L/H)

Accuracy

Thread

Pressure

(Bar)

Temp

(C)

V4

YES

NO

NO

1-100

1%

M14*1.5

32

-40~80

V4B

YES

YES

NO

1-100

1%

M14*1.5

32

-40~80

V4B-OEM-2

NO

YES

Reed

1-100

1%

M14*1.5

32

-40~80

V4B-OEM-3

NO

YES

Hall

1-100

1%

M14*1.5

32

-40~80

V4-OEM-2

NO

NO

Reed

1-100

1%

M14*1.5

32

-40~80

V4-OEM-3

NO

NO

Hall

1-100

1%

M14*1.5

32

-40~80

V4R-2

YES

NO

Reed

1-100

1%

M14*1.5

32

-40~80

V4R-3

YES

NO

Hall

1-100

1%

M14*1.5

32

-40~80

V4BR-2

YES

YES

Reed

1-100

1%

M14*1.5

32

-40~80

V4BR-3

YES

YES

Hall

1-100

1%

M14*1.5

32

-40~80

V8

YES

NO

NO

4-200

1%

M14*1.5

32

-40~80

V8B

YES

YES

NO

4-200

1%

M14*1.5

32

-40~80

V8B-OEM-2

NO

YES

Reed

4-200

1%

M14*1.5

32

-40~80

V8B-OEM-3

NO

YES

Hall

4-200

1%

M14*1.5

32

-40~80

V8-OEM-2

NO

NO

Reed

4-200

1%

M14*1.5

32

-40~80

V8-OEM-3

NO

NO

Hall

4-200

1%

M14*1.5

32

-40~80

V8R-2

YES

NO

Reed

4-200

1%

M14*1.5

32

-40~80

V8R-3

YES

NO

Hall

4-200

1%

M14*1.5

32

-40~80

V8BR-2

YES

YES

Reed

4-200

1%

M14*1.5

32

-40~80

V8BR-3

YES

YES

Hall

4-200

1%

M14*1.5

32

-40~80



2.Pulse Parameters

Model

Pulse equivalent

Min flow

Frequency

(HZ)

Pulse with

(S)

Max flow

Frequency

(ZH)

Pulse with

(S)

V4 OEM-2

200P/L

1L/H

0.055000

18.00

100L/H

4.444000

0.23

V4 OEM-3

200P/L

1L/H

0.055000

18.00

100L/H

4.444000

0.23

V4R-2

2P/L

1L/H

0.000550

1800.00

100L/H

0.044440

22.50

V4R-3

1P/L

1L/H

0.000270

3600.00

100L/H

0.022220

45.00

V4BR-2

2P/L

1L/H

0.000550

1800.00

100L/H

0.044440

22.50

V4BR-3

1P/L

1L/H

0.000027

3600.00

100L/H

0.022220

45.00

V8 OEM-2

80P/L

4L/H

0.088800

11.25

200L/H

4.444000

0.23

V8 OEM-3

80P/L

4L/H

0.088800

11.25

200L/H

4.444000

0.23

V8R-2

2P/L

4L/H

0.000550

1800.00

200L/H

0.044440

22.50

V8R-3

1P/L

4L/H

0.000027

3600.00

200L/H

0.022220

45.00

V8BR-2

2P/L

4L/H

0.000550

1800.00

200L/H

0.044440

22.50

V8BR-3

1P/L

4L/H

0.000027

3600.00

200L/H

0.022220

45.00



3.Electrical connection

Connection for hall sensor (3 wires)

Connection for reed switch (2 wires)

Power supply:5-18VDC (customized for   3-26VDC)

Red wire: power supply

Black wire: GND

Yellow wire: signal

Model:V4/8-OEM-3,V4/8R-3,V4/8BR-3

Power supply:5-36VDC

Note:(no positive and negative difference)

Model:V4/8-OEM-2,V4/8R-2,V4/8BR-2



Feature

   1)It’s the best flow consumption flow meter (counter) to manage fuel consumption. the accuracy is better than 1%.

   2)It’s our patent product and certificate is issued  by  State Intellectual Property Office, number is ZL 201120213703.4

   3)We are the leading manufacturer of  fuel consumption flow meter in China.

   4)Monitor fuel consumption in modern way by connection with GPS.

   5)The rotary piston flow meter you could choosed by the power of engine.V4 suitable for less 200Kw.V8 suitable for beyond 200KW.

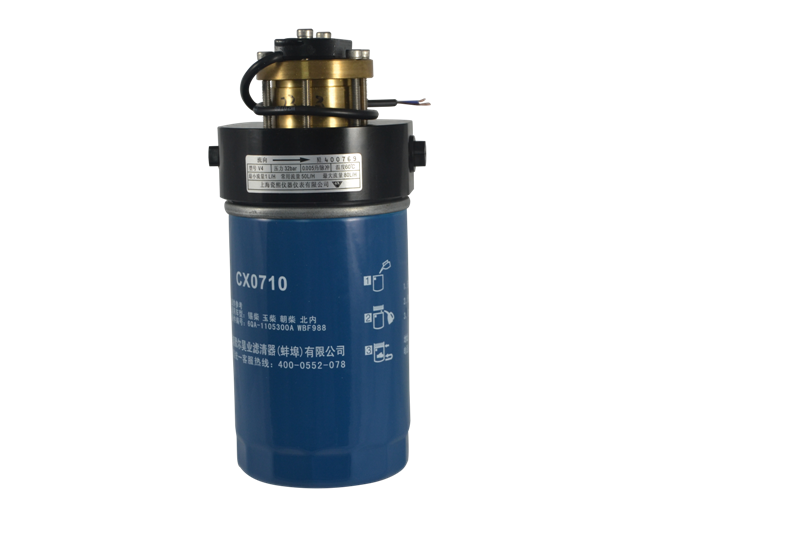

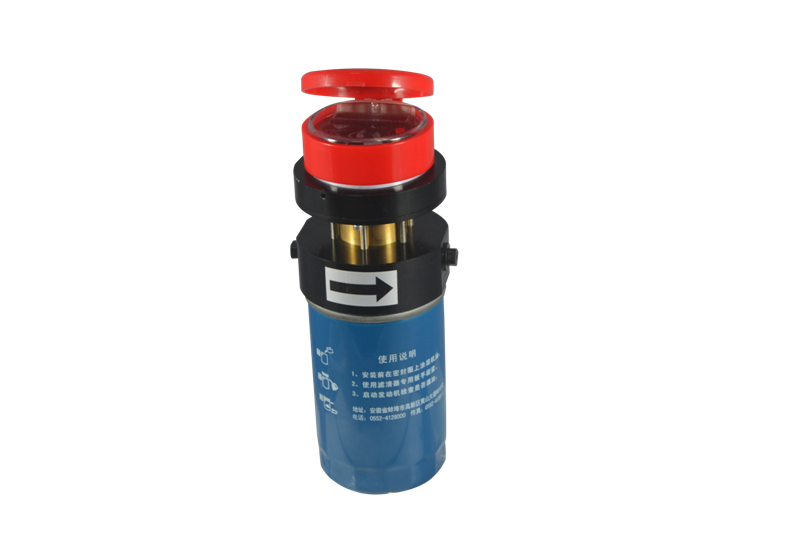

V4B-OEM-2.png  V4B-2.png



   6)The rotary piston flow meter may be with a exhaust device based on you working conditions.

         1.It has same function as air eliminator,but principle is totally different.

           2.It’s suitable for 900L/H.the capacity of chamber is 0.7L.

           3.The pressure in return line will be zero with adjustor and the pressure is also zero in chamber.

           4.Pulsation will disappear when fuel goes through the adjustor.

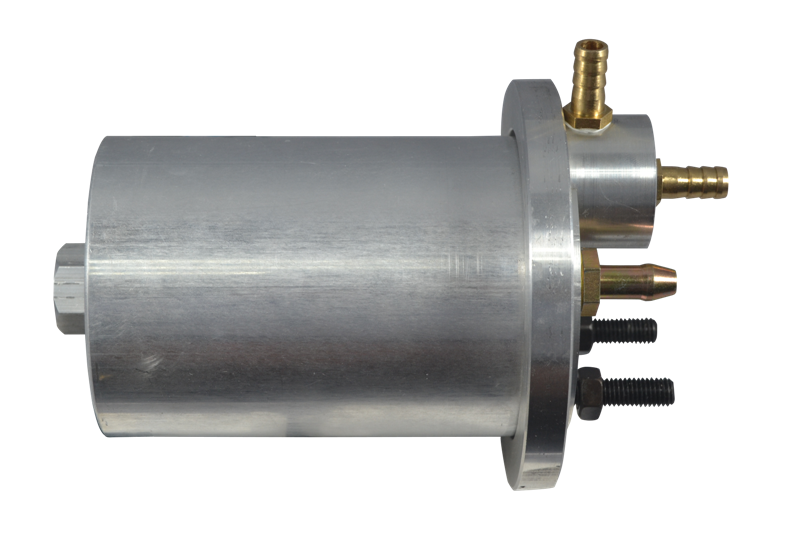

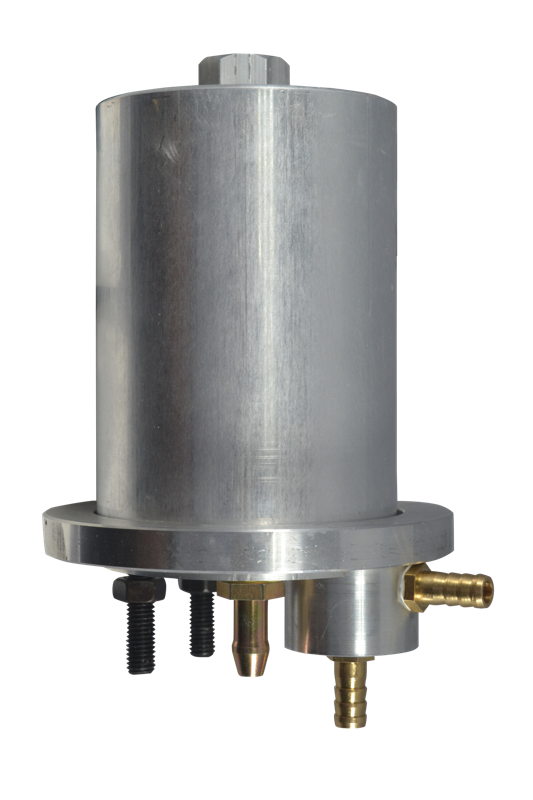

exhauxt equipment.png  exhaust equipment.png




Warranty and Service

Warranty

The manufacturer provides free warranty for 18 months, the users should be responsible for the one-way transportation fee from the customer to the factory.



Service

The manufacturer provides instrument installation for our customers, and the charges will be made according to the cost.

For any hardware failure of the instrument, we recommend that our customers send back the instrument to our factory for service, due to the fact that the instrument is made of microprocessors and it will be difficult to perform field  maintenance. Before sending back the instrument, please try to contact the factory first to make sure what the problem is.

For other operational problems, please contact our service department by telephone, fax or email and internet. In most cases, the problem could be solved immediately.



Join Us

Select the JSN rotary piston flow meter,Select the right,JSN will provide the professional service for you.

If you would like to purchase a sample to test,Pls Let us Know.
