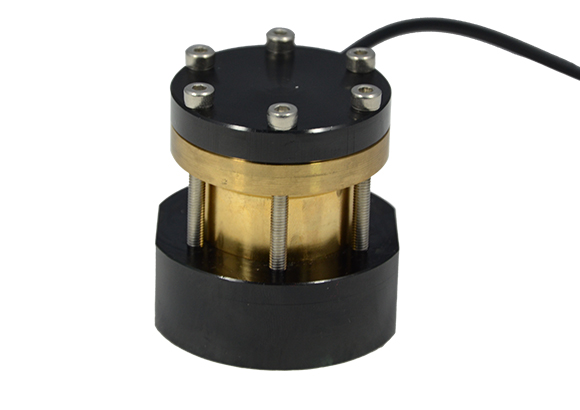

V4-OEM Volumetric flow meter

1) JSN is top 10 manufacturer to produce Rotary piston flowmeter
2) Siemens CNC system and Cutting accuracy up to 0.001mm
3) Dial is 360C rotation to easy installation and read.
4) Anti-water,anti-dust and anti-vibration.
5) National patent product: No.ZL201120213703.4
6) Working life is 5~10 years.

Function introduction Function introduction

V4-OEM Volumetric flow meter


Description

   Volumetric flow meter, as known as Positive displacement flow meter, measure volumes of fluid flowing through by counting repeatedly the filling and discharging of known fixed volumes.

  JSN volumetric flow meter is made by former Siemens engineer and also use Siemens CNC system, the cutting accuracy is up to 0.001mm. this is basic equipment that ensure JSN to produce good vlumetric flow meter. The rang ratio of JSN rotary piston flow meter can be up to 100:1, the working life is 5~10 years, the accuracy is up to 0.2% , and it’s in whole working life of rotary piston flow meter, clients can have much benefits only from this side if compare JSN rotary piston  flow meter with others. It has can measure liquid with widely viscosity, from water to 10000 cp.

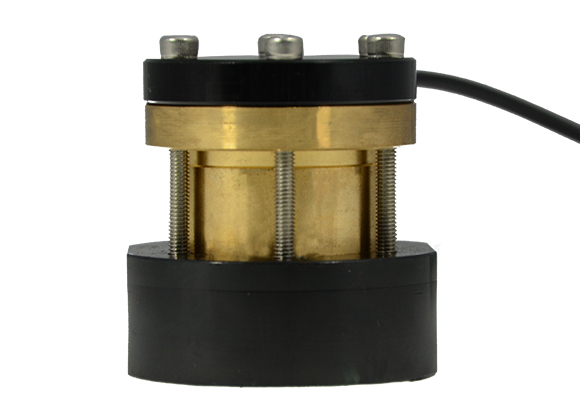

  V4-OEM volumetric flow meter-2.jpg



Parameter



  Basic parameter

Model:CX-FM-V4-OEM

Flow Range: 1~100 L/h
Accuracy: 0.5%
Temperature: -30~80C
Pressure: 32Bar
Material: brass calculate cavity
Display:Local mechanical display
Parts:Filter bowl
Pulse:Pulse(2 p/l or 1p/l)



Electrical connection

Connection for hall sensor (3 wires)

Connection for reed switch (2 wires)

Power supply:5-18VDC (customized for   3-26VDC)

Red wire: power supply

Black wire: GND

Yellow wire: signal

Model:V4/8-OEM-3,V4/8R-3,V4/8BR-3

Power supply:5-36VDC

Note:(no positive and negative difference)

Model:V4/8-OEM-2,V4/8R-2,V4/8BR-2




Feature



     1)It’s the best volumetric flow meter (counter) to manage fuel consumption. the accuracy is better than 1%.

     2)It’s our patent product and certificate is issued  by  State Intellectual Property Office, number is ZL 201120213703.4

     3)We are the leading manufacturer of  fuel consumption flow meter in China.

     4)Monitor fuel consumption in modern way by connection with GPS.

     5)The volumetric flow meter you could choosed by the power of engine.V4 suitable for less 200Kw.V8 suitable for beyond 200KW.

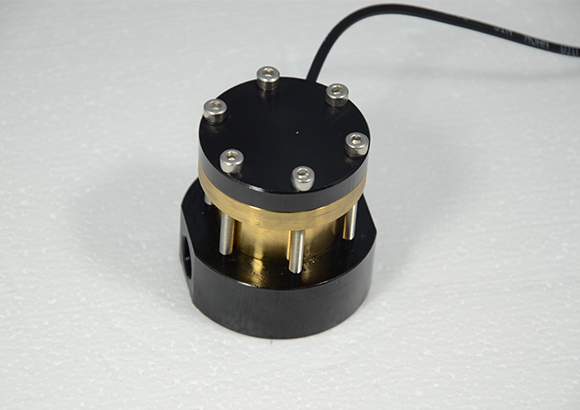

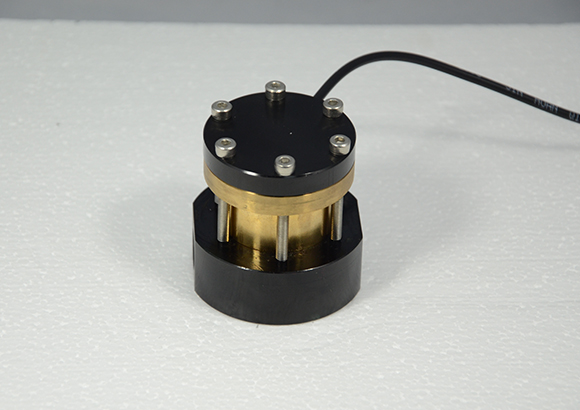

V4-OEM volumetric flow meter-4.jpg  V4-OEM volumetric flow meter-3.jpg






Warranty and service

  Warranty

The manufacturer provides free warranty for 18 months, the users should be responsible for the one-way transportation fee from the customer to the factory.




 Service

The manufacturer provides instrument installation for our customers, and the charges will be made according to the cost.

For any hardware failure of the instrument, we recommend that our customers send back the instrument to our factory for service, due to the fact that the instrument is made of microprocessors and it will be difficult to perform field  maintenance. Before sending back the instrument, please try to contact the factory first to make sure what the problem is.

For other operational problems, please contact our service department by telephone, fax or email and internet. In most cases, the problem could be solved immediately.
