Oval Gear Flow Meter

首页 > Product > Oval Gear Flow Meter > M9-SS Oval Gear Flow measurement
  • M9-SS Oval Gear Flow measurement
  • M9-SS Oval Gear Flow measurement
  • M9-SS Oval Gear Flow measurement
  • M9-SS Oval Gear Flow measurement
  • M9-SS Oval Gear Flow measurement
  • M9-SS Oval Gear Flow measurement
  • M9-SS Oval Gear Flow measurement
  • M9-SS Oval Gear Flow measurement

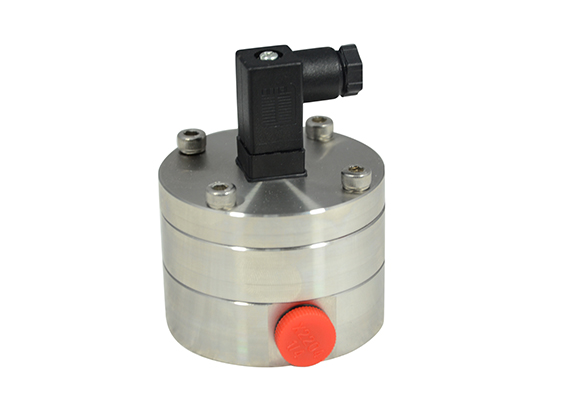

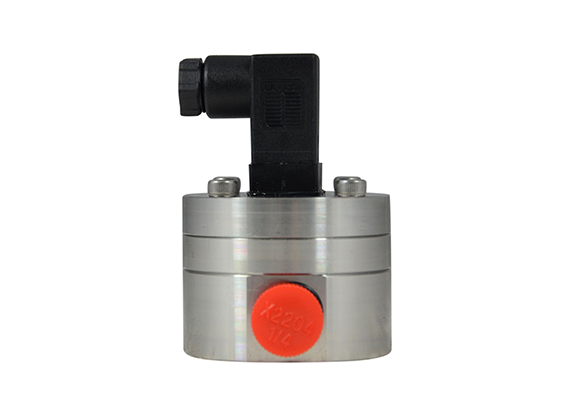

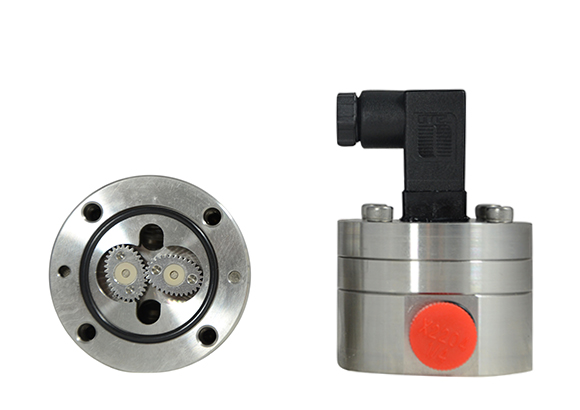

M9-SS Oval Gear Flow measurement

1) Strictly carry out ISO9001 standard&without quality complaint in 3 years
2) Working life is more 5 years and Equivalent to save 60% cost
3) Accuracy is up to 0.2%& over than 90% peers
4) Siemens CNC system and Cutting accuracy up to 0.001mm
5) Min flow only is 0.1ml/min and rarely in china and foreign
6) Special patent technology&anti-explosion

Function introduction Function introduction

Oval Gear Flow Measurement

Description

  Our oval gear flow measurement is a kind of oval gear flow meter ,along to positive displacement flow meter. there is thousands of manufacturers who can produce oval gear flow measurement. but only several manufacturer who have technology to produce oval gear flow measurement.


JSN micro flow meter offer the highest accuracy and measure for various viscosity liquid. special patent technology to measure flow from 0.1ml/min and ensure working life more 5 years.

JSN oval gear flow measurement is wildly used for various industries for precision measurement. So far it has been serviced for more 100 using condition, such as fuel oil measurement, Adhesive control ,Hydraulic life cycle testing, electrolyte dosing, natural gas odorization.

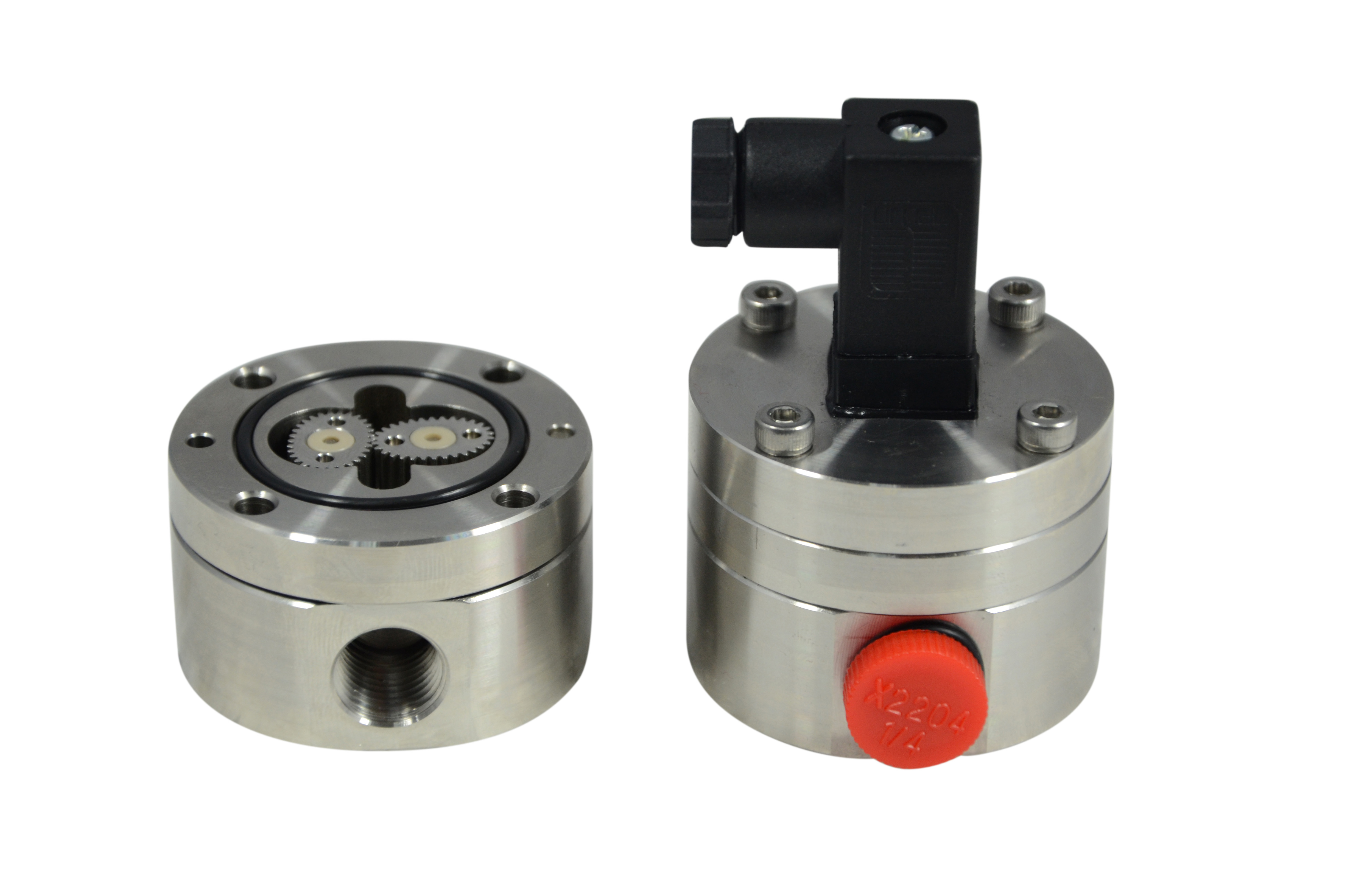

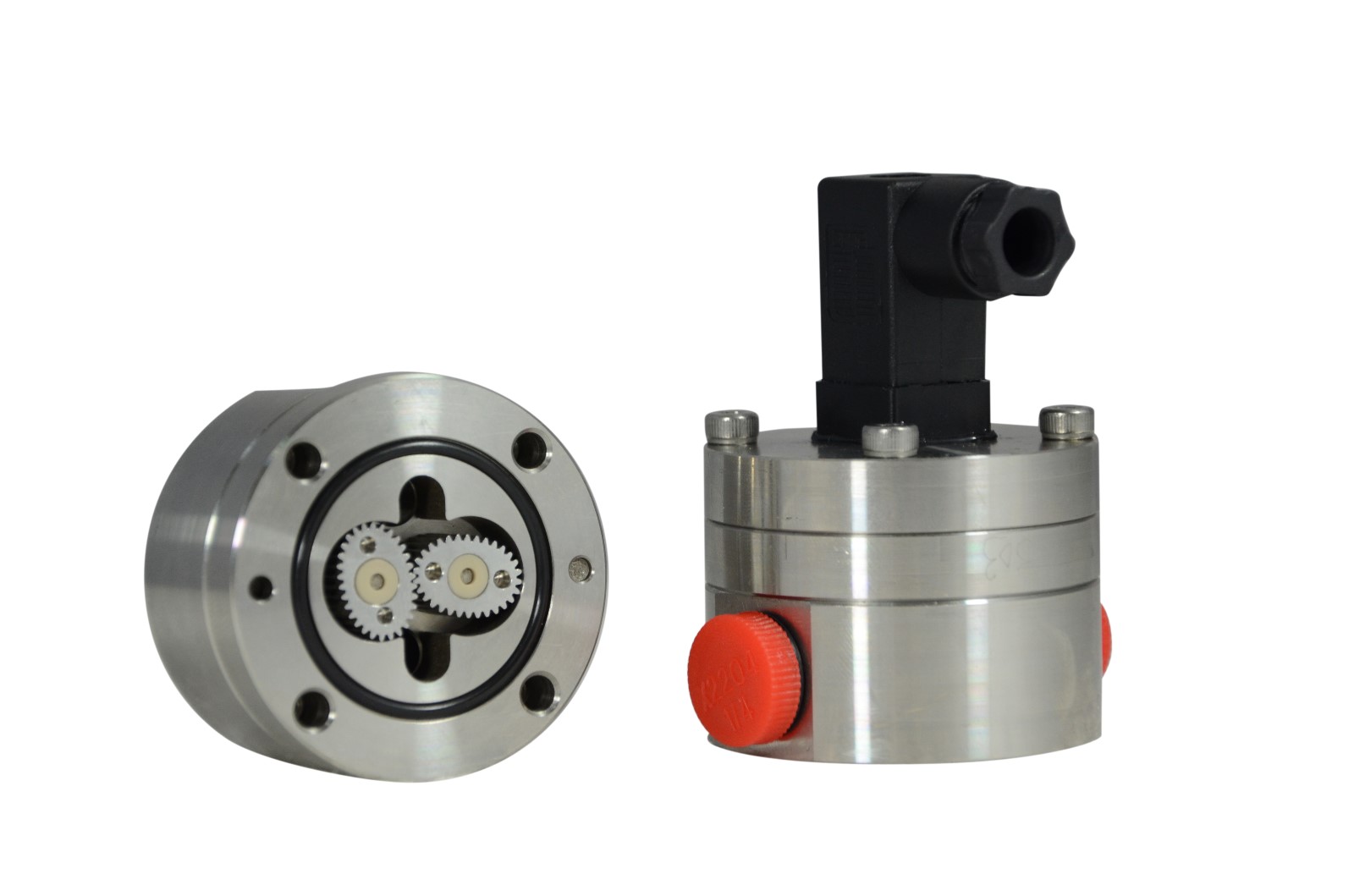

M9-SS Oval Gear Flow measurement-2.jpg   oval gear flow measurement.JPG



Parameters


Basic Parameters of oval gear flow measurement

Model: CX-M9-SS
Flow Range: 6~600 L/h
Accuracy: 0.2% or 0.5%
Temperature:-30~80C
Pressure:32Bar
Output: square-wave pulse(reed switch,2 wires;hall sensor,3 wires)
Supply: 4~26VDC
Material :all stainless steel 316L



The various medium that has been pass tested by JSN oval gear flow measurement

water

gum

chemicals

fluid

oil

dyes

liquid

adbrasive   adhesive

grease

petrochemicals

isocyanate

two-component   mixers

paints

adhesive

ink

waterbased   liquid

skydrol

brake   fluid

hydraulic   oil

sealant

gear   oil

low   viscosity

lubracating

methylbenzene

Diesel

Methanol

methyl   alcohol

medium   viscosity

polyol

high   viscosity

offset   ink

Toluene

lacquer

low   lubricity

resin

Pharmaceuticals

solvent

cavity   wax

wax

clear   lacquer

glycol

glycerin

sodium   hydroxide

caustic   soda

ethylene

diethylene

triethylene

propylene

corn   oil

cocoanut   oil

molasses

bhylene

palm   oil

olive   oil

lard   oil

cotton   oil

soy   bean oil

rosin   oil

rape   seed oil

dimethylthylsufid   DMS

additive

syrup

sugar

electrohydrodynamic

liquefied   gas

perfume

aromatic   substance

pharmaceutical

peanut   oil

fluid   food

thioether

tetrahydrothiophen   THT

acryiat-composite

Thiol

mercaptan

mercaptan-composite


The Using conditions of oval gear flow measurement

hydraulic   system

precision   dosing

2 and   3 component application

process   control

open/closed   loop control

corrosive   chemical dispensing

water   treatment

additive   injection

automobile   industry

system   monitoring

laundry   chemical

plastic   technology

print   process

chemical   batching

chemical   packaging and blending

ratio   control

consumption   measurement

oil   metering

metering   plant

hydraulic   test stand

batching   control

lacquering   plant

2   component plant

flow   rate measurement

dosing

Odorisation

closed-loop   management




Feature

  Our chief engineer is former Siemens engineer ,all CNC machines is all use Siemens system, so far the performance  of JSN oval gear flow measurement has achieved or over the highest standard through years’ effort. For example, min flow of oval gear measurement is 0.1ml/min,pulse ratio can be 1ml/pulse.max pressure is up to 1000bar, etc.


Features:

  • The M9 flow meter flow range is 6~600 L/h;

  • The standard type accuracy is 0.5%,the highest accuracy is 0.2% for some special industry;

  • The highest temperature is 200C,and the max pressure is 1000 bar;

  • The oval gear flow measurement with longer working life by the all stainless steel material.

  • Wide range of applications,such as the Hydraulic system,Lubricating industry and painting.

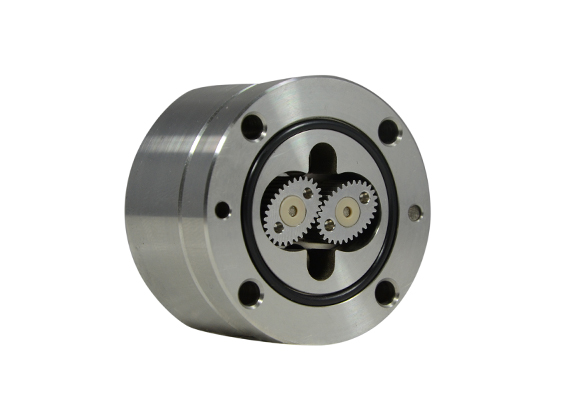

M9-SS Oval Gear Flow measurement-3.jpg    oval gear flow measurement.JPG





Selection Table

  Select the JSN,Selec the right.we will provide the professional services for you.

  Bellow is the selection table,pls writing the details of your working conditions.


  Pls confirm the bellow parameters table and Click here to let us know.

Using condition:                               Qty:

Medium


Corrosive   or Non


Min  flow


Viscosity


Normal flow


Working   temperature


Max flow


Working   pressure


If for flow monitor:

Do you need to display total flow or current ? or both ?



If for dosing:

How many litres per batch ? and how long it takes ?



What brand you use before ?
