Oval Gear Flow Meter

首页 > Product > Oval Gear Flow Meter > M5.2-AL Micro Liquid Flow Meter
  • M5.2-AL Micro Liquid Flow Meter
  • M5.2-AL Micro Liquid Flow Meter
  • M5.2-AL Micro Liquid Flow Meter
  • M5.2-AL Micro Liquid Flow Meter
  • M5.2-AL Micro Liquid Flow Meter
  • M5.2-AL Micro Liquid Flow Meter

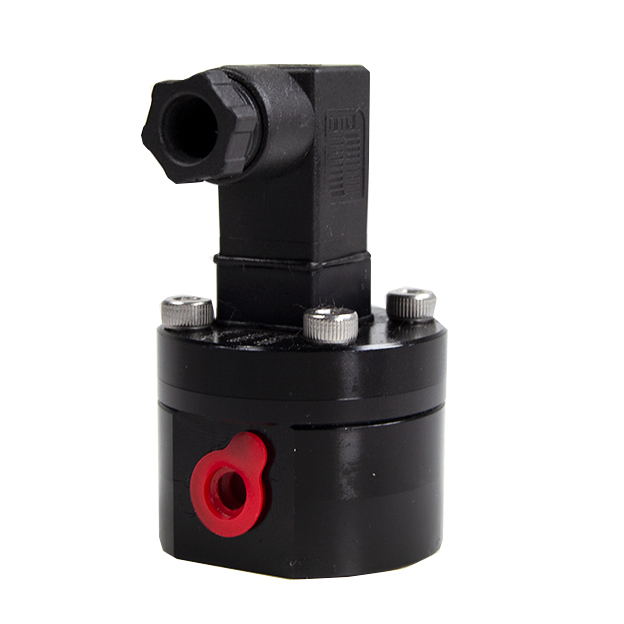

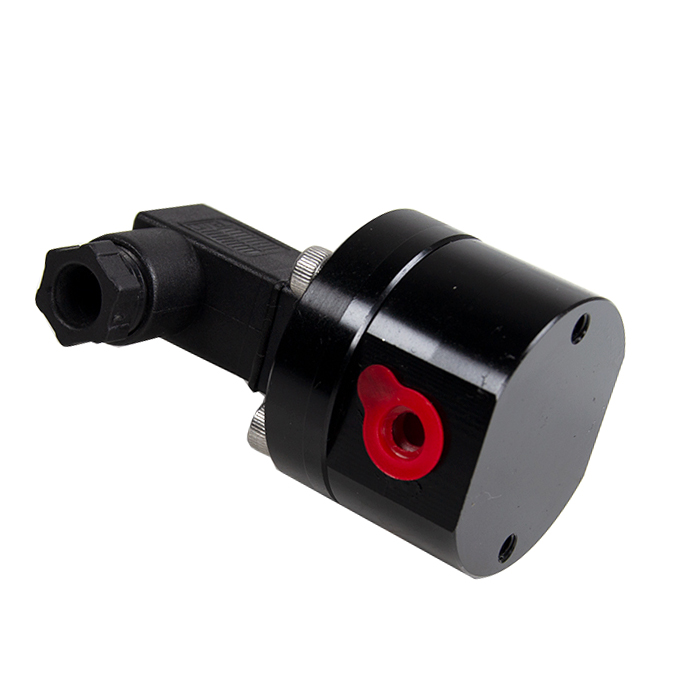

M5.2-AL Micro Liquid Flow Meter

1) Strictly carry out ISO9001 standard&without quality complaint in 3 years
2) Working life is more 5 years and Equivalent to save 60% cost
3) Accuracy is up to 0.2%& over than 90% peers
4) Siemens CNC system and Cutting accuracy up to 0.001mm
5) Min flow only is 0.1ml/min and rarely in china and foreign
6) Special patent technology&anti-explosion

Function introduction Function introduction

Micro Liquid Flow Meter

Description

  Our Micro flow meter is a kind of oval gear flow meter ,along to positive displacement flow meter. there is thousands of manufacturers who can produce oval gear flow meter. but only several manufacturer who have technology to produce micro liquid flow meter.


 JSN micro flow meter offer the highest accuracy and measure for various viscosity liquid. special patent technology to measure flow from 0.1ml/min and ensure working life more 5 years.

JSN micro liquid flow meter is wildly used for various industries for precision measurement. So far it has been serviced for more 100 using condition, such as fuel oil measurement, Adhesive control ,Hydraulic life cycle testing, electrolyte dosing, natural gas odorization.






Parameters


Basic Parameters of micro liquid flow meter:

Model: CX-M5.2-AL

Flow range: 1~400ml/min

Accuracy : 0.2% and 0.5%

Temperature: -30~80C(max 200C)

Pressure : 32Bar

Output: square-wave pulse(reed switch,2 wires;hall sensor,3 wires)

Supply: 4~26VDC

Material:Body:alumnum,Gear:PPS.



The various medium that has been pass tested by JSN micro liquid flow meter

water

gum

chemicals

fluid
oil
dyes

odorization

adbrasive adhesive
grease

petrochemicals

isocyanate

two-component   mixers
paints
adhesive

ink

waterbased liquid
skydrol

brake fluid

hydraulic oil

sealant
gear oil

low viscosity

lubracating

methylbenzene

Diesel

Methanol

methyl alcohol

medium viscosity

polyol

high viscosity

offset ink

Toluene

lacquer

low lubricity

resinPharmaceuticals

solvent

cavity waxwaxclear lacquer

glycol

glycerinsodium hydroxidecaustic soda
ethylenediethylene

triethylene

propylene

corn oil

cocoanut oil

molassesbhylene

palm oil

olive oil

lard oil

cotton oil

soy bean oil

rosin oil

rape seed oildimethylthylsufid

additive

syrup

sugarelectrohydrodynamic

liquefied gas

perfume

aromatic substancepharmaceutical

peanut oil

fluid food

thioethertetrahydrothiophen
acryiat-compositeThiolmercaptanmercaptan-composite



The Using Condition of micro liquid flow meter

hydraulic   system

precision   dosing

2 and   3 component application

process   control

open/closed   loop control

corrosive   chemical dispensing

water   treatment

additive   injection

automobile   industry

system   monitoring

laundry   chemical

plastic   technology

print   process

chemical   batching

chemical   packaging and blending

ratio   control

consumption   measurement

oil   metering

metering   plant

hydraulic   test stand

batching   control

lacquering   plant

2   component plant

flow   rate measurement

dosing

Odorisation

closed-loop   management



Features

  Our chief engineer is former Siemens engineer ,all CNC machines is all use Siemens system, so far the performance  of JSN micro liquid flow meter has achieved or over the highest standard through years’ effort.


Features:

  • M5.2-AL flow range:1~400ml/min

  • Max pressure is up to 1000bar;

  • Highest temperature about 200C;

  • 0.2% high accuracy beyond 90% peers;

  • Micro flow meter with longer working life by all stainless steel material;

  • Range ratio beyond 100:1;

  • Wide range of application,such as the hydraulic system,Lubricating industry and painting.



Selection Table

 Select JSN micro liquid flow meter, Select the Right, JSN will provide professional service for you.

 There are a Using Conditions For you.Pls writing details,Tks.

  Pls confirm the bellow table parameters and Click here to let us know.

Using condition:

Using condition:                               Qty:

Medium


Corrosive   or Non


Min   flow


Viscosity


Normal   flow


Working   temperature


Max   flow


Working   pressure


If for flow monitor:

Do   you need to display total flow or current ? or both ?



If for dosing:

How   many litres per batch ? and how long it takes ?



What   brand you use before ?
