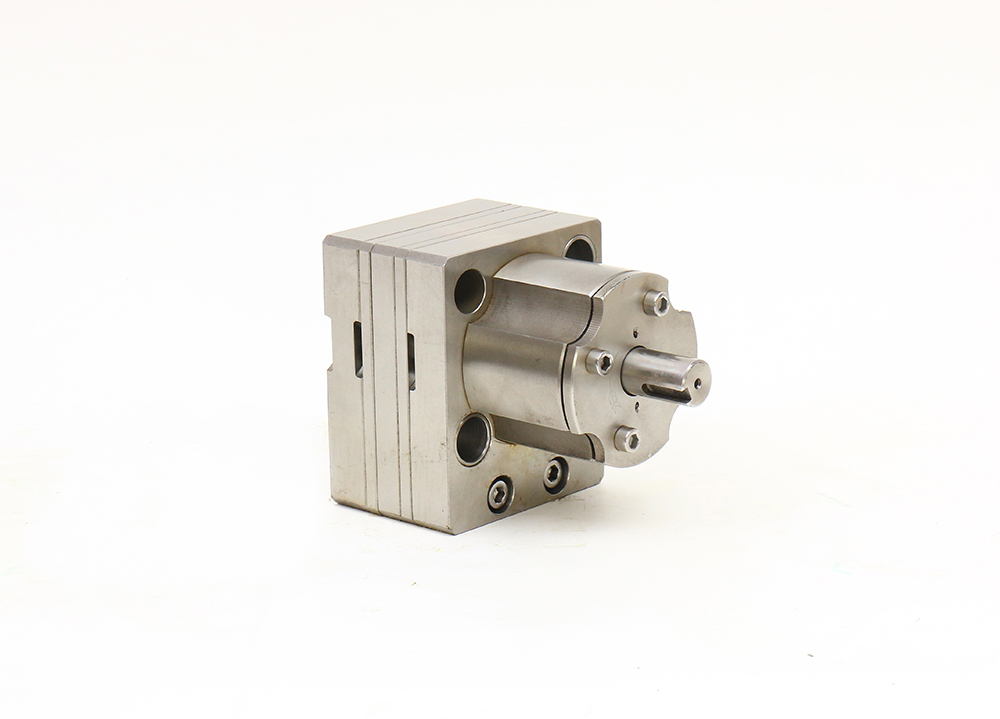

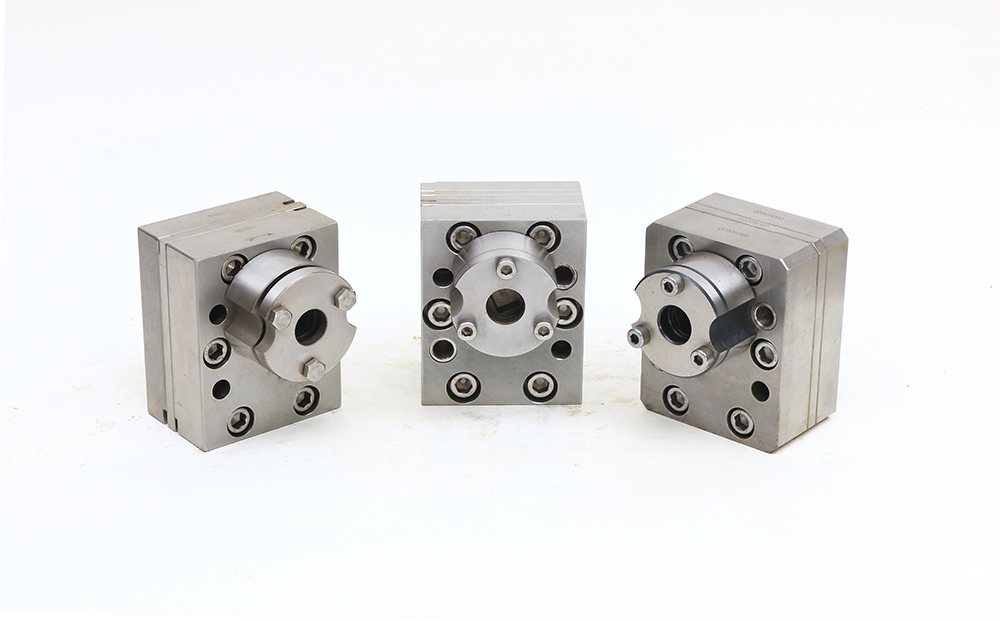

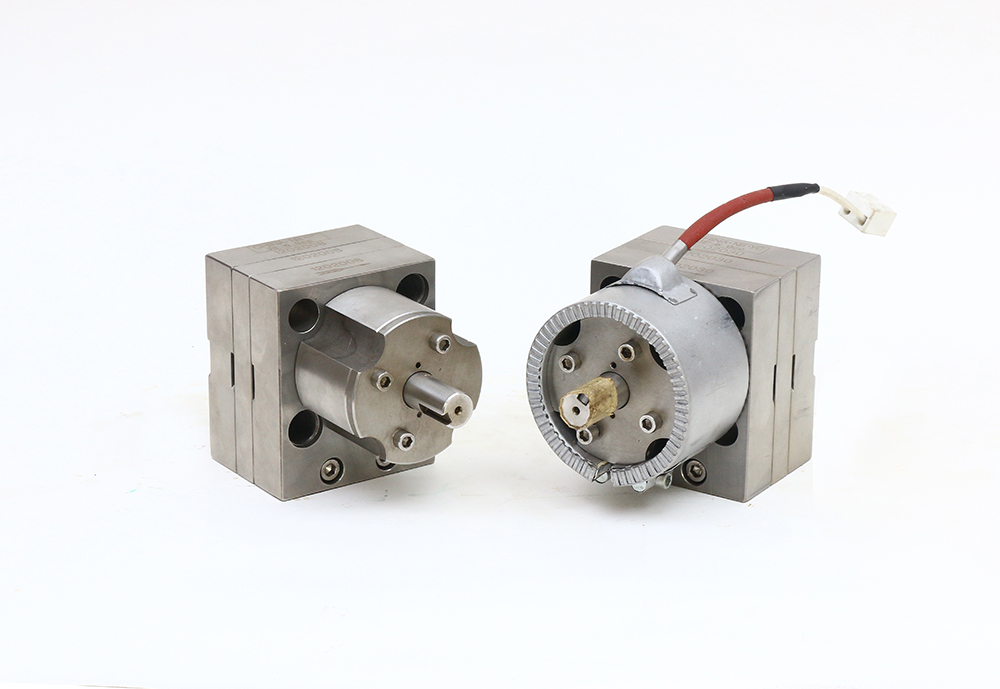

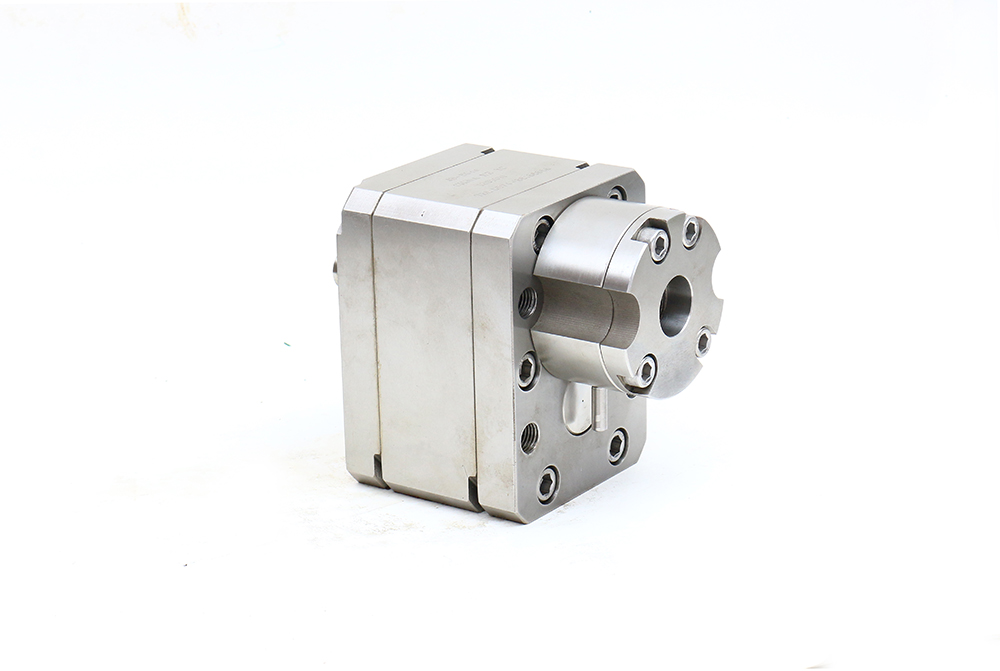

Spinning Dosing Pump

Gear Dosing Pump Metering Pump

gear metering pump for textile

Applicable medium: spun polyester, polypropylene, nylon, etc.

Applicable viscosity: 100~1000Pa.s


Function introduction Function introduction

Gear Dosing Pump Metering Pump
General parameters

Displacement(CC/R): 0.05CC,0.15CC,0.3CC,0.4CC,0.6CC,1.0CC,1.2CC,1.6CC,2CC,2.4CC,3.2CC,3.6CC,4,6CC,9CC,12CC,15CC,20CC,25CC,30CC,
40CC,50CC,60CC,70CC,80CC,90CC,100CC,120CC,150CC,180CC,200CC,250CC,300CC,350CC,

Applicable viscosity: 100~100000cp
Suitable speed: 10-100rpm (different viscosity and temperature, different speed)

Conventional pump operating temperature: 200℃/cleaning temperature: 250℃
High temperature pump operating temperature: 330℃/cleaning temperature: 450℃
(The high temperature pump is mainly used for: PET, PA, PP and other high temperature melt media, the high temperature melt pump CXP series after entering and exiting) Minimum pressure: <0.5 MPa
Maximum pressure: 0.4~30CC <8 MPa
30~350CC <25 MPa
Import and export: one in and one out / turning: clockwise

Shaft embedded installation CXG series high temperature melt pump


General parameters


Applicable medium: spun polyester, polypropylene, nylon, etc.
Applicable viscosity: 100~1000Pa.s


Suitable speed: 10-40rpm (different viscosity and temperature, different speed)
High temperature pump operating temperature: 330℃/cleaning temperature: 450℃
Minimum pressure: <0.5 MPa
Maximum pressure: 4~30CC <8 MPa
30~350CC <25 MPa
Import and export: one in and one out / turning: clockwise
(The pump body in chemical fiber high temperature industry can be drilled with heating holes)


Size chart


modelDisplacement
(CC/R)
Base height( L1 )Total length
(L)
Best selection flow rangeDrive torque (design)Optional motor
Power (asynchronous)
CXG-101075.55123.55100~400ml/min30N.M24N-m(400W/1:30)
CXG-151583.3131.3150~600ml/min36N.M24N-m(400W/1:30)
CXG-202091.1139.1200~800ml/min36N.M24N-m(400W/1:30)
CXG-252599.3147.3250~1000ml/min50N.M45N-m(750W/1:30)
CXG-3030107155300~1200ml/min70N.M45N-m(750W/1:30)
CXG-30A3091.6158.6300~1200ml/min100N.M91N-m(1500W/1:30)
CXG-404098.5165.5400~1600ml/min100N.M91N-m(1500W/1:30)
CXG-5050105.8172.8500~2000ml/min150N.M91N-m(1500W/1:30)
CXG-6060112.7179.7600~2400ml/min150N.M91N-m(1500W/1:30)
CXG-7070119.8186.8700~2800ml/min150N.M91N-m(1500W/1:30)
CXG-8080128195800~3200ml/min200N.M137(2200W/1:30)
CXG-9090135202900~3600ml/min200N.M137(2200W/1:30)
CXG-1001001422091000~4000ml/min200N.M137(2200W/1:30)


Note: The above standards are for reference only, the actual drawings shall prevail.

1. Optional servo motor, stepper motor, explosion-proof motor, brushless motor, etc., according to site requirements, we will also find technical selection.
2. It is recommended to increase the speed ratio of the gearbox under high temperature conditions
3. The highest speed in high temperature places should not exceed 50 rpm. It is recommended that the speed should not exceed 30 rpm in long-term use.


Matching selection tips:


It is recommended to match if there is a PLC:
A. Pump + coupling + reducer + servo motor;
B. Pump + coupling + stepper motor;
C. Low viscosity and low speed can choose stepping motor

If there is no PLC, it is recommended to choose: pump + coupling + frequency conversion motor + frequency converter
Explosion-proof motors must be selected for flammable and explosive places
