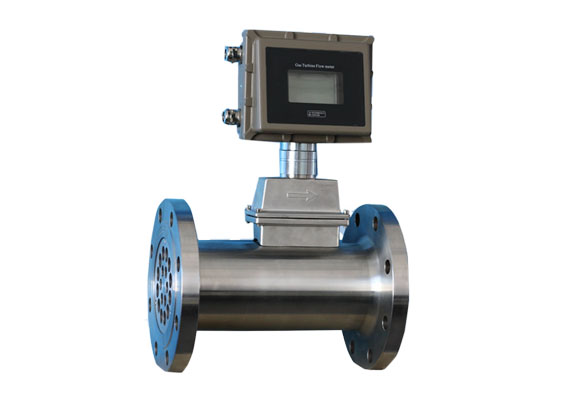

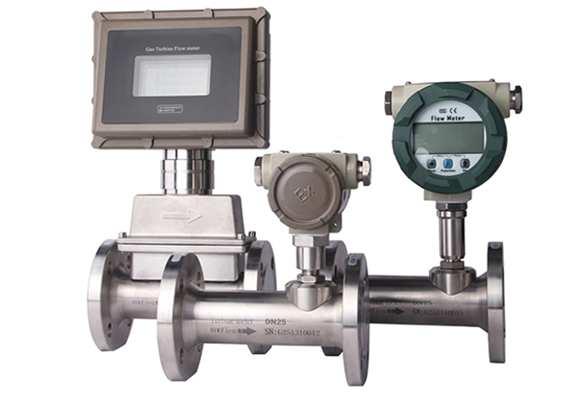

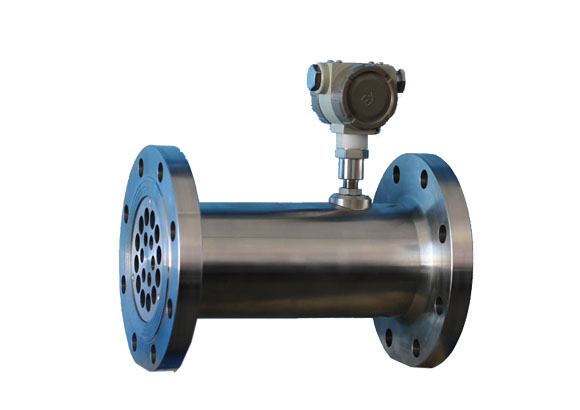

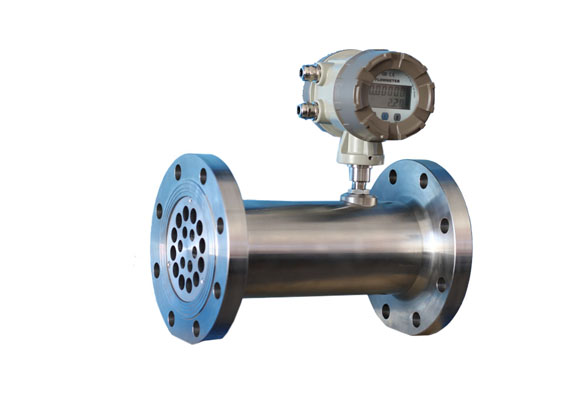

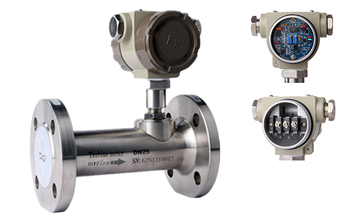

Gas Turbine Flow Meter Gas Turbine Meters

Function introduction Function introduction

Gas turbine flow meter gas turbine meters gas mass flow sensor is learned at home and abroad advanced technology to optimize the design, synthesis gas mechanics, fluid mechanics, electromagnetic theory and developed a set of temperature, pressure, flow sensor and intelligent flow totalizer in one of the new generation high-precision, high reliability gas precision measuring instruments, with excellent low and high pressure metering performance, a variety of signal output and low sensitivity to disturbance of the fluid, is widely used in natural gas, coal gas, liquefied petroleum gas, light hydrocarbon gases gas metering.



 1.1Specifications of model LRT-Idisplayer (battery supply) in the field

    Accuracy: ±0.5% for instantaneous,±0.1% for total

    Ambient temperature: -20~60℃ Medium temperature: -20~120℃ Ambient humidity: 5~100%(No dew) Case material: SUS304

    Power supply: 3.6V lithium battery (for 1 to 3 years)

    Displayer: 6 digit LCD

    Correcting instrumental error Enclosure classification: IP65

    Electrical classification: NEPSI Ex ibⅡBT4

    Weight: 1.5kg

    1.2 Specifications of model LRT-IIdisplayer in the field

    Accuracy: ±0.5% for instantaneous, ±0.1% for total

    Ambient temperature: -20~60℃

    Medium temperature: -20~120℃ Ambient humidity: 5~100%(No dew)

    Case material: Aluminum

    alloy Power supply: 18 to 24V DC

    Displayer: 6 digit LCD RATE (%),RATE, TOTAL and 2 selections alternatively.

   Output: Pulse or analog 4 to 20 mA DC

    Remember: Keep data when power off

    Correcting instrumental error Enclosure classification: IP65

    Electrical classification: NEPSI Ex ibⅡBT4

    Weight: 1.8kg
