Micro flow meter for Hydraulic Fracturing

Date:2016-11-04 source:Shanghai JSN Micro Flow Meter CO.,LTD

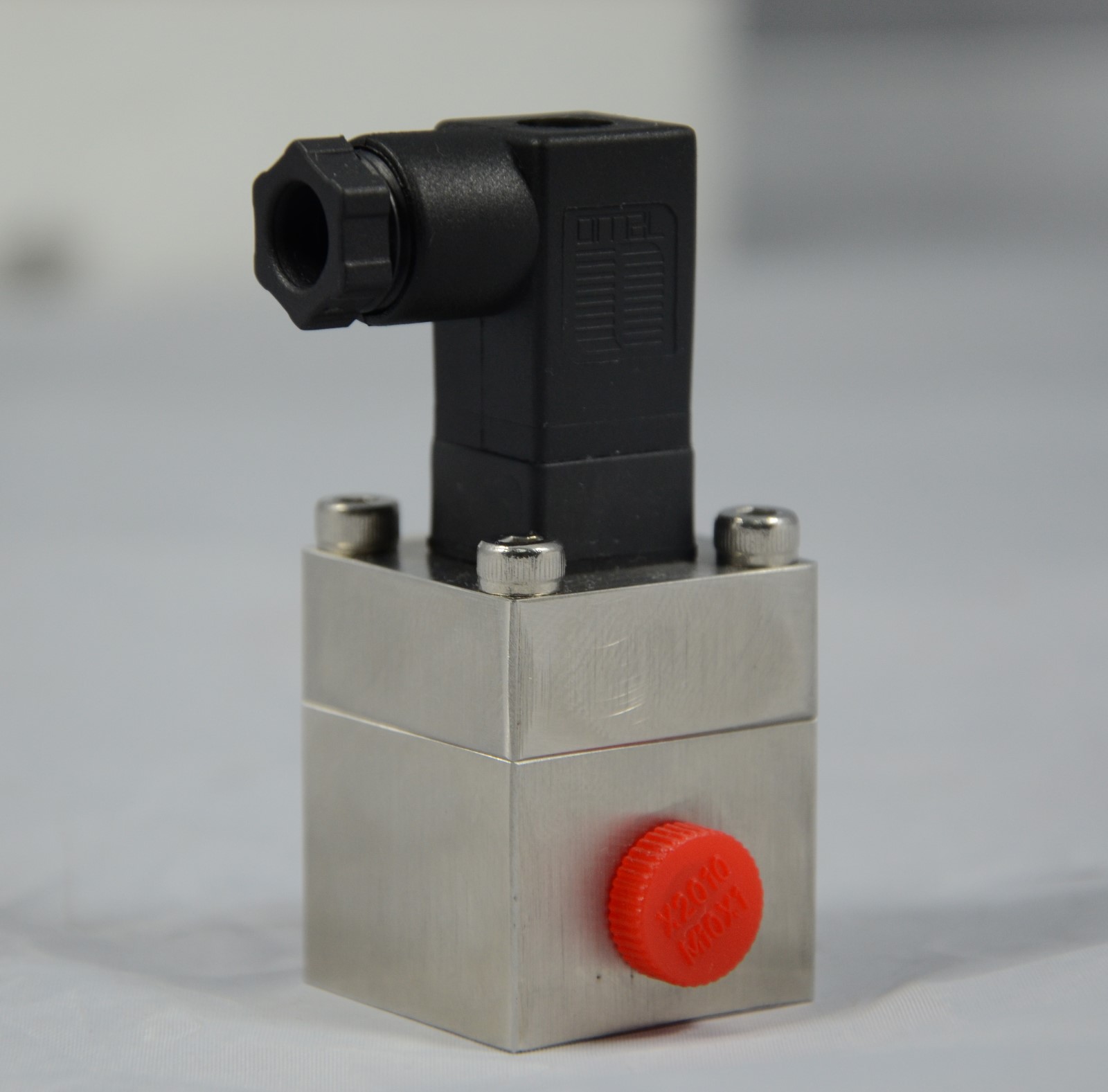

The JSN micro flow meter for Hydraulic Fracturing(downhole injection) To control chemical usage



hydraulic fracturing flow meter-1.jpg20130819054810233.jpg


  • Hydraulic fracturing is one of the main forms of natural gas exploitation. It is required to fill the shale l%ayer with a large amount of water mixed with chemical substances to make hydraulic fracturing to release natural gas. The technology has been widely adopted in the United States in 10 years, but Americans are worried that the technology will pollute the water, thus threatening the local ecological environment and the health of residents. And that this technology has brought great harm to the environment, including spontaneous combustion of tap water, causing small earthquakes and so on.


  • The JSN micro flow meter provide a high resolution and could report flow rate to the 0.1ml/min.For this flow meter,the user could continually verify an accurate downhole mixture without pump and pressure gauge.


  • The Hydraulic fracturing is formed by pumping the fluid into wellbore at a flow rate to increase the pressure of downhole.The high pressure will case the oil layer to be cruised and crashed.In order to maintain the crack state ,must squeeze some solid. into the crack.


  • The fluid could be any number of gas and liquid.usually,must be water and foaming agents,corrosion inhibitor,methanol and so on.


  • When in the working ,the pressure is increasing and produce rock chips may damage the micro flow meter.So the JSN micro flow meter's material is stainless steel 316.The max pressure of flow meters is 100Mpa.It will satisfy the user's all requirements.


  • Hydraulic Fracture usually applied to wells drilled in natural gas which exhibits low permeability.About 90% of the natural gas wells in the US use hydraulic fracturing to produce gas at economic rate.


  • Specification:

Measuring Range:min 0.3ml/min;

Accuracy:highest 0.2% ,standard type:0.5%

Max pressure:100Mpa;

Max temperature:200C;

Material:Stainless steel and Aluminum;

Size:DN2,3,5,6,9,12,25,40,50.


   If you would like to know more details and quote for a sample for micro flow meter,Pls Let us Know.
